Power Input Connectors (bottom, right)
Left Battery negative (GND)
Center Ignition (To start connect to Battery +).
Do not use in the standard PSU mode (mode P0)
Right Battery positive (+)
(A) ATX Power Output Connector 20/24 pin connector
(B) 12V-ATX power output connector 4 pin
(C) Configuration dip switches
(J5) For internal use only (do not use)
(J6) Amplifier THUMP wire harness (connects to the M4-ATX-HV pin header)
(J3) Fan Header. Positive pin is closest to "J3" marking.
(J8) USB, Motherboard ON/OFF and THUMP (Thump also available on J6)
1) GND
2) GND
3) USB D+
4) USB D-
5) Vcc
M4-ATX-HV User Guide

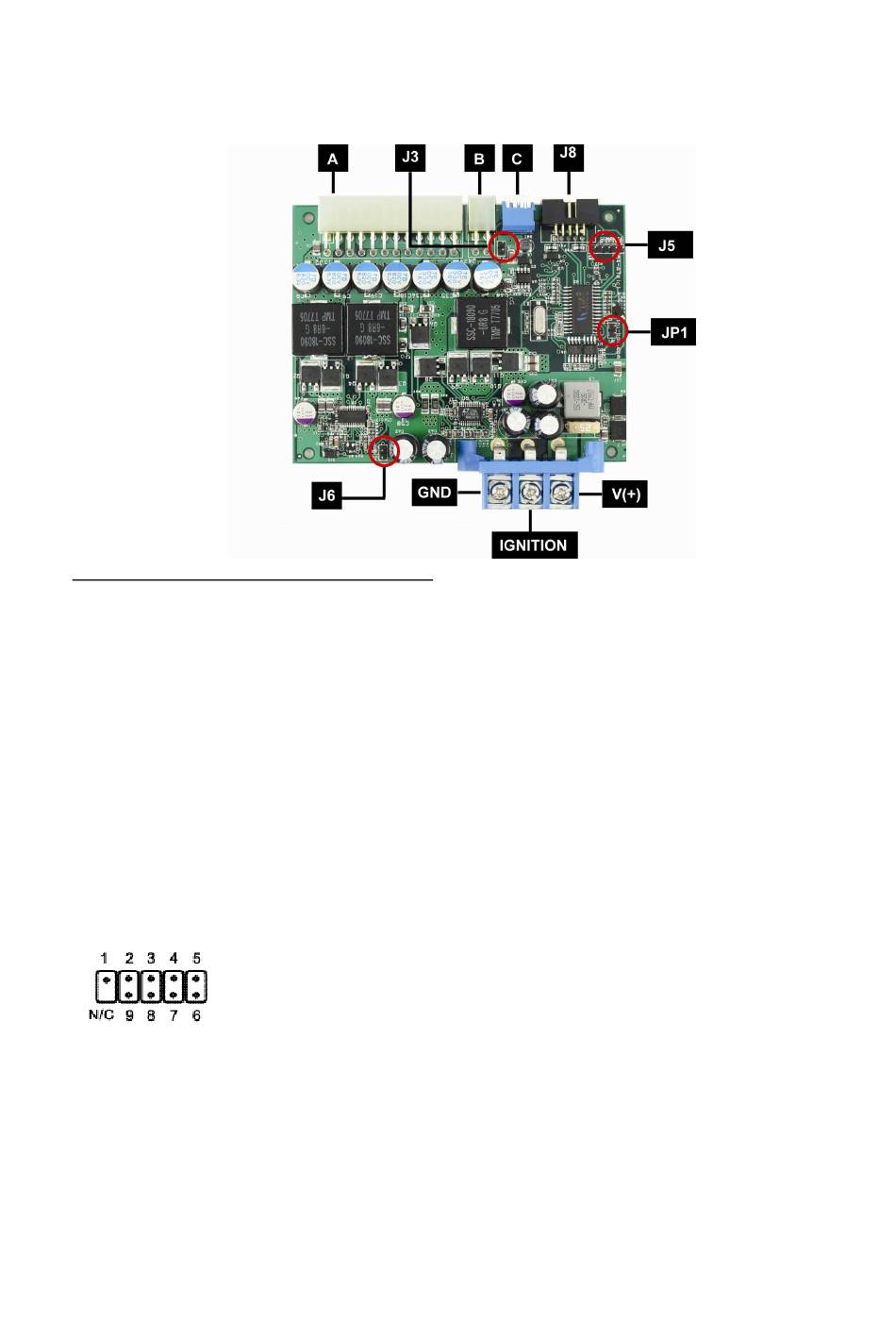

M4-ATX-HV Connection diagram

6) To Motherboard ON/OFF
7) To motherboard ON/OFF
8) Amplifier Thump
9) GND
19 N/C (key)
