100-210 IOM (JUL 09)
Page 10

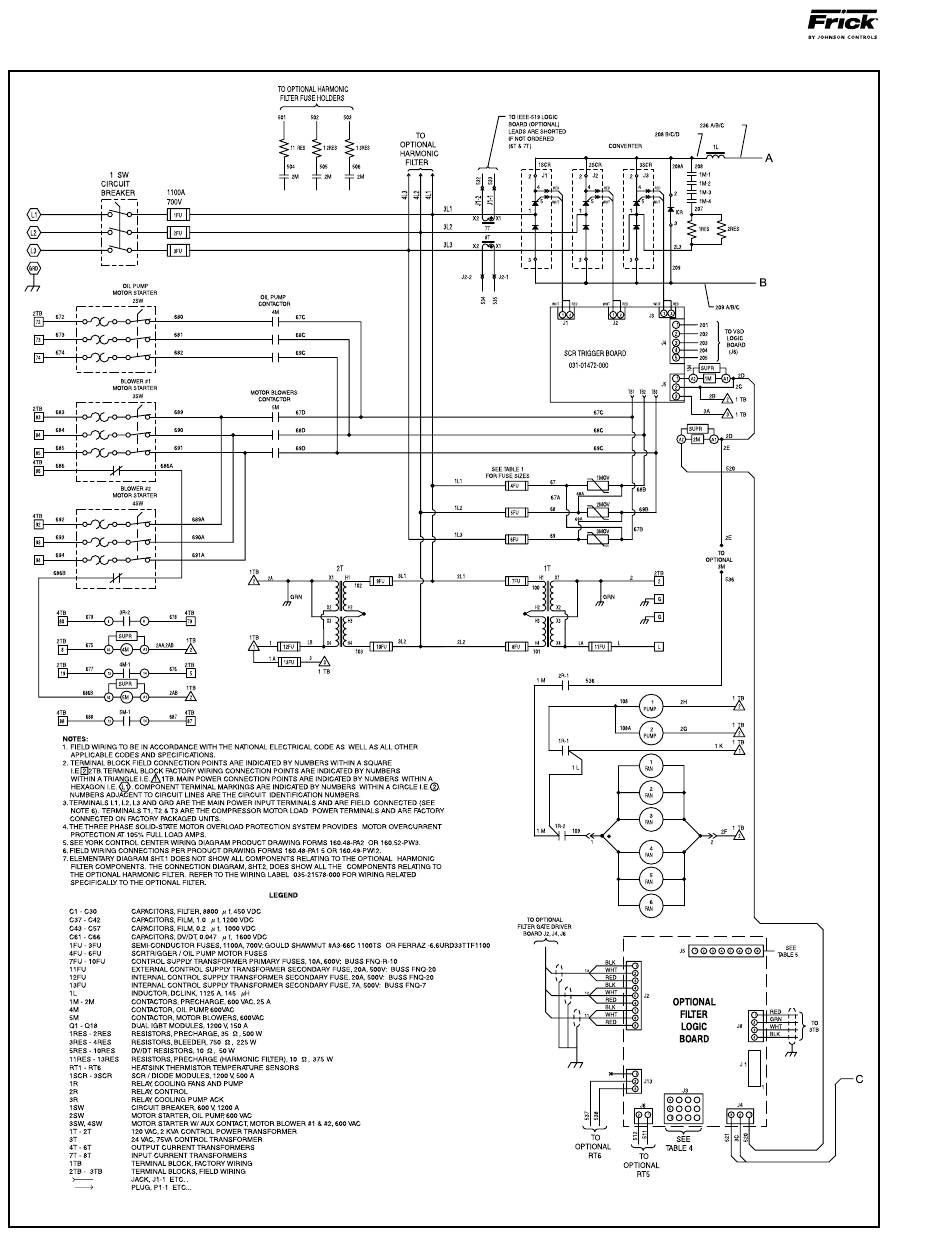

Figure 2A - Vyper
Elementary Wiring Diagram
VYPER
VARIABLE SPEED DRIVE
INSTALLATION - OPERATION - MAINTENANCE
NOTE: Drawings for specific units can be found in the door of
the Vyper
TM
Drive or check with Frick Engineering department.
