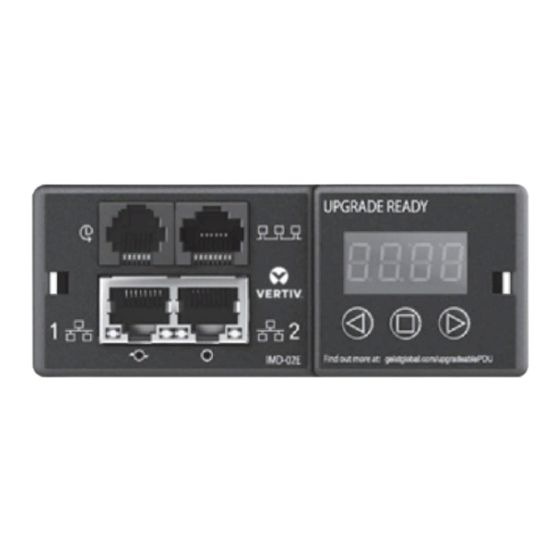

Vertiv GEIST User Manual
Hide thumbs
Also See for GEIST:
- Quick installation manual (44 pages) ,
- Replacement manual (12 pages) ,
- Installer/user manual (80 pages)
Table of Contents
Advertisement
Quick Links
TM
TM
VERTIV
GEIST
Basic Rack PDU
User Manual
Version
V1.2
Revision date
Jan. 20, 2020
BOM
31014035
Vertiv provides customers with technical
support. Users may contact the nearest
Vertiv local sales office or service center.
Copyright © 2020 by Vertiv Singapore Pte
Ltd
All rights reserved. The contents in this
document are subject to change without
notice.
Vertiv Singapore Pte Ltd
Address: 151 Lorong Chuan, Lobby D
New Tech Park, #05-04
Singapore, 556741
Homepage: www.Vertiv.com
E-mail: DPG.Warranty@vertiv.com
Advertisement
Table of Contents
Related Manuals for Vertiv GEIST
Summary of Contents for Vertiv GEIST
- Page 1 Jan. 20, 2020 31014035 Vertiv provides customers with technical support. Users may contact the nearest Vertiv local sales office or service center. Copyright © 2020 by Vertiv Singapore Pte All rights reserved. The contents in this document are subject to change without notice.
-
Page 3: Table Of Contents
2.3 Installation Instruction..............................4 2.3.1 Installation Accessories ............................4 2.3.2 Installation Pr ocedures ............................4 Chapter 3 U-Lock..................................7 3.1 Operation of U-Lock..............................7 Appendix: Identification Table for Toxic and Har mful Substances ................... 7 VERTIV GEIST Basic Rack PDU User Manual... - Page 5 ⚫If unusual phenomenon is found in the course of use of this product, the power supply should be cut -off immediately, and the cable plug should be pulled out and sent to the local authorized distribution and maintenance service agency for checking. VERTIV GEIST Basic Rack PDU User Manual...
-
Page 7: Chapter 1 Introduction
It is suitable for facilities equipped w ith surge protection at the main electrical service entrance. The unique U-Lock structure of Geist PDU (applicable to select SKUs) ensures the locking of the socket and improves the reliability of equipment pow er supply. Color grouping of U-lock can effectively improve the management efficiency of the equipment for data center managers, and different chassis colors are available for selection (subject to availability). -
Page 8: Model And Specification
C13 x 4+C19 x4 ntal C1648L 14240245 IEC60309 C13 x10+C19 x2 C1647L 14240244 None 978×51×51 C13 x20+C19 x4 C1650L 14240246 Vertical C13 x20+C19 x4 无 C1651 14240256 1683×51×51 Hardwired C13 x20+C19 x4 C1652 14240257 VERTIV GEIST Rack PDU User Manual... -
Page 9: Chapter 2 Installation
(1)Select the appropriate tool to mount the equipment on the rack. For examples of installation, refer section 2.3 Installation Diagram. (2)Plug the PDU into appropriately rated and protected branch circuit receptacles. (3)During PDU installation, ensure that the device is pow ered off. (4)Do not connect PDU-pow ered devices before installation. VERTIV GEIST Basic Rack PDU User Manual... -
Page 10: Installation Instruction
0U model is suitable for vertical installation. Vertical installation is divided into tw o types: Tool-less and bracket mounting. 1. Tool-less installation 1) Insert the tw o mounting buttons (installed before delivery) on the rear of the PDU into the suitable installation hole on the cable organizer of the cabinet. VERTIV GEIST Rack PDU User Manual... - Page 11 Align the installation holes of the tw o 0U brackets w ith the higher row round hole of the top crossbeam and the upper row round hole of the bottom crossbeam respectively and install the PDU on to the crossbeam of the VE rack using four self-tapping screw s. VERTIV GEIST Basic Rack PDU User Manual...
- Page 12 T he installation with bolt is only suit able for the 0U PDU with the length is 1683mm During PDU installation, the input cable of the PDU need to be secured to the rack or cable manager and cannot be left suspended. VERTIV GEIST Rack PDU User Manual...
-
Page 13: Chapter 3 U-Lock
Chapter 3 U-Lock Chapter 3 U-Lock This chapter introduces the function of unique colored U-lock of Geist PDU. This feature is applicable to select SKUs only. 3.1 Operation of U-Lock The plug w ill be locked by the unique U-lock design w hen inserted in the socket, w ithout any additional action. - Page 14 SJ/T-11363-2006. Vertiv Co., Ltd. has been committed to the design and manufacturing of environmentally -friendly products, it will reduce and eventually eliminate the hazardous substances in the products through unremitting efforts in research. However, limited by the curr ent technical level, the following parts still contain hazardous substances due to the lack of reliable substitute or mature solution: The cable head contains lead.
