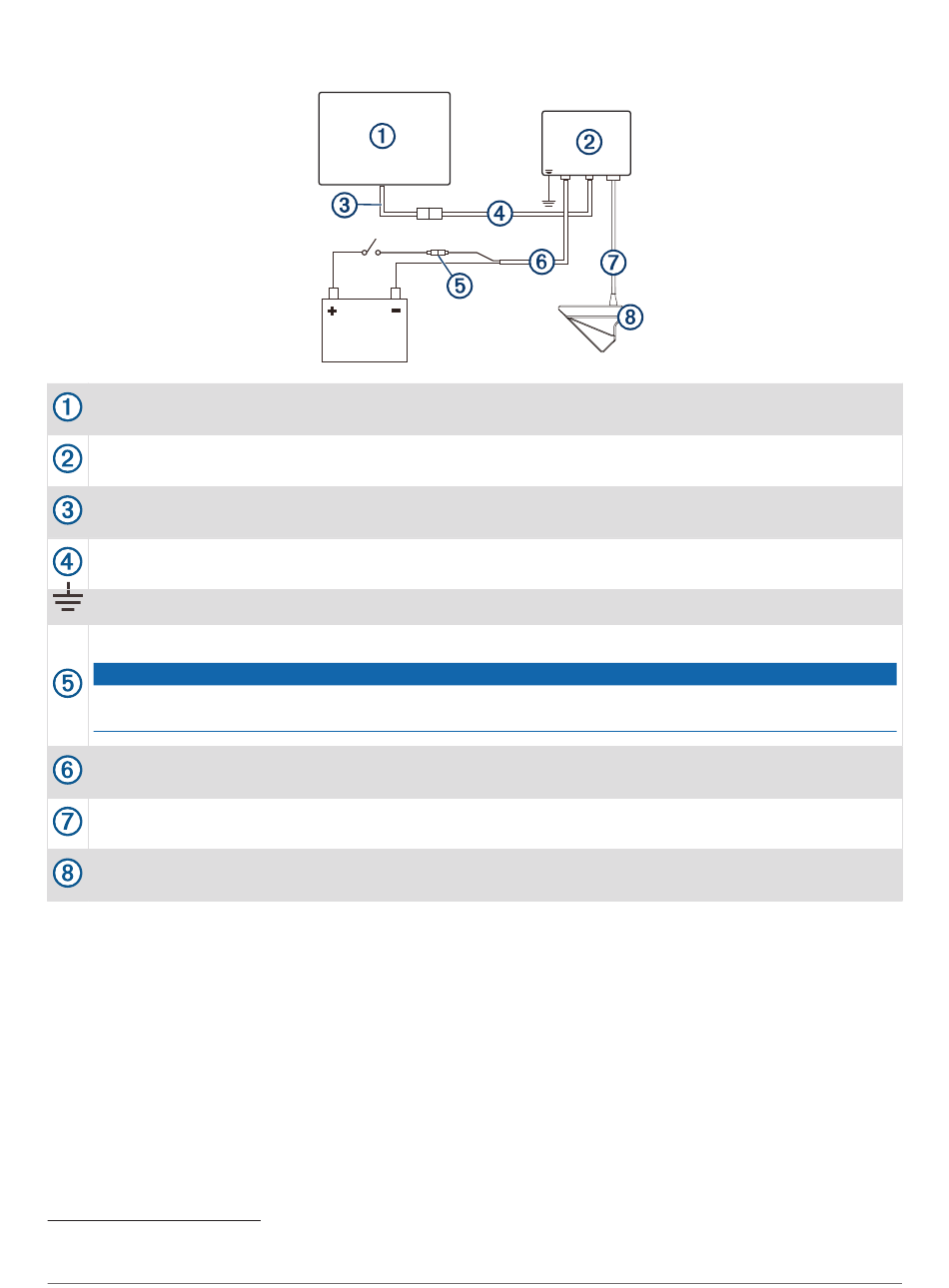

Installation Diagram
Compatible Garmin chartplotter
Panoptix LiveScope GLS 10 sonar module
Garmin Marine Network adapter cable (Garmin part number 010-12531-01)
Garmin Marine Network cable, small connector to NETWORK port
Water ground
7.5 A, fast-acting fuse
Do not remove the fuse. Removing the fuse may cause the device to malfunction and will void the
warranty.
Panoptix LiveScope GLS 10 power cable to POWER port
Transducer cable to XDCR port
Panoptix LiveScope LVS32 transducer
1
For chartplotter connections, refer to your chartplotter installation instructions.
10
1
NOTICE
