IEI Technology POS-6614 User Manual

Lpx intel pentium 4, celeron d, lga775 800mhz fsb with dual gbe, sata, ide, usb 2.0, 6 x com
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
POS-6614 Motherboard
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POS-6614 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology POS-6614

Summary of Contents for IEI Technology POS-6614

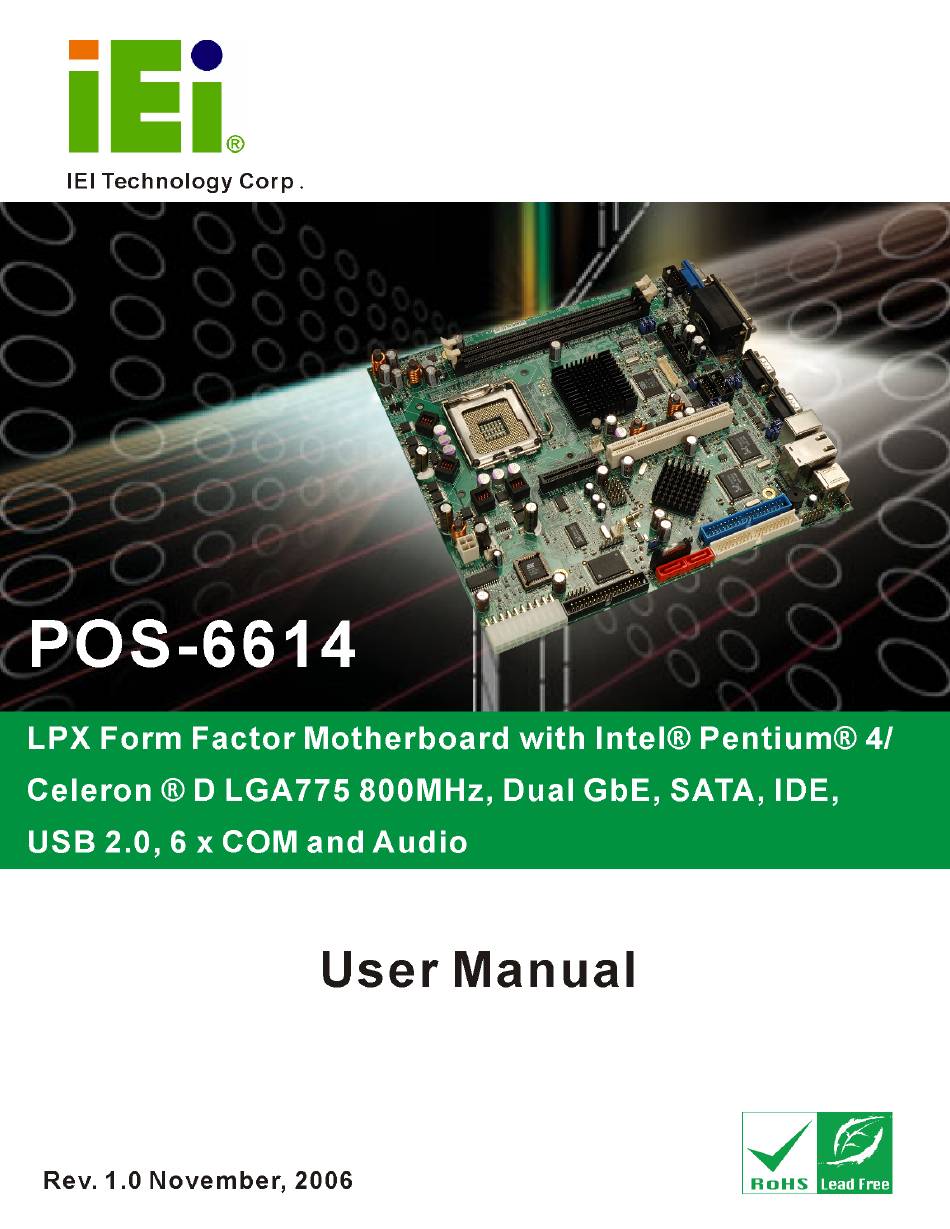

  • Page 1 POS-6614 Motherboard Page 1...
  • Page 2 POS-6614 Motherboard REVISION HISTORY Title POS-6614 Motherboard Revision Number Description Date of Issue Initial release November 2006 COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.

  • Page 3: Table Of Contents

    VERVIEW 1.1.1 POS-6614 Motherboard Benefits..............16 1.1.2 POS-6614 Motherboard Features..............17 1.2 POS-6614 M ..............18 OTHERBOARD VERVIEW 1.2.1 POS-6614 Motherboard Connectors ............... 19 1.2.2 Technical Specifications................... 20 DETAILED SPECIFICATIONS ................23 2.1 CPU S ......................24 UPPORT ® ®...
  • Page 4 2.23.2 Optional Accessory Items................38 CONNECTORS AND JUMPERS ................. 39 3.1 P ..............40 ERIPHERAL NTERFACE ONNECTORS 3.1.1 POS-6614 Motherboard Layout............... 40 3.1.2 Peripheral Interface Connectors ..............41 3.1.3 External Interface Connectors................. 43 3.1.4 Onboard Jumpers..................... 44 3.2 I ..............44 NTERNAL...
  • Page 5 NSTALLATION ONSIDERATIONS 4.1.1 Anti-static Precautions..................88 4.1.2 Installation Notices ..................88 4.2 U ......................89 NPACKING 4.2.1 Unpacking Precautions..................89 4.2.2 Checklist......................90 4.3 POS-6614 M .............. 90 OTHERBOARD NSTALLATION 4.4 S LGA775 CPU I ..............92 OCKET NSTALLATION 4.4.1 CPU Selection:....................92 4.4.1.1 CPU Installation..................
  • Page 6 POS-6614 Motherboard 4.5.7 COM# RS-232 Serial Port Installation............102 4.5.8 COM2 RS-422/485 Serial Port Installation........... 102 4.5.9 Floppy Disk Drive (FDD) Installation ............103 4.5.10 IDE Disk Drive Connector................103 4.5.11 Inverter (LCD Backlight) Installation............104 4.5.12 IrDA (Infrared Data Association) Device Installation ........ 104 4.5.13 LVDS Device Installation................
  • Page 7 POS-6614 Motherboard 5.1.5 BIOS Menu Bar....................117 5.2 M ........................118 5.3 A ......................119 DVANCED 5.3.1 CPU Configuration..................121 5.3.2 IDE Configuration ..................123 5.3.2.1 IDE Master, IDE Slave ................127 5.3.3 Floppy Configuration..................132 5.3.4 Super IO Configuration.................. 133 5.3.5 Hardware Health Configuration..............139 5.3.6 ACPI Configuration ..................
  • Page 8 POS-6614 Motherboard BIOS MENU OPTIONS..................205 A.1 BIOS C ................206 ONFIGURATION PTIONS WATCHDOG TIMER ..................209 ADDRESS MAPPING..................213 C.1 I/O A ....................214 DDRESS C.2 1 MB M ................. 214 EMORY DDRESS C.3 IRQ M .................... 215 APPING ABLE C.4 DMA C...
  • Page 9 Figure 3-20 SMBus Connector Locations..............72 Figure 3-21 USB Connector Locations ..............73 Figure 3-22 VGA Connector Location ...............74 Figure 3-23: POS-6614 Motherboard External Peripheral Connector Panel ..75 Figure 3-24: Ethernet Connector ................77 Figure 3-25: Dual PS/2 Pinouts and Configuration..........78 Page 9...
  • Page 10 POS-6614 Motherboard Figure 3-26: Serial Communications Connector Pinout Locations .......80 Figure 3-27: Parallel Connector Pinout Locations...........82 Figure 3-28: Audio Connector Locations..............83 Figure 3-29: VGA Connector ..................84 Figure 4-1: Intel LGA775 Socket ................92 Figure 4-2: Remove the CPU Socket Protective Shield...........93 Figure 4-3: Open the CPU Socket Load Plate ............94...
  • Page 11 POS-6614 Motherboard Figure 6-14: Audio Driver Install Shield Wizard Starting ........188 Figure 6-15: Audio Driver Setup Preparation ............189 Figure 6-16: Audio Driver Welcome Screen ............190 Figure 6-17: Audio Driver Software Configuration ..........190 Figure 6-18: Audio Driver Digital Signal ..............191 Figure 6-19: Audio Driver Installation Begins ............
  • Page 12 POS-6614 Motherboard List of Tables Table 1-1: Technical Specifications ................21 Table 2-1: Supported CPUs..................24 Table 2-2: Power Consumption .................37 Table 3-1: Peripheral Interface Connectors..............42 Table 3-2: External Interface Connectors ..............43 Table 3-3: Onboard Jumpers ..................44 Table 3-4: ATX 12V Power Connector Pinouts............45 Table 3-5: ATX Power Connector Pinouts ..............47...
  • Page 13 POS-6614 Motherboard Table 3-26: Ethernet Connector Pinouts..............77 Table 3-27: Ethernet Connector LEDs...............78 Table 3-28: Keyboard Connector Pinouts ..............79 Table 3-29: Mouse Connector Pinouts..............79 Table 3-30: RS-232 Mode COM1, COM2 Connector Pinouts........80 Table 3-31: COM2 RS-422 Mode Connector Pinouts ..........81 Table 3-32: COM2 RS-485 Mode Connector Pinouts ..........81 Table 3-33: Parallel Connector Pinouts ..............82...
  • Page 14 POS-6614 Motherboard List of BIOS Menus BIOS Menu 1: Main ....................118 BIOS Menu 2: Advanced..................120 BIOS Menu 3: CPU Configuration................121 BIOS Menu 4: IDE Configuration ................123 BIOS Menu 5: IDE Master and IDE Slave Configuration........127 BIOS Menu 6: Floppy Configuration ..............

  • Page 15: Introduction

    POS-6614 Motherboard Chapter Introduction Page 15...

  • Page 16: Pos-6614 Motherboard Overview

    ATX compatible industrial computer in a 220mm x 235mm profile. It also contains two DDR DIMM sockets that supports up to 2GB of memory size. The POS-6614 is designed for system manufacturers, integrators, and VARs that want performance, reliability, and quality at a reasonable price.

  • Page 17: Pos-6614 Motherboard Features

    POS-6614 Motherboard 1.1.2 POS-6614 Motherboard Features The POS-6614 motherboard features are listed below: Complies with LPX form factor Complies with RoHS Supports LGA775 Intel® Pentium® 4/Celeron® D CPU Supports a maximum front side bus (FSB) speed up to 800MHz Supports up to 2GB of DDR-333/400MHz DDR DIMM socket memory...

  • Page 18: Pos-6614 Motherboard Overview

    POS-6614 Motherboard 1.2 POS-6614 Motherboard Overview Figure 1-1: POS-6614 Motherboard Overview (Connector Side) Figure 1-2: POS-6614 Motherboard Overview (Solder Side) Page 18 IEI ® Technology, Corp.

  • Page 19: Pos-6614 Motherboard Connectors

    4 x Serial port connectors 3 x USB 2.0 connectors 1 x VGA connector The POS-6614 motherboard has the following connectors on the board external interface: 1 x Dual USB connector 1 x Dual RJ-45 Ethernet connector 1 x PS/2 Keyboard/Mouse combo connector...

  • Page 20: Technical Specifications

    POS-6614 Motherboard 1.2.2 Technical Specifications The POS-6614 motherboard technical specifications are listed in Table 1-1. Detailed descriptions of each specification can be found in Chapter 2. SPECIFICATION DESCRIPTION CPU Supported Intel® Pentium® 4 LGA775 Intel® Celeron ® D LGA775 Chipsets...

  • Page 21: Table 1-1: Technical Specifications

    POS-6614 Motherboard SPECIFICATION DESCRIPTION Power Management Supports Advanced Configuration and Power Interface (ACPI) Specifications Revision 1.0 Hardware Monitoring Cooling fan, temperature and system voltages Operating Minimum: 0ºC (32°F) Temperature Maximum: 60°C (140°F) Physical Dimensions 220mm x 235mm (width x length) Audio Interfaces AC ‘97 2.3 Realtek ALC655...
  • Page 22 POS-6614 Motherboard THIS PAGE IS INTENTIONALLY LEFT BLANK Page 22 IEI ® Technology, Corp.

  • Page 23: Detailed Specifications

    POS-6614 Motherboard Chapter Detailed Specifications Page 23...

  • Page 24: Cpu Support

    POS-6614 Motherboard 2.1 CPU Support Table 2-1 lists the CPUs supported by the POS-6614 motherboard. Mfg. Model Max. Speed L2 Cache Max. FSB Socket Intel® Pentium® 4 3.40GHz 800MHz LGA 775 Intel® Celeron® D 3.33GHz 256KB 533MHz LGA 775 Table 2-1: Supported CPUs ®...

  • Page 25: Sis661Cx Northbridge Chipset

    POS-6614 Motherboard The following two sections (Section 2.2.2 and Section 2.2.3) list some of the features of the SiS661CX and the SiS966 chipsets. For more information on these two chipsets please refer to the SiS website. 2.2.2 SiS661CX Northbridge Chipset...

  • Page 26: Sis966 Southbridge Chipset

    POS-6614 Motherboard 2.2.3 SiS966 Southbridge Chipset The SiS966 southbridge chipset comes with the following features: SiS MuTIOL® 1G Delivering 1GB/s Bandwidth Proprietary Interconnect between SiS north bridge and SiS966 Bi-Directional 16 bit Data Bus at 133MHz x4 mode Integrated PCI Express Controller...

  • Page 27: Data Flow

    POS-6614 Motherboard 2.3 Data Flow Figure 2-1 shows the data flow between the two onboard chipsets and other components installed on the Motherboard and described in the following sections of this chapter. Figure 2-1: Data Flow Block Diagram Page 27...

  • Page 28: Graphics Support

    LCD highest resolution mode: 1600x1200x32@ 60NI 2.5 Memory Support The POS-6614 CPU has two 184-pin dual inline memory module (DIMM) sockets and supports up to two un-buffered DDR DIMMs with the following specifications: Maximum RAM: 2GB (1GB module in each slot)

  • Page 29: Pci Bus Interface Support

    POS-6614 Motherboard 2.6 PCI Bus Interface Support The PCI bus on the POS-6614 Motherboard has the following features: 33MHz Revision 2.3 is implemented Up to six external bus masters are supported Maximum throughput: 133MB/sec Master devices: Maximum of six with three implemented...

  • Page 30: Drive Interfaces

    4 x IDE devices 2 x SATA drives 2.8.1 CompactFlash Device The POS-6614 motherboard has one Type II CompactFlash adapter used to adapt Type II CompactFlash and CF+ cards for use in Type II (5 mm thick) PCMCIA card slots. 2.8.2 FDD Interface The POS-6614 motherboard supports one 2.88 MB, 1.44MB, 1.2MB, 720KB, or 360KB floppy...

  • Page 31: Serial Ports

    2.12 PCI Interfaces The POS-6614 motherboard offers one PCI Slot Expansion Module for board expansion. 2.13 BIOS The POS-6614 Motherboard uses a licensed copy of AMI BIOS. The features of the flash BIOS used are listed below: SMIBIOS (DMI) compliant...

  • Page 32: Pxe: Pre-Boot Execution Environment

    POS-6614 Motherboard 2.14 PXE: Pre-Boot Execution Environment PXE is an open industry standard developed by a number of software and hardware vendors. IEI BIOS PXE feature allows a workstation to boot from a server on a network by receiving a pre-OS agent prior to booting the operating system on the local hard drive.
  • Page 33 POS-6614 Motherboard General Meet LPC Spec. 1.01 Support LDRQ#(LPC DMA), SERIRQ (serial IRQ) Include all the features of Winbond I/O W83877TF Integrate Hardware Monitor functions Compliant with Microsoft PC98/PC99 Hardware Design Guide Support DPM (Device Power Management), ACPI Programmable configuration settings...
  • Page 34 POS-6614 Motherboard Maximum baud rate up to 921k bps for 14.769 MHz and 1.5M bps for 24 Infrared Support IrDA version 1.0 SIR protocol with maximum baud rate up to 115.2K bps Support SHARP ASK-IR protocol with maximum baud rate up to 57,600 Support Consumer IR with Wake-Up function.

  • Page 35: Audio Codec

    128-pin PQFP 2.16 Audio Codec The POS-6614 has an integrated REALTEK ALC655 CODEC. The ALC655 CODEC is a 16-bit, full-duplex AC'97 Rev. 2.3 compatible six-channel audio CODEC designed for PC multimedia systems, including host/soft audio and AMR/CNR-based designs. Some of the features of the codec are listed below.

  • Page 36: Real Time Clock

    Configuration Panel for improved user convenience 2.17 Real Time Clock 256-byte battery backed CMOS RAM 2.18 System Monitoring The POS-6614 Motherboard is capable of self-monitoring various aspects of its operating status including: CPU, chipset, and battery voltage, +3.3V, +5V, and +12V RPM of cooling fans CPU and board temperatures (by the corresponding embedded sensors) 2.19 Operating Temperature and Temperature Control...

  • Page 37: Power Consumption

    POS-6614 Motherboard 2.21 Power Consumption Table 2-2 shows the power consumption parameters for the POS-6614 motherboard when a Intel® Pentium® 4 processor with a clock speed of 3.0GHz, an L2 cache of 256MB and a FSB 800MHz is running with a 2GB DDR400 module.

  • Page 38: Packaged Contents And Optional Accessory Items

    OS and applications can use. 2.23 Packaged Contents and Optional Accessory Items 2.23.1 Package Contents When you unpack the POS-6614 Motherboard you should find the following components. 1 x POS-6614 Single Board Computer 1 x ATA66/100 Flat Cable...

  • Page 39: Connectors And Jumpers

    POS-6614 Motherboard Chapter Connectors and Jumpers Page 39...

  • Page 40: Peripheral Interface Connectors

    The locations of the peripheral interface connectors are shown in Section 3.1.1. A complete list of all the peripheral interface connectors can be seen in Section 3.1.2. 3.1.1 POS-6614 Motherboard Layout Figure 3-1 shows the onboard peripheral connectors, external interface peripheral connectors and onboard jumpers on the front side of the card.

  • Page 41: Peripheral Interface Connectors

    POS-6614 Motherboard Figure 3-2: Connector and Jumper Locations (Solder Side) 3.1.2 Peripheral Interface Connectors Table 3-1 shows a list of the peripheral interface connectors on the POS-6614 motherboard. Detailed descriptions of these connectors can be found in Section 3.2. Connector...

  • Page 42: Table 3-1: Peripheral Interface Connectors

    POS-6614 Motherboard Connector Type Label SYS_FAN2 Digital Input/Output connector 10-pin header DIO1 FDD connector 34-pin header FDD1 Front Panel connector 14-pin header F_PANEL1 IDE Interface connector 40-pin box header SIDE1, PIDE1 Inverter connector 5-pin wafer connector INVERTER1 IrDA connector 6-pin header...

  • Page 43: External Interface Connectors

    POS-6614 Motherboard 3.1.3 External Interface Connectors Table 3-2 lists the external interface connectors on the POS-6614 motherboard. Detailed descriptions of the connectors can be found in Section 3.3. Connector Type Label Reset button Pushbutton RST_SW1 USB connector Dual USB port...

  • Page 44: Onboard Jumpers

    3.2 Internal Peripheral Connectors Internal peripheral connectors on the motherboard are only accessible when the motherboard is outside of the chassis. This section has complete descriptions of all the internal, peripheral connectors on the POS-6614 motherboard. Page 44 IEI ® Technology, Corp.

  • Page 45: Atx 12V Power Connector

    POS-6614 Motherboard 3.2.1 ATX 12V Power Connector CN Label: CPU12V1 CN Type: 4-pin connector CN Location: See Figure 3-3 CN Pinouts: See Table 3-4 The ATX 12V Power connector connects 12V ATX power to the motherboard. Figure 3-3: ATX 12V Power Connector Location...

  • Page 46: Atx Power Connector

    POS-6614 Motherboard 3.2.2 ATX Power Connector CN Label: ATX20 CN Type: 20-pin connector CN Location: See Figure 3-4 CN Pinouts: See Table 3-5 The ATX Power connector connects ATX power to the motherboard. Figure 3-4: ATX Power Connector Location Page 46...

  • Page 47: Table 3-5: Atx Power Connector Pinouts

    POS-6614 Motherboard DESCRIPTION DESCRIPTION +3.3Vdc +3.3Vdc +3.3Vdc -12Vdc +5Vdc PS-ON +5Vdc PWR-OK -5Vdc +5VSby +5Vdc +12Vdc +5Vdc Table 3-5: ATX Power Connector Pinouts Page 47...

  • Page 48: Audio Cd In Connector

    POS-6614 Motherboard 3.2.3 Audio CD In Connector CN Label: CD_IN1 CN Type: 4-pin header CN Location: See Figure 3-5 CN Pinouts: See Table 3-6 AC’97 Audio signals are interfaced through a 4-pin flat-cable connector to the CD drive. Figure 3-5: Audio CD In Connector Location...

  • Page 49: Audio Line Out Connector

    POS-6614 Motherboard 3.2.4 Audio Line Out Connector CN Label: LINE_OUT1 CN Type: 4-pin header CN Location: See Figure 3-6 CN Pinouts: See Table 3-7 AC’97 Audio signals are interfaced through a 4-pin flat-cable connector. An audio 4-pin-to-phone-jack adapter kit is required.

  • Page 50: Compactflash Connector

    POS-6614 Motherboard 3.2.5 CompactFlash Connector CN Label: CN Type: 50-pin socket CN Location: See Figure 3-7 CN Pinouts: See Table 3-8 The CompactFlash connector is used to adapt Type II Compact Flash and CF+ cards for use in Type II (5 mm thick) PCMCIA card slots.

  • Page 51: Table 3-8: Compactflash Connector Pinouts

    POS-6614 Motherboard DESCRIPTION DESCRIPTION GROUND VCC-IN CHECK1 DATA 3 DATA 11 DATA 4 DATA 12 DATA 5 DATA 13 DATA 6 DATA 14 DATA 7 DATA 15 HDC_CS0# HDC_CS1 GROUND IOR# IOW# INTERRUPT VCC_COM VCC_COM CSEL HDD_RESET IORDY VCC_COM HDD_ACTIVE#...

  • Page 52: Cooling Fan Connectors

    POS-6614 Motherboard 3.2.6 Cooling Fan Connectors CN Label: CPU_FAN1, SYS_FAN1, SYS_FAN2 CPU_FAN1: 4-pin wafer connector CN Type: SYS_FAN1, SYS_FAN2: 3-pin wafer connector CN Location: See Figure 3-8 CN Pinouts: See Table 3-9 The CPU_FAN1, SYS_FAN1 and SYS_FAN2 cooling fan connectors provides a 12V current to the cooling fans.

  • Page 53: Digital Input/Output Connector

    POS-6614 Motherboard CPU_FAN1 SYS_FAN1, SYS_FAN2 Rotation Signal +12V +12V Rotation Signal Control Table 3-9: Cooling Fan Connectors Pinouts 3.2.7 Digital Input/Output Connector CN Label: DIO1 CN Type: 10-pin header (2x5 pins) CN Location: See Figure 3-9 CN Pinouts: See Table 3-10 The digital input output (DIO) connector is managed through the Winbond W83697HG super I/O chip.

  • Page 54: Fdd Connector

    POS-6614 Motherboard DESCRIPTION DESCRIPTION Output 3 Output 2 Output 1 Output 0 Input 3 Input 2 Input 1 Input 0 Table 3-10: Digital Input/Output Connector Pinouts 3.2.8 FDD Connector CN Label: FDD1 CN Type: 34-pin box header (2x17 pins) CN Location:...

  • Page 55: Front Panel Connector

    POS-6614 Motherboard DESCRIPTION DESCRIPTION GROUND REDUCE WRITE GROUND GROUND GROUND INDEX# GROUND MOTOR ENABLE A# GROUND DRIVE SELECT B# GROUND DRIVE SELECT A# GROUND MOTOR ENABLE B# GROUND DIRECTION# GROUND STEP# GROUND WRITE DATA# GROUND WRITE GATE# GROUND TRACK 0#...

  • Page 56: Figure 3-11: Front Panel Connector Location

    POS-6614 Motherboard Figure 3-11: Front Panel Connector Location DESCRIPTION PIN DESCRIPTION Power LED Speaker GROUND PWRBTN- Speaker PWRBTN Reset- RESET HDDLED HDLED- Table 3-12: Front Panel Connector Pinouts Page 56 IEI ® Technology, Corp.

  • Page 57: Ide Interface Connectors

    POS-6614 Motherboard 3.2.10 IDE Interface Connectors CN Label: PIDE1 (Primary), SIDE2 (Secondary) CN Type: 40-pin box header (2x20 pins) CN Location: See Figure 3-12 CN Pinouts: See Table 3-13 The IDE Interface connectors provide connectivity for four IDE devices. Figure 3-12: IDE Interface Connectors Locations...

  • Page 58: Table 3-13: Ide Interface Connectors Pinouts

    POS-6614 Motherboard DESCRIPTION DESCRIPTION RESET# DATA 7 DATA 8 DATA 6 DATA 9 DATA 5 DATA 10 DATA 4 DATA 11 DATA 3 DATA 12 DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 IDE DRQ IOW#...

  • Page 59: Inverter Connector

    POS-6614 Motherboard 3.2.11 Inverter Connector CN Label: INVERTER1 CN Type: 5-pin header CN Location: See Figure 3-13 CN Pinouts: See Table 3-14 The Inverter connector connects to the LCD backlight. Figure 3-13: Inverter Connector Location DESCRIPTION LCD_ADJ +12V BL_EN Table 3-14: Inverter Connector Pinouts...

  • Page 60: Irda Connector

    CN Pinouts: See Table 3-15 POS-6614 has a built-in IrDA port which supports Serial Infrared (SIR) or Amplitude Shift Keyed IR (ASKIR) interface. To use the IrDA port, configure the FIR or ASKIR model in the Peripheral Setup COM2 in BIOS. The normal RS-232 COM2 will be disabled.

  • Page 61: Lvds Connector

    POS-6614 Motherboard 3.2.13 LVDS Connector CN Label: LVDS1 CN Type: 30-pin crimp connector CN Location: See Figure 3-15 CN Pinouts: See Table 3-16 The LVDS connector connects to a one or two channel (18-bit or 24-bit) LVDS panel. NOTE: The supplied voltage can be selected via the J_VLVDS1 jumper.

  • Page 62: Table 3-16: Lvds Connector Pinouts

    POS-6614 Motherboard DESCRIPTION DESCRIPTION GND1 GND2 A_Y0 A_Y0# A_Y1 A_Y1# A_Y2 A_Y2# A_CK A_CK# A_Y3 A_Y3# GND3 GND4 B_Y0 B_Y0# B_Y1 B_Y1# B_Y2 B_Y2# B_CK B_CK# B_Y3 B_Y3# GND5 GND6 VCC1 VCC2 VCC3 VCC4 Table 3-16: LVDS Connector Pinouts Page 62...

  • Page 63: Pci Connector

    POS-6614 Motherboard 3.2.14 PCI Connector CN Label: PCI1 CN Type: 120-pin PCI socket CN Location: See Figure 3-16 CN Pinouts: See Error! Reference source not found. Use the PCI slot connector to add auxiliary boards. Page 63...

  • Page 64: Figure 3-16: Pci Connector Location

    POS-6614 Motherboard Figure 3-16: PCI Connector Location Page 64 IEI ® Technology, Corp.

  • Page 65: Table 3-17: Pci Connector Pinouts

    POS-6614 Motherboard Side B Side A Side B Side A Reserved Ground AD[17] AD[16] +12V C/BE[2]# +3.3V Ground Ground FRAME# IRDY# Ground +3.3V TRDY# INTA# DEVSEL# Ground INTB# INTC# PCIXCAP STOP# INTD# LOCK# +3.3V PRSNT1# Reserved PERR# SMBCLK Reserved +3.3V...

  • Page 66: Pcie Connector

    POS-6614 Motherboard 3.2.15 PCIe Connector CN Label: PCIE1 CN Type: 64-pin PCIe socket CN Location: See Figure 3-17 CN Pinouts: See Table 3-18 Use the PCIe slot connector to add auxiliary boards. Page 66 IEI ® Technology, Corp.

  • Page 67: Figure 3-17: Pcie Connector Location

    POS-6614 Motherboard Figure 3-17: PCIe Connector Location Side B Connector Side A Connector Name Description Name Description Hot plug presence +12v +12 volt power PRSNT#1 detect +12v +12 volt power +12v +12 volt power RSVD Reserved +12v +12 volt power...

  • Page 68: Table 3-18: Pcie Connector Pinouts

    POS-6614 Motherboard Side B Connector Side A Connector Name Description Name Description JTAG1 +TRST# +3.3v +3.3 volt power 3.3Vaux 3.3v volt power +3.3v +3.3 volt power WAKE# Link Reactivation PWRGD Power Good RSVD Reserved Ground Ground REFCLK+ Reference Clock Differential pair...

  • Page 69: Sata Drive Port

    POS-6614 Motherboard 3.2.16 SATA Drive Port CN Label: S_ATA1, S_ATA2 CN Type: SATA disk drive port CN Location: See Figure 3-18 CN Pinouts: See Table 3-19 The SATA drive ports provide connectivity to SATA drives with a maximum data transfer rate of 1.5Gb/s.

  • Page 70: Serial Communications Connector

    CN Label: COM3, COM4, COM5, COM6 CN Type: 10-pin box headers (2x5 pins) CN Location: See Figure 3-19 CN Pinouts: See Table 3-20 The POS-6614 offers four ten-pin box headers for RS-232 serial connections. Page 70 IEI ® Technology, Corp.

  • Page 71: Figure 3-19 Serial Communications Connector Locations

    POS-6614 Motherboard COM3 CONNECTOR (COM4 – COM6 SIMILAR) Figure 3-19 Serial Communications Connector Locations All COM connectors provide RS-232 serial connections with the following pinouts. DESCRIPTION DESCRIPTION Table 3-20: RS-232 Serial Communications Connector Pinouts Page 71...

  • Page 72: Smbus Connector

    POS-6614 Motherboard 3.2.18 SMBus Connector CN Label: J_SMB1 CN Type: 4-pin headers CN Location: See Figure 3-20 CN Pinouts: See Table 3-21 The SMBus is a two-wire bus used for communication with low-bandwidth devices on a motherboard such as power related chips and temperature sensors.

  • Page 73: Usb Connectors

    CN Pinouts: See Table 3-22 In addition to the dual USB connector on the external interface panel, the POS-6614 has three on-board 8-pin headers that provide connectivity to six USB 2.0 ports. The USB ports are used for I/O bus expansion.

  • Page 74: Vga Connector

    POS-6614 Motherboard 3.2.20 VGA Connector CN Label: JVGA1 CN Type: 10-pin box header (2x5 pins) CN Location: See Figure 3-22 CN Pinouts: See Table 3-23 The VGA connector is an internal VGA connector. Figure 3-22 VGA Connector Location DESCRIPTION DESCRIPTION...

  • Page 75: External Peripheral Interface Connectors

    POS-6614 Motherboard 3.3 External Peripheral Interface Connectors Figure 3-23 shows the POS-6614 Motherboard external peripheral connector panel. The peripheral connectors on the panel can be connected to devices externally when the motherboard is installed in a chassis. The external peripheral connectors are: 1 x Reset button (labeled 1) 2 x USB 2.0 ports (labeled 2)

  • Page 76: Reset Button

    POS-6614 Motherboard 3.3.1 Reset Button CN Label: RST_SW1 CN Type: Reset button CN Location: See Figure 3-23 (labeled 1) CN Pinouts: See Table 3-24 Use the reset button to reset the system. DESCRIPTION DESCRIPTION Reset Table 3-24: Reset Button Pinouts 3.3.2 USB Connectors...

  • Page 77: Ethernet Connector

    POS-6614 Motherboard 3.3.3 Ethernet Connector CN Label: LAN_2 CN Type: Dual RJ-45 Jack connector CN Location: See Figure 3-23 (labeled 3) CN Pinouts: See Table 3-26 and Figure 3-24 A 1Gb connection can be made between the Ethernet connectors and a Local Area Network (LAN) through a network hub.

  • Page 78: Keyboard/Mouse Connector

    CN Location: See Figure 3-23 (labeled 4) CN Pinouts: See Figure 3-25, Table 3-28 and Table 3-29 The POS-6614 motherboard keyboard and mouse connectors are standard PS/2 connectors. Figure 3-25: Dual PS/2 Pinouts and Configuration Page 78 IEI ® Technology, Corp.

  • Page 79: Table 3-28: Keyboard Connector Pinouts

    POS-6614 Motherboard DESCRIPTION KB DATA KB CLOCK Table 3-28: Keyboard Connector Pinouts DESCRIPTION MS DATA MS CLOCK Table 3-29: Mouse Connector Pinouts Page 79...

  • Page 80: Serial Communications Connector

    POS-6614 Motherboard 3.3.5 Serial Communications Connector CN Label: COM_C1, COM_C2 CN Type: D-sub 9 Male connector CN Location: See Figure 3-23 (labeled 5 and 6) CN Pinouts: See Figure 3-26, Table 3-30, Table 3-31 and Table 3-32 The serial connectors on the external interface panel provide serial connection in the RS-232/422/485 modes.

  • Page 81: Table 3-31: Com2 Rs-422 Mode Connector Pinouts

    POS-6614 Motherboard PIN Description PIN Description TXD- TXD+ Voltage Table 3-31: COM2 RS-422 Mode Connector Pinouts PIN Description PIN Description RTX- RTX+ Voltage Table 3-32: COM2 RS-485 Mode Connector Pinouts Page 81...

  • Page 82: Parallel Connector

    See Figure 3-23 (labeled 7) CN Pinouts: See Figure 3-27 and Table 3-33 The POS-6614 motherboard includes one external parallel port, accessed through 25-pin D-type female connector LPT1. These ports are usually connected to a printer. Figure 3-27: Parallel Connector Pinout Locations...

  • Page 83: Audio Connector

    3 Phone Jack connector CN Location: See Figure 3-23 (labeled 8) CN Pinouts: See Figure 3-28 and Table 3-34 The POS-6614 motherboard includes three external audio jacks for mic in, line in and speaker out functions. Figure 3-28: Audio Connector Locations Color Description...

  • Page 84: Vga Connector

    POS-6614 Motherboard 3.3.8 VGA Connector CN Label: VGA1 CN Type: HD-D-sub 15 Female connector CN Location: See Figure 3-23 (labeled 9) CN Pinouts: See Figure 3-29 and Table 3-35 The standard HD-D-sub 15 female connector connects to a CRT or LCD monitor.

  • Page 85: On-Board Jumpers

    POS-6614 Motherboard 3.4 On-board Jumpers The POS-6614 has several on-board jumpers. Refer to Section 4.6 for jumper configuration settings. Page 85...
  • Page 86 POS-6614 Motherboard THIS PAGE IS INTENTIONALLY LEFT BLANK Page 86 IEI ® Technology, Corp.

  • Page 87: Installation And Configuration

    POS-6614 Motherboard Chapter Installation and Configuration Page 87...

  • Page 88: Installation Considerations

    4.1.1 Anti-static Precautions Electrostatic discharge (ESD) can cause serious damage to electronic components, including the POS-6614 motherboard. (Dry climates are especially susceptible to ESD.) It is therefore critical that whenever the POS-6614 motherboard (or any other electrical component) is handled, the following anti-static precautions are strictly adhered to.

  • Page 89: Unpacking

    4.2.1 Unpacking Precautions Some components on POS-6614 motherboard are very sensitive to static electricity and can be damaged by a sudden rush of power. To protect the POS-6614 motherboard from being damaged, by ESD follow these precautions: Any person handling the POS-6614 motherboard should be grounded. This removes static charge before the POS-6614 motherboard is touched.

  • Page 90: Checklist

    POS-6614 Motherboard Handle the POS-6614 motherboard by its edges. Do not touch the IC chips, leads or circuitry unnecessarily. Do not place the PCB on top of the anti-static bag. Only the inside of the bag is safe from static discharge.
  • Page 91 POS-6614 Motherboard WARNING: Please note that the installation instructions described in this manual should be carefully followed in order to prevent damage to the POS-6614 motherboard components and injury to the user. WARNING: When installing electronic components onto the POS-6614 motherboard...

  • Page 92: Socket Lga775 Cpu Installation

    Make sure the CPU is installed properly and ensure that a heat sink and CPU cooling fan are properly installed before the POS-6614 motherboard is run. If a heat sink and cooling fan are not properly installed both the CPU and the board may be damaged.

  • Page 93: Figure 4-2: Remove The Cpu Socket Protective Shield

    When handling the CPU, only hold it on the sides. DO NOT touch the pins at the bottom of the CPU. To install a socket LGA775 CPU onto the POS-6614 motherboard, follow the steps below: Step 1: Remove the protective cover. Remove the black protective cover by prying it off the load plate.

  • Page 94: Figure 4-3: Open The Cpu Socket Load Plate

    POS-6614 Motherboard Figure 4-3: Open the CPU Socket Load Plate Step 3: Inspect the CPU socket Make sure there are no bent pins and make sure the socket contacts are free of foreign materials. If any debris is found, remove it with compressed air.

  • Page 95: Socket Lga775 Cooling Kit Installation

    WARNING: It is strongly recommended that you DO NOT use the original heat sink and cooler provided by Intel on the POS-6614 motherboard. The POS-6614 motherboard is vertically mounted on a horizontal backplane and Intel’s heat sink does not come with a support bracket on the soldering side, so the PCB may be bent by the weight of the cooling kit.

  • Page 96: Figure 4-5: Iei Lga-775 Cooling Kit

    POS-6614 Motherboard CF-520-RS Figure 4-5: IEI LGA-775 Cooling Kit The IEI LGA775 CPU cooling kit shown in Figure 4-5 comprises a CPU heat sink and a cooling fan. NOTE: Do not wipe off (accidentally or otherwise) the pre-sprayed layer of thermal paste on the bottom of the CF-520 heat sink.

  • Page 97: Dimm Module Installation

    Step 6: Connect the fan cable. Connect the cooling kit fan cable to the fan connector on the POS-6614 motherboard. Carefully route the cable and avoid heat generating chips and fan blades.Step 0: 4.4.3 DIMM Module Installation...

  • Page 98: Dimm Module Installation

    POS-6614 Motherboard 4.4.3.2 DIMM Module Installation The POS-6614 motherboard has two DDR SDRAM DIMM sockets. Follow the steps below to install the DIMM modules. Step 1: Make sure the two handles of the DIMM socket are in the "open" position, leaning outward (Figure 4-7).

  • Page 99: Peripheral Device Connection

    POS-6614 Motherboard Figure 4-8: Locking the DIMM Module Step 3: To remove the memory module, push both handles outward, and the memory module is ejected by the mechanism in the socket.Step 0: 4.5 Peripheral Device Connection Cables provided by IEI that connect peripheral devices to the motherboard are listed in Table 4-1.

  • Page 100: Atx Power Connection

    POS-6614 Motherboard Step 1: Connect the 4-pin connector end of the cable to the CPU12V1 connector on the motherboard. Keyed pins on the connector prevent it from being connected incorrectly. Step 2: Connect the other end of the cable to a power supply.Step 0:...

  • Page 101: Compactflash Installation

    Figure 4-9: Inserting a CompactFlash Card 4.5.6 Cooling Fan Power Connections There are cooling fan connectors on the POS-6614 motherboard labeled SYS_FAN1, SYS_FAN2, and CPU_FAN1. The four pin CPU_FAN1 connector should be used to connect the CPU cooling fan. To install a CPU cooling fan onto the motherboard, see Section 4.4.2.

  • Page 102: Com# Rs-232 Serial Port Installation

    POS-6614 Motherboard Step 1: Connect the power cable from the cooling fan to the nearest fan connector. Keyed pins on the connector prevent it from being connected incorrectly.Step 0: 4.5.7 COM# RS-232 Serial Port Installation To connect an RS-232 serial port to the motherboard, follow the instructions below.

  • Page 103: Floppy Disk Drive (Fdd) Installation

    POS-6614 Motherboard NOTE: Be sure to configure the J_COM2_SEL1 and J_COM2_SEL2 COM2 RS422/RS485 jumpers for either an RS-422 or RS-485 connection. Refer to Section 4.6.4 for more information. 4.5.9 Floppy Disk Drive (FDD) Installation The floppy drive connector provides access to one (1) externally mounted floppy drive.

  • Page 104: Inverter (Lcd Backlight) Installation

    POS-6614 Motherboard Step 4: Connect the other side of the cable to the HDD making sure that the pin 1 cable corresponds to pin 1 on the connector.Step 0: Figure 4-11: Connection of IDE Connector NOTE: When two IDE disk drives are connected together, back-end jumpers on the drives must be used to configure one drive as a master and the other as a slave.

  • Page 105: Lvds Device Installation

    POS-6614 Motherboard Step 1: Connect the 6-pin connector end of an IrDA cable to the IR1 header on the motherboard. Be sure to align pin 1 on the connector to pin 1 on the header. Step 0: 4.5.13 LVDS Device Installation To connect an LVDS device to the motherboard, follow the instructions below.

  • Page 106: Usb Port Installation

    POS-6614 Motherboard Step 3: Connect the other end of the cable to a SATA drive. Step 4: Connect the 15-pin end of the SATA power connector to a SATA drive power connector. Step 5: Connect the 4P end of the of the SATA power connector to a power supply.

  • Page 107: Vga Port Installation

    POS-6614 Motherboard Figure 4-13: Connection of a USB Connector 4.5.18 VGA Port Installation The cable used to connect the motherboard to a VGA port is a 10-pin box header to female HD-D-sub 15 connector. To connect a VGA port to the motherboard, follow the instructions below.

  • Page 108: Jumper Configuration

    OPEN a Figure 4-14: Jumper Locations jumper means removing the plastic clip from a jumper. The POS-6614 CPU Board has several onboard jumpers (Figure 4-15). Figure 4-15: Jumper Locations Page 108...

  • Page 109: Clear Cmos Setup Jumper

    POS-6614 Motherboard 4.6.1 Clear CMOS Setup Jumper Jumper Label: J_CMOS1 Jumper Type: 3-pin header Jumper Location: See Figure 4-15 Jumper Settings: See Table 4-2 If the CPU card fails to boot due to improper BIOS settings, use this jumper to clear the CMOS data and reset the system BIOS information.

  • Page 110: Comx Voltage Selection Jumpers

    POS-6614 Motherboard The following jumper sets pin9 of COMx as signal or voltage. J_COM_Fx Description 2-3 closed COMx RI PIN Use RI 1-2 closed COMx RI PIN Use Voltage Table 4-3: COMx RI Selection Settings 4.6.3 COMx Voltage Selection Jumpers...

  • Page 111: Compactflash Card Setup Jumper

    POS-6614 Motherboard J_COM2_SEL1 J_COM2_SEL2 COM2 mode 1–2, 4–5, 7–8, 10-11 1 - 2 RS-232 2–3, 5–6, 8–9, 11-12 2 - 3 RS-422 2–3, 5–6, 7–8, 10-11 2 - 3 RS-485 Table 4-5: COM2 RS-232/422/485 Setup Jumper Settings 4.6.5 CompactFlash Card Setup Jumper...

  • Page 112: Chassis Installation

    POS-6614 Motherboard WARNING: Selecting the wrong voltage will burn the LCD. Please check LCD technical documents provided by the vendor for the correct voltage. J_LVDS1 DESCRIPTION Set The Voltage Level Of Panel To VCC3 (default)* Short 2-3 Set The Voltage Level Of Panel To VCC Table 4-7: LCD Voltage Select Jumper Settings 4.7 Chassis Installation...

  • Page 113: Ethernet Connection

    POS-6614 Motherboard 4.8.3 Ethernet Connection The external RJ-45 connectors can be connected to an external LAN and communicate with data transfer rates up to 1Gb/s. 4.8.4 Keyboard and Mouse Connection A PS/2 keyboard and a PS/2 mouse can be connected to the appropriate PS/2 connector on the external peripheral interface panel.
  • Page 114 POS-6614 Motherboard THIS PAGE IS INTENTIONALLY LEFT BLANK Page 114 IEI ® Technology, Corp.

  • Page 115: Bios Settings

    POS-6614 Motherboard Chapter BIOS Settings Page 115...

  • Page 116: Introduction

    POS-6614 Motherboard 5.1 Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 117: Getting Help

    POS-6614 Motherboard Function F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears. To exit the Help Window press E the F1 key again.

  • Page 118: Main

    POS-6614 Motherboard 5.2 Main The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.

  • Page 119: Advanced

    POS-6614 Motherboard Speed: Lists the processor speed Count: The number of CPUs on the motherboard System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.
  • Page 120 POS-6614 Motherboard BIOS Menu 2: Advanced Page 120 IEI ® Technology, Corp.

  • Page 121: Cpu Configuration

    POS-6614 Motherboard 5.3.1 CPU Configuration Use the CPU Configuration menu (BIOS Menu 3) to view detailed CPU specifications and configure the CPU. BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer...
  • Page 122 POS-6614 Motherboard The following CPU Configuration menu items can be configured. Single Logical Processor Mode [Disabled] Use the Single Logical Processor Mode option to improve power consumption Disabled (Default) All logical processors remains active when enabled. Enabled Only CORE0, logical processor 0 remains active when enabled.

  • Page 123: Ide Configuration

    POS-6614 Motherboard 5.3.2 IDE Configuration Use the IDE Configuration menu (BIOS Menu 4) to change and/or set the configuration of the IDE devices installed in the system. BIOS Menu 4: IDE Configuration OnBoard PCI IDE Controller [Both] Use the OnBoard PCI IDE Controller BIOS option to specify the IDE channels used by the onboard PCI IDE controller.
  • Page 124 POS-6614 Motherboard Primary Slave Secondary Only allows the system to detect the Secondary IDE channel, including both the Secondary Master and Secondary Slave Both Allows the system to detect both the Primary and EFAULT Secondary IDE channels including the Primary Master, Primary Slave, Secondary Master and Secondary Slave.
  • Page 125 POS-6614 Motherboard Hard Disk Write Protect [Disabled] Use the Hard Disk Write Protect BIOS option to protect the hard disks from being overwritten. This menu item is only effective if the device is accessed through the BIOS. Disabled Allows hard disks to be overwritten...
  • Page 126 POS-6614 Motherboard Host & Device Both the motherboard onboard IDE controller and EFAULT IDE disk drive are used to detect the type of IDE cable used. Host The motherboard onboard IDE controller detects the type of IDE cable used. The IDE disk drive to detects the type of IDE cable Device used.

  • Page 127: Ide Master, Ide Slave

    POS-6614 Motherboard 5.3.2.1 IDE Master, IDE Slave Use the IDE Master and IDE Slave configuration menu to view both primary and secondary IDE device details and configure the IDE devices connected to the system. BIOS Menu 5: IDE Master and IDE Slave Configuration Auto-Detected Drive Parameters The “grayed-out”...
  • Page 128 POS-6614 Motherboard increasing the amount of data transferred. Only 512 bytes of data can be transferred per interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt. PIO Mode: Indicates the PIO mode of the installed device.
  • Page 129 POS-6614 Motherboard LBA/Large Mode [Auto] Use the LBA/Large Mode option to disable or enable BIOS to auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB.
  • Page 130 POS-6614 Motherboard PIO mode 0 selected with a maximum transfer rate of 3.3MBps PIO mode 1 selected with a maximum transfer rate of 5.2MBps PIO mode 2 selected with a maximum transfer rate of 8.3MBps PIO mode 3 selected with a maximum transfer rate of 11.1MBps PIO mode 4 selected with a maximum transfer rate of 16.6MBps...
  • Page 131 POS-6614 Motherboard Enabled Allows BIOS to use 32-bit data transfers on supported hard disk drives. Page 131...

  • Page 132: Floppy Configuration

    POS-6614 Motherboard 5.3.3 Floppy Configuration Use the Floppy Configuration menu (BIOS Menu 6) to set or change the configurations for floppy disk drives. BIOS Menu 6: Floppy Configuration Floppy A [1.44 MB 3½”] The Floppy A configuration option determines the types of the floppy drive installed in the system.

  • Page 133: Super Io Configuration

    POS-6614 Motherboard 5.3.4 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 7) to set or change the configurations for the FDD controllers, parallel ports and serial ports. BIOS Menu 7: Super IO Configuration On Board Floppy Controller [Enabled]...
  • Page 134 POS-6614 Motherboard 3F8/IRQ4 Serial Port 1 I/O port address is 3F8 and the interrupt EFAULT address is IRQ4 Serial Port 1 I/O port address is 3E8 and the interrupt 3E8/IRQ4 address is IRQ4 2E8/IRQ3 Serial Port 1 I/O port address is 2E8 and the interrupt...
  • Page 135 POS-6614 Motherboard Parallel Port Address [378] Use the Parallel Port Address option to select the parallel port base address. Disabled No base address is assigned to the Parallel Port Parallel Port I/O port address is 378 EFAULT Parallel Port I/O port address is 278...
  • Page 136 POS-6614 Motherboard Parallel Port IRQ [IRQ7] Use the Parallel Port IRQ selection to set the parallel port interrupt address. IRQ5 IRQ5 is assigned as the parallel port interrupt address IRQ7 IRQ7 is assigned as the parallel port interrupt address EFAULT...
  • Page 137 POS-6614 Motherboard Serial port 4 I/O port address is 2E8 EFAULT Serial port 4 I/O port address is 2F0 Serial port 4 I/O port address is 2E0 Serial Port4 IRQ [10] Use the Serial Port4 IRQ option to select the interrupt address for serial port 4.
  • Page 138 POS-6614 Motherboard Serial Port5 IRQ [11] Use the Serial Port5 IRQ option to select the interrupt address for serial port 5. Serial port 5 IRQ address is 4 Serial port 5 IRQ address is 9 Serial port 5 IRQ address is 10...

  • Page 139: Hardware Health Configuration

    POS-6614 Motherboard 5.3.5 Hardware Health Configuration The Hardware Health Configuration menu (BIOS Menu 8) shows the operating temperature, fan speeds and system voltages. BIOS Menu 8: Hardware Health Configuration CPU Smart FAN [Enabled] Use the CPU Smart FAN option to change the speed of the CPU fan.
  • Page 140 POS-6614 Motherboard Target Temperature of CPU [075] The Target Temperature of CPU option is only available when the CPU Smart FAN option is enabled. This option is not user configurable. The default target temperature setting for the CPU fan. EFAULT...

  • Page 141: Acpi Configuration

    POS-6614 Motherboard 5.3.6 ACPI Configuration The ACPI Configuration menu (BIOS Menu 9) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 9: ACPI Configuration Page 141...
  • Page 142 POS-6614 Motherboard ACPI Aware O/S [Yes] Use the ACPI Aware O/S option to enable the system to configure ACPI power saving options. ACPI can only be implemented if the system OS complies with the ACPI standard. Windows 98, Windows 2000, and Windows XP all comply with ACPI.

  • Page 143: General Acpi Configuration

    POS-6614 Motherboard 5.3.6.1 General ACPI Configuration Use the General ACPI Configuration menu (BIOS Menu 10) to select the ACPI state when the system is suspended. BIOS Menu 10: General ACPI Configuration [Advanced\ ACPI Configuration] Suspend Mode [S1 (POS)] Use the Suspend Mode option to specify the sleep state the system enters when it is not being used.

  • Page 144: Advanced Acpi Configuration

    POS-6614 Motherboard 5.3.6.2 Advanced ACPI Configuration Use the Advanced ACPI Configuration menu (BIOS Menu 11) to select the ACPI state when the system is suspended. BIOS Menu 11: Advanced ACPI Configuration [Advanced\ ACPI Configuration] ACPI Version Features [No] Use the ACPI Version Features option to enable the ACPI (Advanced Configuration and Power Interface) features.
  • Page 145 POS-6614 Motherboard RSDP pointers to 64-bit fixed systems are provided to the system ACPI APIC Support [Enabled] Use the ACPI APIC Support option to add a pointer to an ACPI APIC table in the RSDT (Root System Description Table). The RSDT is an array of pointers that direct the system to the physical addresses of other description tables.

  • Page 146: Mps Configuration

    POS-6614 Motherboard 5.3.7 MPS Configuration Use the MPS Configuration menu (BIOS Menu 12) to select the multi-processor table. BIOS Menu 12: MPS Configuration MPS Revision [1.4] Use the Multiprocessor Specification (MPS) for OS option to specify the MPS version to be used.

  • Page 147: Usb Configuration

    POS-6614 Motherboard 5.3.8 USB Configuration Use the USB Configuration menu (BIOS Menu 13) to read USB configuration information and configure the USB settings. BIOS Menu 13: USB Configuration Onboard SiS USB1.1 DEVICE [Enabled] Use the Onboard SiS USB1.1 DEVICE BIOS option to enable or disable the onboard SiS USB1.1 controller.
  • Page 148 POS-6614 Motherboard Onboard SiS USB2.0 DEVICE [Enabled] Use the Onboard SiS USB2.0 DEVICE option to enable or disable the onboard SiS USB2.0 controller. If disabled, USB2.0 devices cannot be used. USB 2.0 interface is disabled and cannot be used. Disabled Enabled USB 2.0 interface is enabled and can be used.

  • Page 149: Usb Mass Storage Device Configuration

    POS-6614 Motherboard Disabled Systems with OSes that do not support EHCI can use the EHCI handoff functionality. Systems with OSes that do not support EHCI cannot Enabled EFAULT use the EHCI handoff functionality. 5.3.8.1 USB Mass Storage Device Configuration Use the USB Mass Storage Device Configuration menu (BIOS Menu 14) to configure USB mass storage class devices.
  • Page 150 POS-6614 Motherboard 10 Sec POST waits 10 seconds for the USB mass storage device after the start unit command. POST waits 20 seconds for the USB mass storage 20 Sec EFAULT device after the start unit command. 30 Sec POST waits 30 seconds for the USB mass storage device after the start unit command.

  • Page 151: Pci/Pnp

    POS-6614 Motherboard The device can be either A: or B: responding to INT13h calls that return DL = 0 or DL = 1 respectively. Allows a hard disk image to be connected as a Forced FDD floppy image. This option works only for drives formatted with FAT12, FAT16 or FAT32.
  • Page 152 POS-6614 Motherboard BIOS Menu 15: PCI/PnP Configuration Clear NVRAM [No] Use the Clear NVRAM option to specify if the NVRAM (Non-Volatile RAM) is cleared when the power is turned off. System does not clear NVRAM during system boot EFAULT System clears NVRAM during system boot Page 152 IEI ®...
  • Page 153 POS-6614 Motherboard Plug & Play O/S [No] Use the Plug & Play O/S BIOS option to specify whether system plug and play devices are configured by the operating system or the BIOS. If the operating system does not meet the Plug and Play...
  • Page 154 POS-6614 Motherboard Palette Snooping [Disabled] Use the Palette Snooping option to enable or disable the palette snooping function. Disabled Unless the VGA card manufacturer requires palette EFAULT snooping to be enabled, this option should be disabled. PCI devices are informed that an ISA based Graphics...
  • Page 155 POS-6614 Motherboard OffBoard PCI/ISA IDE Card [Auto] Use the Off Board PCI/ISA IDE Card BIOS option to select the OffBoard PCI/ISA IDE Card. Auto The location of the Off Board PCI IDE adapter card is EFAULT automatically detected by the AMIBIOS.
  • Page 156 POS-6614 Motherboard Available The specified IRQ is available to be used by EFAULT PCI/PnP devices The specified IRQ is reserved for use by Legacy ISA Reserved devices Available IRQ addresses are: IRQ3 IRQ4 IRQ5 IRQ7 IRQ9 IRQ10 IRQ 11 IRQ 14...

  • Page 157: Boot

    POS-6614 Motherboard Reserved Memory Size [Disabled] Use the Reserved Memory Size BIOS option to specify the amount of memory that should be reserved for legacy ISA devices. Disabled No memory block reserved for legacy ISA devices EFAULT 16KB reserved for legacy ISA devices...

  • Page 158: Boot Settings Configuration

    POS-6614 Motherboard 5.5.1 Boot Settings Configuration Use the Boot Settings Configuration menu (BIOS Menu 17) to configure advanced system boot options. BIOS Menu 17: Boot Settings Configuration Quick Boot [Enabled] Use the Quick Boot BIOS option to make the computer speed up the boot process.
  • Page 159 POS-6614 Motherboard Quiet Boot [Disabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Disabled Normal POST messages displayed EFAULT Enabled OEM Logo displayed instead of POST messages AddOn ROM Display Mode [Force BIOS] Use the AddOn ROM Display Mode option to allow add-on ROM (read-only memory) messages to be displayed.
  • Page 160 POS-6614 Motherboard PS/2 Mouse Support [Enabled] Use the PS/2 Mouse Support option adjusts PS/2 mouse support capabilities. Disabled PS/2 mouse support is disabled and prevented from using system resources. Allows the system to use a PS/2 mouse. Enabled EFAULT Auto The system auto-adjusts PS/2 mouse support.
  • Page 161 POS-6614 Motherboard Hit ‘DEL’ Message Display [Enabled] Use the Hit “DEL” Message Display option to specify whether the instruction to hit the delete button to enter BIOS during POST appears or not. No message displayed during POST Disabled Enabled Displays “Press DEL to run Setup” message in...

  • Page 162: Boot Device Priority

    POS-6614 Motherboard 5.5.2 Boot Device Priority Use the Boot Device Priority menu (BIOS Menu 18) to specify the boot sequence from the available devices. Possible boot devices may include: FLOPPY DRIVE CD/DVD BIOS Menu 18: Boot Device Priority Setting Page 162...

  • Page 163: Hard Disk Drives

    POS-6614 Motherboard 5.5.3 Hard Disk Drives The Hard Disk Drives menu (BIOS Menu 19) is similar to the Removable Drives BIOS Menu 20 and it specifies the boot sequence of the available HDDs. When the menu is opened, the HDDs connected to the system are listed as shown below:...

  • Page 164: Removable Drives

    POS-6614 Motherboard BIOS Menu 19: Hard Disk Drives 5.5.4 Removable Drives The Removable Drives menu (BIOS Menu 20 ) specifies the boot sequence of the available FDDs. When the menu is opened, the FDDs connected to the system are listed...

  • Page 165: Cd/Dvd Drives

    POS-6614 Motherboard The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available FDDs is shown. Select the first FDD system boots from. If the “1st Drive” is not used for booting this option may be disabled.
  • Page 166 POS-6614 Motherboard NOTE: Only the drives connected to the system are shown. For example, if only two CDs or DVDs are connected only “1st Drive” and “2nd Drive” are listed. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available CD/DVD drives is shown.

  • Page 167: Security

    POS-6614 Motherboard 5.6 Security The Security menu (BIOS Menu 22) allows system security settings including passwords to be configured. BIOS Menu 22: Security Change Supervisor Password Use the Change Supervisor Password to set or change a supervisor password. The default for this option is Not Installed. If a supervisor password must be installed, select this field and enter the password.

  • Page 168: Chipset

    POS-6614 Motherboard password. After the password has been added, Install appears next to Change User Password. 5.7 Chipset Use the Chipset menu (BIOS Menu ) to access the NorthBridge and SouthBridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 169: Northbridge Sis661Fx Configuration

    POS-6614 Motherboard 5.7.1 Northbridge SIS661FX Configuration The Northbridge SIS661FX Configuration menu (BIOS Menu 24) allows the northbridge chipset to be configured. BIOS Menu 24:NorthBridge Chipset Configuration Primary Graphics Adapter [PCI] Use the Primary Graphics Adapter option to select the graphics adapter the system uses.
  • Page 170 POS-6614 Motherboard DRAM CAS# Latency [3] Use the CAS Latency Time configuration option to set the Column Address Strobe (CAS) delay time. The following configuration options are available By SPD EFAULT 2.5T Graphic Win Size [256MB] Use the Graphic Win Size option to select the size of the AGP aperture and the size of the GART (Graphics Address Relocation Table).
  • Page 171 POS-6614 Motherboard Display Device Select [CRT1 only] Use the Display Device Select BIOS feature to determine what displays are used. Dual display functionality is enabled here. Dual display configuration options are listed below: CTR1 only EFAULT CRT1 + LCD CRT1 + TV...

  • Page 172: South Bridge Sis966 Configuration

    POS-6614 Motherboard 5.7.2 South Bridge SiS966 Configuration The South Bridge SiS966 Configuration menu (BI OS Menu 25 ) the southbridge chipset to be configured. BIOS Menu 2 :SouthBridge Chipset Configuration OnBoard Audio DEVICE The OnBoard AC’97 DEVICE option enables or disables the AC’97 CODEC.
  • Page 173 POS-6614 Motherboard All PCI EXPRESS Controller [Enabled] Use the All PCI EXPRESS Controller to enable the PCIe controllers on the system. Enabled PCIe controllers enabled EFAULT PCIe controllers disabled Disabled All PCI EXPRESS INTPIN [Disabled] Use the All PCI EXPRESS INTPIN to enable the PCIe interrupt pin function on the PCIe bus.

  • Page 174: Power

    POS-6614 Motherboard 5.8 Power The Power menu (BIOS M enu 26 ) allows the advanced power management options to be configured. BIOS Menu 26: Power Power Management/APM [Enabled] The Power Management/APM BIOS option allows access to the advanced power management features. If this option is disabled, the only other option on the screen is the “Resume On RTC Alarm.”...
  • Page 175 POS-6614 Motherboard Resume On PME# [Enabled] The Resume On PME# BIOS option to enable the system to be roused from a suspended or standby state when there is activity on the PCI PME (power management event) controller. Wake event not generated by PCI PME controller...

  • Page 176: Exit

    POS-6614 Motherboard 5.9 Exit Use the Exit menu (BIOS Menu 27) to load default BIOS values, optimal failsafe values and to save configuration changes. BIOS Menu 27:Exit Save Changes and Exit If configuration changes are complete, select this option to save them and exit the BIOS menus.
  • Page 177 POS-6614 Motherboard Discard Changes If configuration changes are complete but do need to be saved but BIOS still needs to be run , select this option. Load Optimal Defaults This option loads optimal default values for each of the parameters on the Setup menus.
  • Page 178 POS-6614 Motherboard THIS PAGE IS INTENTIONALLY LEFT BLANK Page 178 IEI ® Technology, Corp.

  • Page 179: Driver Installation

    POS-6614 Motherboard Chapter Driver Installation Page 179...

  • Page 180: Available Software Drivers

    All drivers can be found on the CD that came with the CPU card. To install the drivers please follow the instructions in the sections below. Insert the CD into the system that contains the POS-6614 motherboard. NOTE: If your system does not run the "autorun" program when the CD is inserted, click the Start button, select Run, then type X:\autorun.exe (replace X with the actual...
