Advantech Wzzard BB-WSD2C21150 Quick Start Manual

4

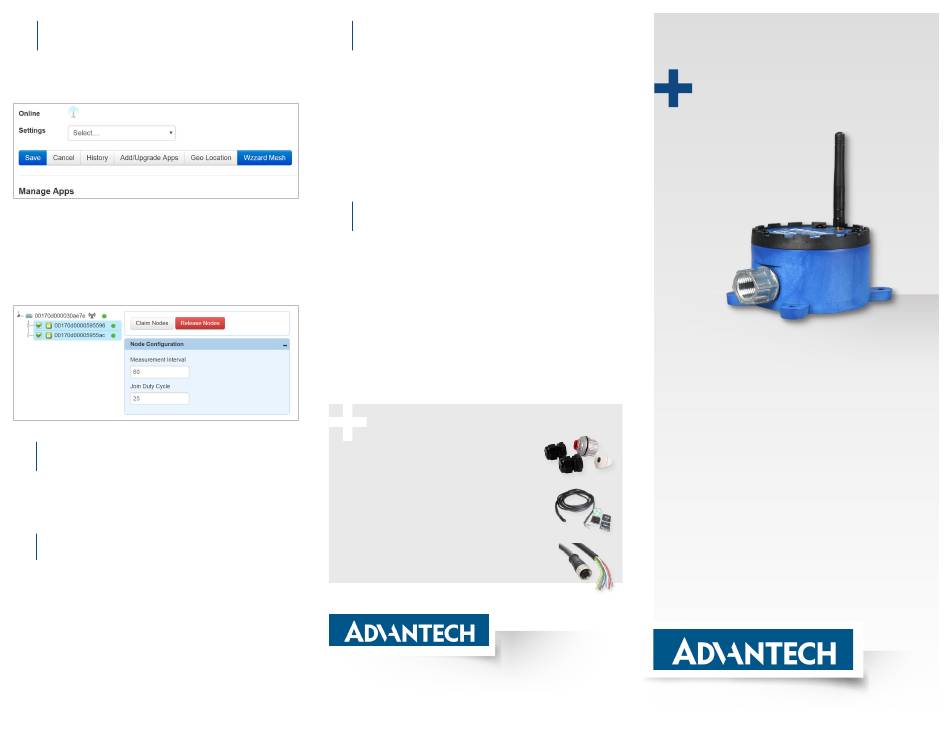

Review Network & Claim Nodes
Follow the SmartSwarm quick start guide to claim and
configure the gateway. With the gateway connected to
the internet, click on the "Wzzard Mesh" button.
As nodes join the network, they will be added to the device
tree under the gateway MAC address.
When all nodes' MAC addresses show in the tree, click the
checkbox next to each node.
Click the "Claim Nodes" button to prevent the nodes from
joining another open network.
5
Configure the Node
Refer to the Wzzard Mesh Wireless Sensor user manual for
detailed configuration instructions.
6
Mount the Node
Flange Mounting - Wzzard nodes may be mounted via
their mounting ears. (M5, #10)
Magnetic Mounting* - Wzzard nodes contain a powerful,
internal mounting magnet in the base of the node – pull
force 2.13 kg (4.7 lb) – convenient for temporary position-
ing and configuration of nodes.
Apply the anti-skid disk to the bottom of unit for extra grip.
* Note: UL Class1/Division2 rating does not apply (voided) when using magnetic mounting.
Document Number: 2009WSD200_r3_BB-WSD2x_WzzardInd_4119qsg
7
Putting the Node in Deep Sleep
When not using the node for some time, the node should be
put into deep sleep.
Press the Status/Sleep/Reset configuration button for 5
seconds until the Status LED turns off.
The node will retain all settings, including the associated
network if the node has been claimed. It will not reset the
device back to factory settings.
8
Restoring Node to Factory Default
To reset the node to factory defaults, press and hold the
Status/Sleep/Reset configuration button for 10 seconds until
the Status LED flashes quickly. This will:
1) Clear the sensor type information.
2) Clear the associated network information if the node has
been claimed.
3) Allow the node to search for a new network.
Recommended Accessories
# BB-ZXTMT
Cable Gland/Conduit Kit
# BB-WCD-TM2M
Thermistor Cable
# BB-WSCAM12-6
M12 Cable Wiring Harness Cable
www.advantech.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350
Phone: 1 (815) 433-5100 | Fax: 1 (815) 433-5109
www.advantech.com | E-mail: support@advantech.com
QUICK START
GUIDE
™

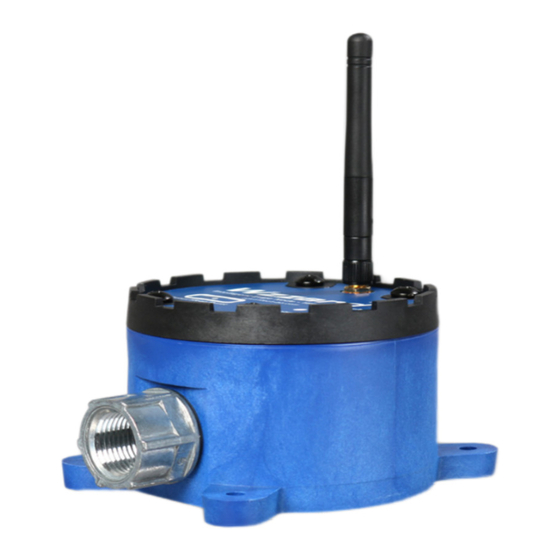

Wzzard Mesh Wireless Sensor
for Industrial Applications
Intelligent Edge Node with SmartMesh IP
Models: BB-WSD2C21150, BB-WSD2C06010,
BB-WSD2C31010, BB-WSD2M06010,
BB-WSD2M31010, BB-WSD2M3101P2K,
BB-WSD1M3101R100
Before you begin, be
sure you have the following:
+ Wzzard Intelligent Edge Node
+ Wire Harness
+ (2) Lithium Thionyl Chloride AA Batteries
+ External Antenna
+ Anti-skid Disk
