WISE-S100

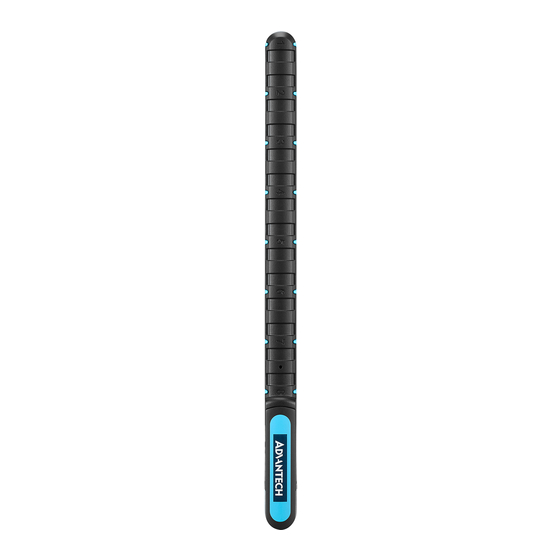

Intelligent Stack Light Monitoring Sensor
Startup Manual
Packing List
• 1 x WISE-S100 stack light monitoring sensor
• 3 x plastic tie
• 1 x 2m cable
• 1 x WISE-S100 startup manual
• 1 x China RoHS declaration
If any of the above items are missing or damaged, please
contact your distributor or sales representative immediately.
Overview
Thank you for purchasing the WISE-S100 Stack Light
Monitoring Sensor. This quick start guide is intended to help
you with deploying the device. It includes information on
the configuration setup and application wiring. Should you
require more instructions, please refer to the user manual.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for WISE-S100.
Part No. 2043S10000

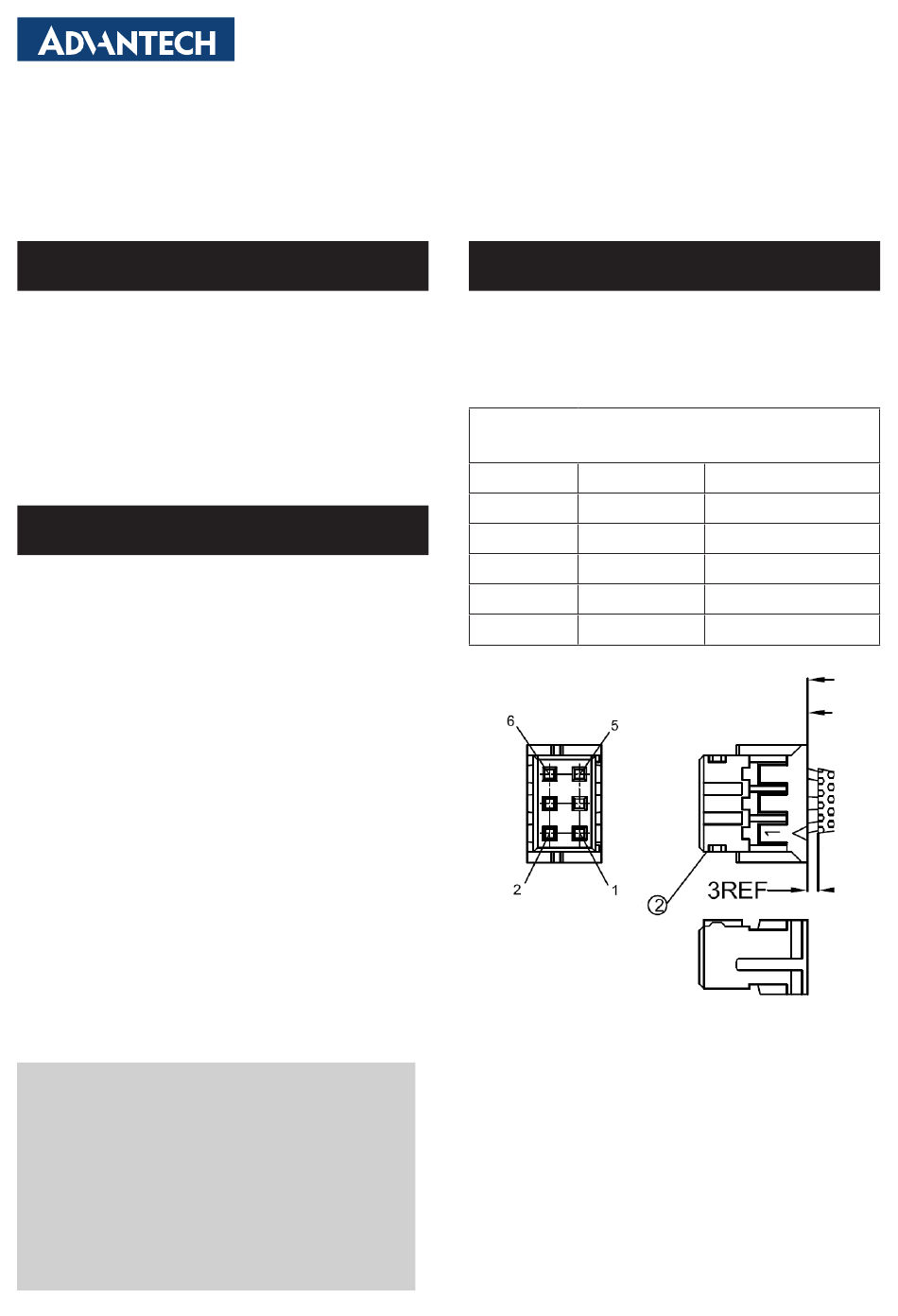

Cable Wiring & Pin Assignments
The cable of the WISE-S100 stack light sensor is connected
and installed in the default package. The power input of the
sensor is 3.3~30V
Please refer to the pin assignments via the below table.
2M Cable with Wafer Box
PN:1700031410-01
1
2
3
4
5
6
Edition 1
August 2020
.
DC
Red
V+ In
Black
GND
Brown
DATA+
Yellow
MCU Interrupt
Orange
DATA-
Green
IO Interrupt
WISE-S100 Startup Manual 1
