Solight TE80 User Manual

EN

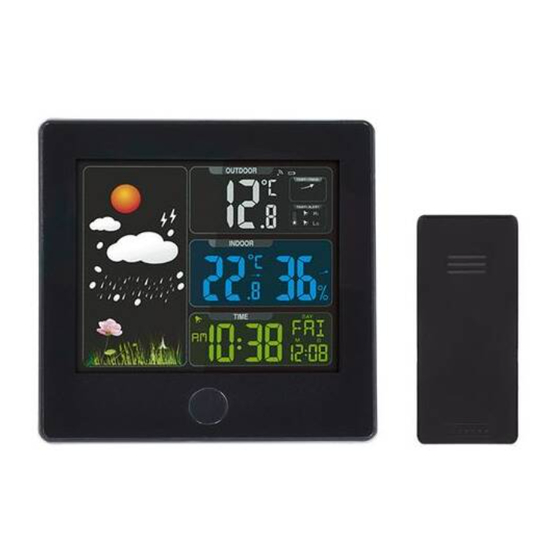

WIRELESS WEATHER STATION Solight TE80
User's Manual
Dear customer, thank you for purchasing our product. If you want to safely make full use of the features, please carefully read these instructions and follow
them. This way, you will avoid incorrect use or damage. Prevent unauthorized use of this device and always respect all rules regarding the handling of electrical
devices. Please, keep the manual for future use. The main unit should be as close to a window as possible.
Room Temperature Measurement
Room Humidity Measurement
Outside Temperature
Measurement
Power supply
Temperature Measurement
Accuracy
Humidity Measurement Accuracy
Main Unit
If the unit is to be powered by batteries open the battery compartment cover and insert two alkaline AAA batteries. Mind the indicated polarity. When
powering up, for a moment, all of the LCD segments light up and the device makes a beep sound. It then goes into the standard temperature and humidity
measurement mode. The sensor is powered by two alkaline AAA batteries.
When the device is powered by an AC/DC adapter connect the power connector to the input socket on the weather station and then connect the adapter to a
power socket.
To reset the device, remove and reinsert the batteries or disconnect the adapter for at least five seconds. This will delete all settings and memory. When
powered by batteries, the display stays lit for eight seconds after each activation. When powered by the adapter, it stays lit continuously.
Default Settings: 24-hour time format showing 00:00 and temperature in °C
1. BUTTON FUNCTIONS
Controls
Features
Brief
push
Standard
mode
HOLD
Brief
push
Setting
Time
HOLD
Brief
push
Setting the
Alarm Clock
HOLD
2. MAIN FUNCTIONS

Weather forecast symbols: sunny, partly cloudy, overcast, rainy

RCC signal reception mode: DCF

Calendar span: 2000-2099, displaying date and day of the week
 Time format 12/24 hours

Temperature in °C or °F

Room temperature display. Measurement accuracy: +/– 1°C, measurement range -20 °C + 60 °C
 Room humidity display. Measurement accuracy: +/- 1%, measurement range 20% - 95%
 Outside temperature display. Measurement accuracy: +/– 1°C, measurement range -20 °C + 60 °C

Outside transmitter battery depletion indicator

Alarm clock, snooze function (1-60 min)

Highest and lowest temperature measured memory

Daylight Saving Time (DST)

Time zone shift setting

Sensors transmit at a frequency of 433 MHz
0°C to +50°
20% to 95%
-20°C to +60°C
2x AAA 1.5V alkaline battery
AC/DC adapter 4.5 V/150 mA
1 °C
1%
MODE ALARM
Displays alarm
Turns the
clock settings
alarm clock
on/off
Access time and Access alarm
date setting clock setting
mode, mode
Confirm setting -----
----- -----
----- -----
----- -----
We recommend using alkaline batteries with a nominal voltage of 1.5 V to achieve the
correct luminosity of the LCD display. NiMh accumulators usually have a voltage of 1.2 V
causing the LCD luminosity to be inferior.
▼ ▲
Toggle
between °C/°F
-----
Sensor signal
RCC reception
reception
mode
activation
activation
One step
One step back
forward
Fast forward Fast backward
One step
One step back
forward
Fast forward Fast backward
WAVE
LIGHT/SNZ
Turns time
Lights the display
sync on/off
----- -----
----- -----
----- -----
----- -----
----- -----
