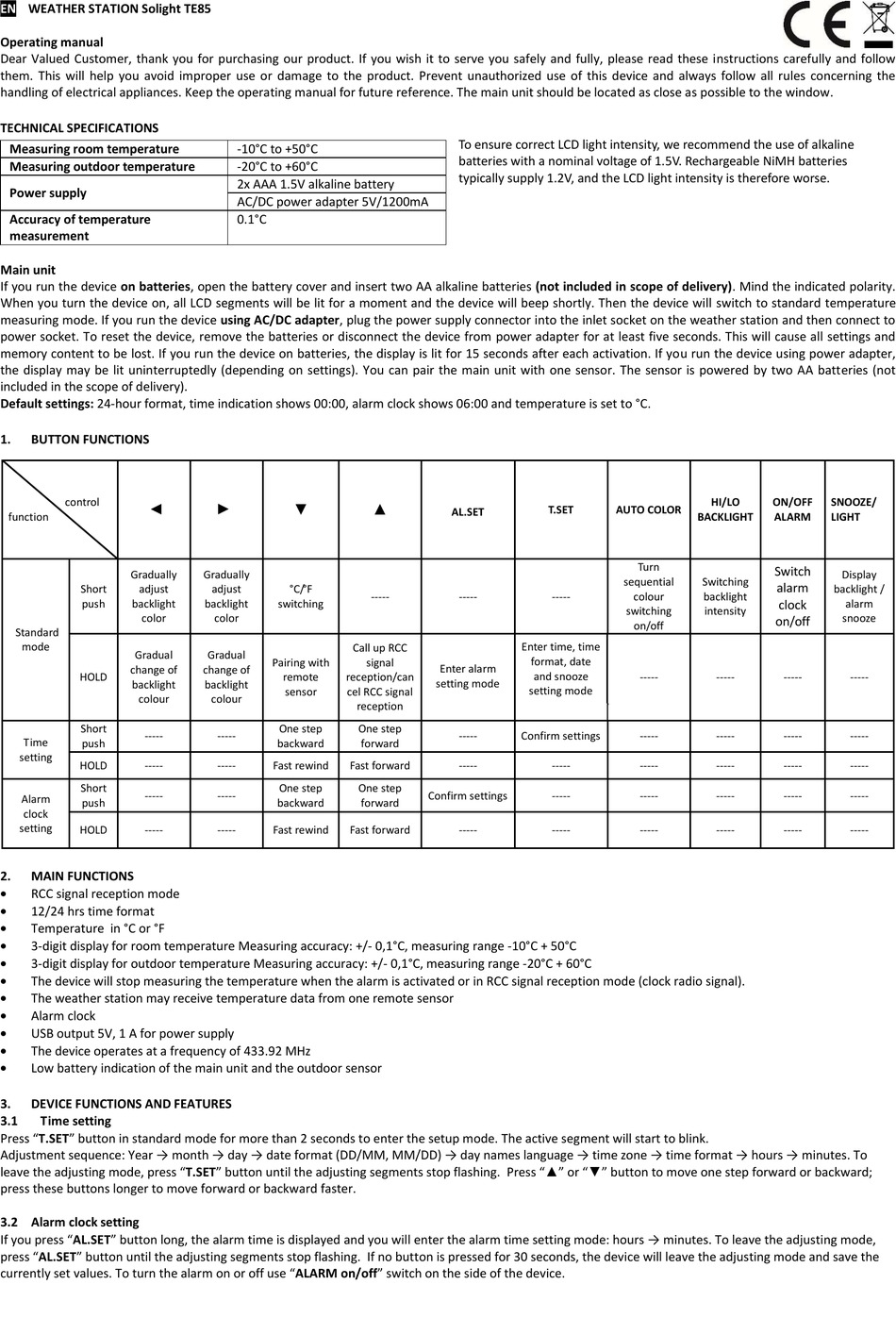

EN NWEATHER STATION Solight TE85
Operating manual
Dear Valued Customer, thank you for purchasing our product. If you wish it to serve you safely and fully, please read these instructions carefully and follow
them. This will help you avoid improper use or damage to the product. Prevent unauthorized use of this device and always follow all rules concerning the
handling of electrical appliances. Keep the operating manual for future reference. The main unit should be located as close as possible to the window.

TECHNICAL SPECIFICATIONS

Measuring room temperature

Measuring outdoor temperature

Power supply

Accuracy of temperature
measurement

Main unit

If you run the device on batteries, open the battery cover and insert two AA alkaline batteries (not included in scope of delivery). Mind the indicated polarity.
When you turn the device on, all LCD segments will be lit for a moment and the device will beep shortly. Then the device will switch to standard temperature
measuring mode. If you run the device using AC/DC adapter, plug the power supply connector into the inlet socket on the weather station and then connect to
power socket. To reset the device, remove the batteries or disconnect the device from power adapter for at least five seconds. This will cause all settings and
memory content to be lost. If you run the device on batteries, the display is lit for 15 seconds after each activation. If you run the device using power adapter,
the display may be lit uninterruptedly (depending on settings). You can pair the main unit with one sensor. The sensor is powered by two AA batteries (not
included in the scope of delivery).
Default settings: 24-hour format, time indication shows 00:00, alarm clock shows 06:00 and temperature is set to °C.
1.

BUTTON FUNCTIONS

control
function
Gradually
Short adjust
push backlight
color
Standard
mode
Gradual
change of
HOLD
backlight
colour
Short
-----
Time
push
setting
HOLD -----
Short
-----
Alarm
push
clock
setting
HOLD -----
2.

MAIN FUNCTIONS


RCC signal reception mode

12/24 hrs time format

Temperature in °C or °F

3-digit display for room temperature Measuring accuracy: +/- 0,1°C, measuring range -10°C + 50°C

3-digit display for outdoor temperature Measuring accuracy: +/- 0,1°C, measuring range -20°C + 60°C

The device will stop measuring the temperature when the alarm is activated or in RCC signal reception mode (clock radio signal).

The weather station may receive temperature data from one remote sensor

Alarm clock

USB output 5V, 1 A for power supply

The device operates at a frequency of 433.92 MHz

Low battery indication of the main unit and the outdoor sensor
3. Device Functions And Features
3.1 Time Setting
Press "T.SET" button in standard mode for more than 2 seconds to enter the setup mode. The active segment will start to blink.
Adjustment sequence: Year → month → day → date format (DD/MM, MM/DD) → day names language → time zone → time format → hours → minutes. To
leave the adjusting mode, press "T.SET" button until the adjusting segments stop flashing. Press "▲" or "▼" button to move one step forward or backward;
press these buttons longer to move forward or backward faster.
3.2 Alarm clock setting
If you press "AL.SET" button long, the alarm time is displayed and you will enter the alarm time setting mode: hours → minutes. To leave the adjusting mode,
press "AL.SET" button until the adjusting segments stop flashing. If no button is pressed for 30 seconds, the device will leave the adjusting mode and save the
currently set values. To turn the alarm on or off use "ALARM on/off" switch on the side of the device.
-10°C to +50°C
-20°C to +60°C
2x AAA 1.5V alkaline battery
AC/DC power adapter 5V/1200mA
0.1°C
▼ ▲
Gradually
adjust °C/°F
-----
backlight switching
color
Call up RCC
Gradual
Pairing with signal
change of
remote reception/can
backlight
sensor cel RCC signal
colour
reception
One step One step
-----
backward forward
----- Fast rewind Fast forward
One step One step
-----
backward forward
----- Fast rewind Fast forward
To ensure correct LCD light intensity, we recommend the use of alkaline
batteries with a nominal voltage of 1.5V. Rechargeable NiMH batteries
typically supply 1.2V, and the LCD light intensity is therefore worse.
T.SET
AL.SET
----- -----
Enter time, time
format, date
Enter alarm
and snooze
setting mode
setting mode
----- Confirm settings
----- -----
Confirm settings -----
----- -----
HI/LO ON/OFF
AUTO COLOR
BACKLIGHT ALARM
Turn
Switch
sequential Switching
alarm
colour backlight
clock
switching intensity
on/off
on/off
----- ----- -----
----- ----- -----
----- ----- -----
----- ----- -----
----- ----- -----
SNOOZE/
LIGHT
Display
backlight /
alarm
snooze
-----
-----
-----
-----
-----
