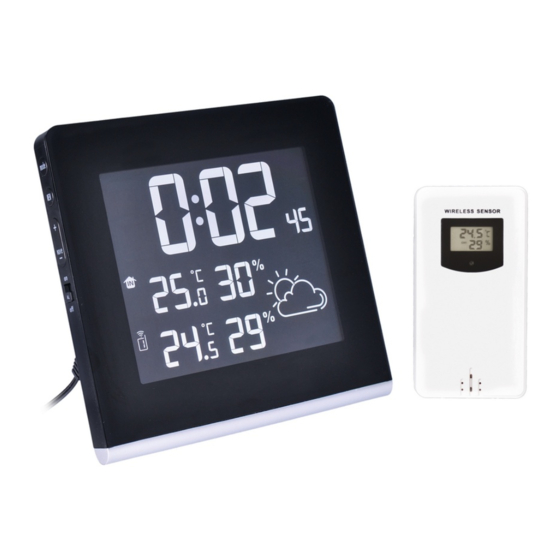

EN WEATHER STATION Solight TE86
Operating manual
Dear Valued Customer, thank you for purchasing our product. If you wish it to serve you safely and fully, please read these instructions carefully and follow
them. This will help you avoid improper use or damage to the product. Prevent unauthorized use of this device and always follow all rules concerning the
handling of electrical appliances. Keep the operating manual for future reference. The main unit should be located as close as possible to the window.
TECHNICAL SPECIFICATIONS
Measuring room temperature
Measuring room humidity
Measuring outdoor temperature
Measuring outdoor humidity
Power supply
Accuracy of temperature
measurement
Accuracy of humidity measurement
Main unit
If you run the device on batteries, open the battery cover and insert two AA alkaline batteries (not included in scope of delivery). Mind the indicated polarity.
When you turn the device on, all LCD segments will be lit for a moment and the device will beep shortly. Then it will switch to standard temperature and
humidity measuring mode. If you run the device using AC/DC adapter, plug the power supply connector into the inlet socket on the weather station and then
connect to power socket. To reset the device, remove the batteries or disconnect the device from power adapter for at least five seconds. This will cause all
settings and memory content to be lost. If you run the device on batteries, the display is lit for 8 seconds after each activation. If you run the device using power
adapter, the display may be lit uninterruptedly (depending on settings). You can pair the main unit with up to three sensors. Every sensor is powered by two AA
batteries (not included in the scope of delivery).
Default settings: 24-hour format, time indication shows 00:00, alarm clock 06:00 and temperature is set to °C.
1. BUTTON FUNCTIONS
control function mode
Time / alarm
Short
display
push
Standard
mode Enter time,
alarm
HOLD setting
mode °C/°F,
24/12
Short Confirm
push settings
Time
setting
HOLD -----
Short Confirm
push settings
Alarm clock
setting
HOLD -----
2. MAIN FUNCTIONS

6 levels for weather forecast: sunny, scattered clouds, overcast sky, rain, heavy rain, snow

RCC signal reception mode

12/24 hrs time format

Temperature in °C or °F

3-digit display for room temperature Measuring accuracy: +/- 0,1°C, measuring range -10°C + 50°C

2-digit display showing room and outdoor humidity. Measuring accuracy: +/- 1%, measuring range 20% - 95%

3-digit display showing outdoor temperature. Measuring accuracy: +/- 0,1°C, measuring range -25°C +50°C

The device will stop measuring the temperature when the alarm is triggered or in RCC signal reception mode (clock radio signal).

The weather station may receive temperature data from up to three channels (transmitters)

Maximum inner and outer temperature and humidity memory

Alarm clock

USB output 5V, 1 A for power supply

Alarm snooze function (1-60 minutes)

Icing symbol indication

The device operates at a frequency of 433.92 MHz

Low battery indication of the main unit and the outdoor sensor
3. DEVICE FUNCTIONS AND FEATURES
3.1 Time and alarm clock setting
-10°C to +50°C
20% to 95%
-25°C to +50°C
20% to 95%
2x AAA 1.5V alkaline battery
AC/DC power adapter
5V/1,200mA
0.1°C
1%
rainbow +
Display
backlight
-----
intensity/termi
colour
nate RCC signal
setting
Call up RCC
----- -----
One step
-----
forward
----- Fast forward Fast backward
One step
-----
forward
----- Fast forward Fast backward
To ensure correct LCD light intensity, we recommend the use of alkaline batteries
with a nominal voltage of 1.5V. Rechargeable NiMH batteries typically supply 1.2V,
and the LCD light intensity is therefore worse.
wave - CH
Display Toggle between
backlight individual
sensors / cycle
through various
search sensor displays
Activate signal
reception from
signal
sensors
reception
One step
-----
backward
-----
One step
-----
backward
-----
loop MEM
Turn Display max.
sequential and min.
colour temperature
switching and humidity
on/off memory
Delete max.
and min.
----- temperature
and humidity
data
----- -----
----- -----
----- -----
----- -----
on/off
Z
/ Z
AL
Switch Display
alarm backlight/
clock alarm
on/off snooze
----- -----
----- -----
----- -----
----- -----
----- -----
