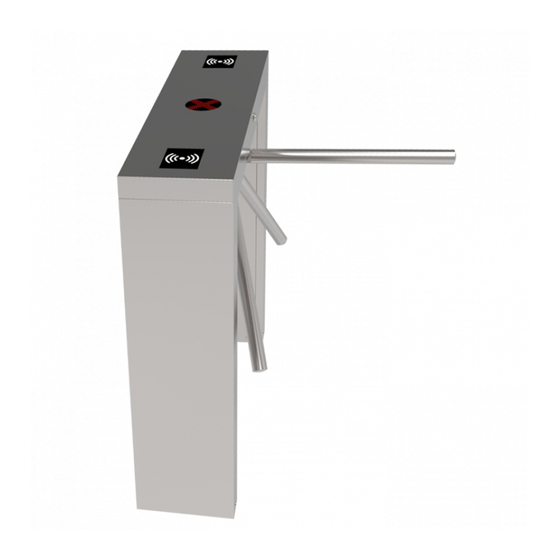

TS3000: Tripod Turnstile TS3011: Tripod Turnstile with Controller and RFID Reader TS3022: Tripod Turnstile with Controller and Fingerprint Reader with RFID function. Please read this document carefully before installation and using the device. 1. Technical Specifications AC 100V ~ 120V / 200 Max.
2. Rotating the arms to the connection points until it was fastening, and then use the Hex key to fasten the one screw on each arm, as shown in Figure 2-2. Tighten the one screw on each arm in clockwise direction. Figure 2-2 2.2 Power-on test before the installation of device 1.
Page 4
Notes: When installing the tripod turnstile against the wall, please reserve at least 100 mm space in order to open the cover for adjustment and maintenance. The space at the end of the arm shall not be greater than 80 mm (see Figure 3-1). Setting a warning line for card swiping (see Figure 3-2).
4. Cable Diagram 4.1 Function description of the turnstile control board If you are using TS3011 or TS3022, all the connections between access control and turnstile control boards are done in factory. Just plug in communication cable to access controller and do the setting. If you are using TS3000, you need to connect access control system to the main board, please check the content in this chapter carefully.
Page 6
J6 Drop Arm: Short circuit DOW and GND, the arm is dropped down by force in case there are fires or other emergencies. J8 Proximity Switch Signal Input: Input position signal of the arm. J9 12V Power Supply for Access control: control board directly provide Access Control with 12V power. (Maximum support 3A) V1L Left Solenoid, V2R Right Solenoid &...
Page 7
4.3.2 Direction indicator It is to indicate whether the user is allowed to pass. The green arrow means passing is allowed while the red "X" means passing is prohibited. The indicator status can be set through number 4 and 5 in the DIP switch. The description of the bit settings are as follows: 11 = One-way traffic, left passing is allowed.
5. Equipment Precautions and Maintenance 5.1 Precaution 1. It is recommended to purchase optional accessories to use in outdoor environment. (1) It shall install optional cooling fans for the equipment if the working temperature is often above 50 ºC. (2) If the temperature is -30ºC, a heating plate is suggested to install. It might need multiple times to power on while getting hot automatically through the self-check program.
The Adjustable Tension Spring is used to adjust the tripod turnstile's elasticity and return speed. You can rotate it in clockwise direction to enhance and in anticlockwise direction to weaken the elasticity and return speed of the tripod turnstile. See Figure 5-2. Figure 5-3 shows the mechanical and electrical structure of this equipment.
Page 10
The passing is not smooth after the turnstile is opened, it encounters resistance when It is caused by the Adjustable Tension Spring. pushing the arms, and the arms cannot Adjust the Adjustable Tension Spring, as shown in Figure 5-3. return to the home position after they rotate.
Attachment 1 Default Factory Settings Function Default Lock Driving Duration Door Sensor None Verification Interval Controller Communication TCP/IP: 192.168.1.201 Turnstile Opening Duration Passing Direction Indicator Passing is allowed in both directions Continue Passing Function Disabled Alarm Function Disabled Note: The Lock Driving Duration is default 5 seconds, please set to 1 second.
Page 12
Attachment 2 Connection Diagram of Mainboard and Access Control Panel Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.
