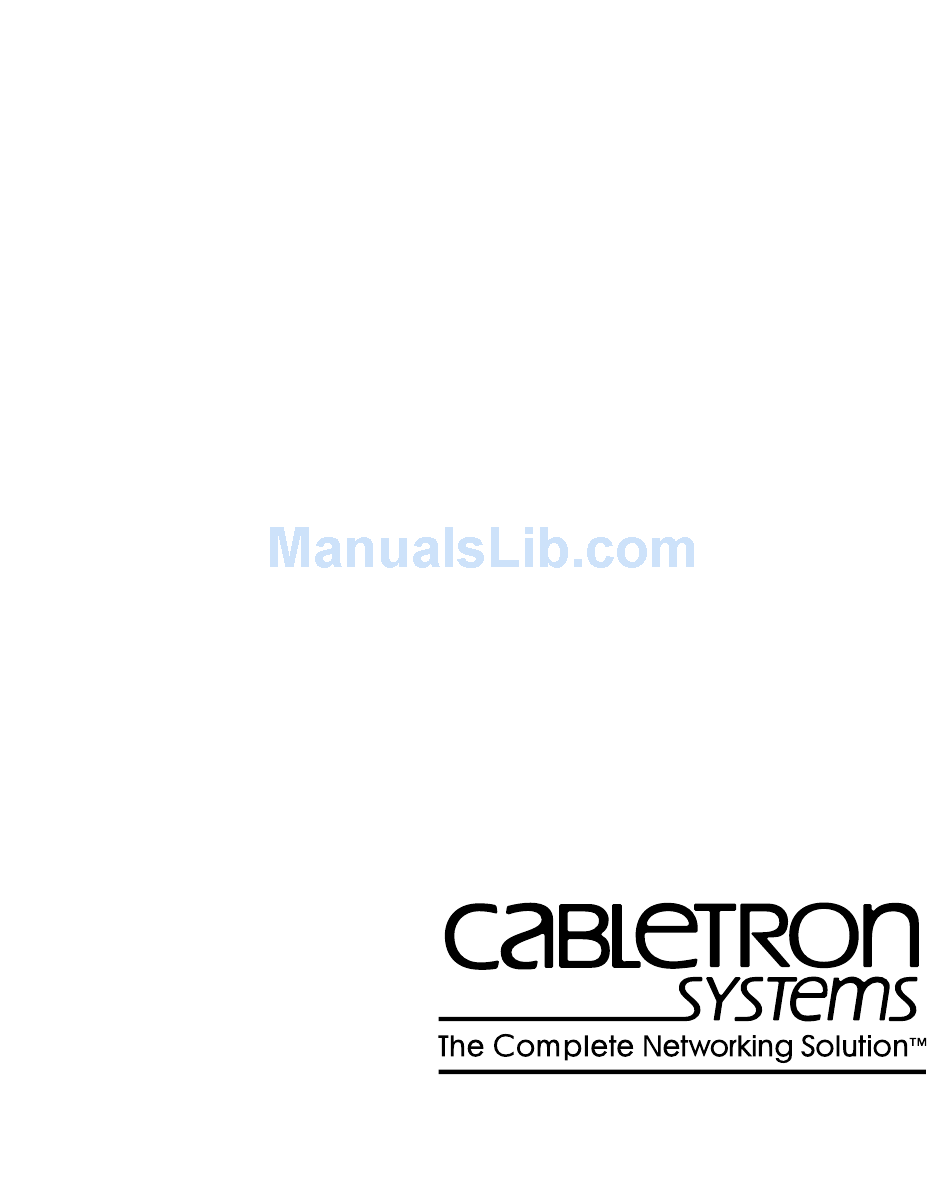

- Page 1 CTP100T COAXIAL TO TWISTED PAIR 10BASE-T MEDIA ADAPTER USER’S MANUAL CABLETRON SYSTEMS, P. O. Box 5005, Rochester, NH 03866-5005...
- Page 2 P.O. Box 5005, Rochester, NH 03866-5005 All Rights Reserved Printed in the United States of America Part Number: 9030124-02 August 1995 CTP100T, LAN-MD, MMAC, MRXI, ST-500, TPMIM, and TPT-T are trademarks of Cabletron Systems, Inc. LANVIEW and MiniMMAC are registered trademarks of Cabletron Systems, Inc.
-
Page 3: Fcc Notice
A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. NOTICE: To insure FCC and DOC compliance and proper operation of the CTP100T adapter transceiver, SHIELDED transceiver cables must be used. CTP100T USER’S MANUAL... -
Page 4: Vcci Notice
VCCI NOTICE This equipment is in the 1st Class Category (information equipment to be used in commercial and/or industrial areas) and conforms to the standards set by the Voluntary Control Council for Interference by Information Technology Equipment (VCCI) aimed at preventing radio interference in commercial and/or industrial areas. -
Page 5: Table Of Contents
CHAPTER 1 INTRODUCTION 1.1 Who Should Use This Manual... 1-1 1.2 Structure of This Manual ... 1-2 1.3 An Overview of the CTP100T Adapter... 1-2 1.3.1 Connections ... 1-3 1.3.2 Distance and Cable Type... 1-4 1.3.3 Receive and Transmit Functions ... 1-4 1.3.4... - Page 6 TABLE OF CONTENTS APPENDIX A SPECIFICATIONS Interface Connectors... A-1 System Characteristics ... A-2 Power Specifications... A-2 Environmental Specifications ... A-3 Service Specifications ... A-3 Physical Specifications... A-4 CTP100T USER’S MANUAL...
-
Page 7: Chapter 1 Introduction
To install the CTP100T adapter, you should have a general working knowledge of Ethernet or IEEE 802.3 type data communications networks and their physical layer components. -
Page 8: Structure Of This Manual
Chapter 2, Installation Requirements, contains the network and hardware requirements to install the CTP100T adapter. Chapter 3, Installation, describes how to install the CTP100T on a flat surface and connect it to a network. Chapter 4, Testing and Troubleshooting, describes the CTP100T adapter installation checkout procedure, and the LANVIEW LEDs and their function. -
Page 9: Connections
RJ45 Port LANVIEW LEDs 1.3.1 Connections The CTP100T adapter has an RJ45 port and a BNC port. The twisted pair segment is connected to the CTP100T RJ45 port. The thin-net segment connects to the BNC port, either directly, if terminating the segment internally, or with a T-connector, if terminating the segment externally. -
Page 10: Chapter 1: Introduction
10BASE-T requirements as described in Chapter 2. An IEEE 802.3, 10BASE-2 compliant thin-net segment of up to 100 meters (330 feet) long can be connected to the CTP100T adapter. This segment can support up to 10 nodes when using 50 ohm, RG-58A/U thin-net coaxial cable. -
Page 11: Lanview Leds
1.3.5 LANVIEW LEDs The CTP100T adapter has five LANVIEW LEDs that monitor network activity (link, collision present, receive, and transmit) and power status. These LEDs are described in Table 1-1. They serve as a useful tool to quickly diagnose physical layer problems. -
Page 12: Application
For information on these products, refer to the appropriate installation guides. The CTP100T adapter may be used to connect a thin-net segment with up to 10 nodes to a 10BASE-T segment. For example, a TPMIM 22/24/32/34, MRXI, or a MiniMMAC could be connected to an existing unused twisted pair cable. - Page 13 Coaxial Backbone AUI Cable MMAC-3 with TPMIM-22 Figure 1-2. Typical CTP100T Setup CTP100T USER’S MANUAL An Overview of the CTP100T Adapter Twisted Pair Wire CTP100T Adapter Coaxial Segment PC with Coaxial Interface 01242-02 Page 1-7...
-
Page 14: Related User Manuals
LAN-MD Ethernet Tester User’s Manual • 1.5 Getting Help If there is any additional support needed for the CTP100T adapter or if there are any questions, comments, or suggestions related to this manual, contact Cabletron Systems Technical Support: By Phone:... -
Page 15: Chapter 2: Installation Requirements
CHAPTER 2 INSTALLATION REQUIREMENTS This chapter lists the hardware and network requirements to install the CTP100T adapter on a network segment and the nodes to be attached to it. Note: These requirements along with the specifications described in Appendix A must be met to ensure satisfactory performance of the CTP100T adapter. - Page 16 Generally, the user does not need to be concerned about noise. If noise related data errors are suspected, it may be necessary to either reroute the cable or eliminate the source of the impulse noise. Page 2-2 CTP100T USER’S MANUAL...
-
Page 17: Coaxial Requirements
• The thin-net cable segment connected to the BNC port on the CTP100T adapter must be no longer than 100 meters (330 feet) in total length. • The far end of the thin-net cable segment must have a 50 ohm terminator. -
Page 18: Chapter 3 Installation
CHAPTER 2: INSTALLATION REQUIREMENTS • On a thin-net cable segment, the male end of the segment connects to the CTP100T adapter, either directly or via a T-connector. The BNC port has an external switch for selecting the termination. Place the switch in the... -
Page 19: Unpacking
This chapter describes how to connect the CTP100T adapter to your network. Ensure that all the requirements and specifications outlined in Chapter 2 and Appendix A are met before installing the CTP100T adapter. 3.1 Unpacking Before installing the CTP100T adapter, unpack and check the contents... -
Page 20: Chapter 3: Installation
CHAPTER 3: INSTALLATION 3.2 Installation If the CTP100T adapter is going to be mounted on a flat surface, pro- ceed to Section 3.2.1. Otherwise, proceed to Section 3.2.2 to install the CTP100T adapter. 3.2.1 Surface Mounting the CTP100T Adapter Using the contents of the accessory package, you can surface mount the CTP100T adapter. -
Page 21: Connecting To The Network
3.2.1, proceed to step 2 and note the Caution. Otherwise, proceed to step 1. Select an installation site for the CTP100T adapter that is within 6 feet of a USA standard (NEMA) 3-prong outlet. Caution: Take care not to cut any network or telephone lines during installation. - Page 22 10 - 15 V 800 mA MAX Twisted Pair Segment RJ45 Port Power Receptacle Power Cord Power Supply Plug the power cord side of the CTP100T adapter Plug the power supply Page 3-4 91 SERIES Thin-net Segment BNC Port Termination Switch CTP100T Adapter Figure 3-1.
- Page 23 Ensure that the power outlet has power. Check that the LNK LED on the CTP100T adapter is on. This indicates that the link has been made. If the LNK LED is off, perform the following steps until it turns on.
- Page 24 Before transmitting data through the CTP100T adapter, check the instal- lation as described in Chapter 4, Testing and Troubleshooting, to en- sure that the CTP100T adapter is properly connected to the network and that it is operating properly. Page 3-6...
-
Page 25: Chapter 4: Testing And Troubleshooting
LAN-MD, and a Cabletron Systems 10BASE-T Twisted Pair Transceiv- er, such as the TPT, TPT-T, or the TPT-4. To test the CTP100T adapter, refer to Figure 4-1 and proceed as follows: Connect a LAN-MD (such as a TPT), using an AUI cable... - Page 26 CHAPTER 4: TESTING AND TROUBLESHOOTING LAN-MD AUI Cable 10BASE-T Twisted Pair Segment (TPT) Crossed Over Twisted Pair Segment Figure 4-1. Checkout Configuration Page 4-2 CTP100T Adapter Thin-net Coax Segment Thin-net Coax Transceiver AUI Cable LAN-MD CTP100T USER’S MANUAL 01242-04...
- Page 27 The packets will be received and sent back from the SERVER LAN-MD that was left running on the other end of the segment. When the CTP100T adapter has successfully completed this test, the unit is ready for normal operation. If any failures were noted, please contact Cabletron Systems Technical Support.
-
Page 28: Using Lanview
LEDs to diagnose network problems and to determine which node or segment is faulty. The following discusses the function and purpose of each CTP100T LANVIEW LED shown in Figure 4-2. Page 4-4... - Page 29 Link OK (LNK) LED When this green LED is on, a link has been established between the CTP100T adapter and the device at the other end of the twisted pair seg- ment. This LED remains on as long as the link is maintained.
- Page 30 CHAPTER 4: TESTING AND TROUBLESHOOTING Collision Present (CLN) LED This red LED flashes when the CTP100T adapter detects a collision con- dition. The frequency of the flashes may increase as network activity in- creases, since more collisions are likely to occur. The flash of the LED is pulse-stretched for viewing effect.
-
Page 31: A.1 Interface Connectors
This appendix provides the specifications for the CTP100T adapter. A.1 Interface Connectors Twisted Pair Interface Internal Transceiver: Connector Type: Pin 1 Pin 2 Pin 3 Pin 4 No Connection Pin 5 No Connection Pin 6 Pin 7 No Connection Pin 8... -
Page 32: A.2 System Characteristics
APPENDIX A: SPECIFICATIONS A termination switch on the CTP100T can be used to provide an internal 50-ohm termination at the BNC receptacle. A.2 System Characteristics Since the CTP100T does not retime data, the operational limits of the CTP100T may be determined by individual system jitter. -
Page 33: A.4 Environmental Specifications
EN55022 Class A, FCC Part 15 Class A, and VCCI Class I. Caution: It is the responsibility of the person who sells the system that includes the CTP100T adapter to ensure that the total system complies with the allowable limits of conducted and radiated emissions. -
Page 34: A.6 Physical Specifications
A.6 Physical Specifications CTP100T adapter Height: Width: Depth: Weight: Transformer weight: Shipping weight: Page A-4 8.38 cm (3.3 in) 13.46 cm (5.3 in) 2.28 cm (0.9 in) 0.18 kg (0.4 lb) 0.39 kg (0.85 lb) 0.86 kg (1.9 lb) CTP100T USER’S MANUAL...
