4 Representative Systems

All Setcom Intercom Systems are delivered with a System Diagram specific to the components ordered. Be sure
to have this System Diagram in hand before starting your installation. If your intercom system was installed by the
apparatus original equipment manufacturer, the Setcom System Diagram should be included with your manual. If
you cannot locate the System Diagram specific to your installation, contact Setcom at 1-650-965-8020 ext. 603
and a copy can be emailed/faxed to you. On the following pages a number of the most commonly used system
configurations are shown.

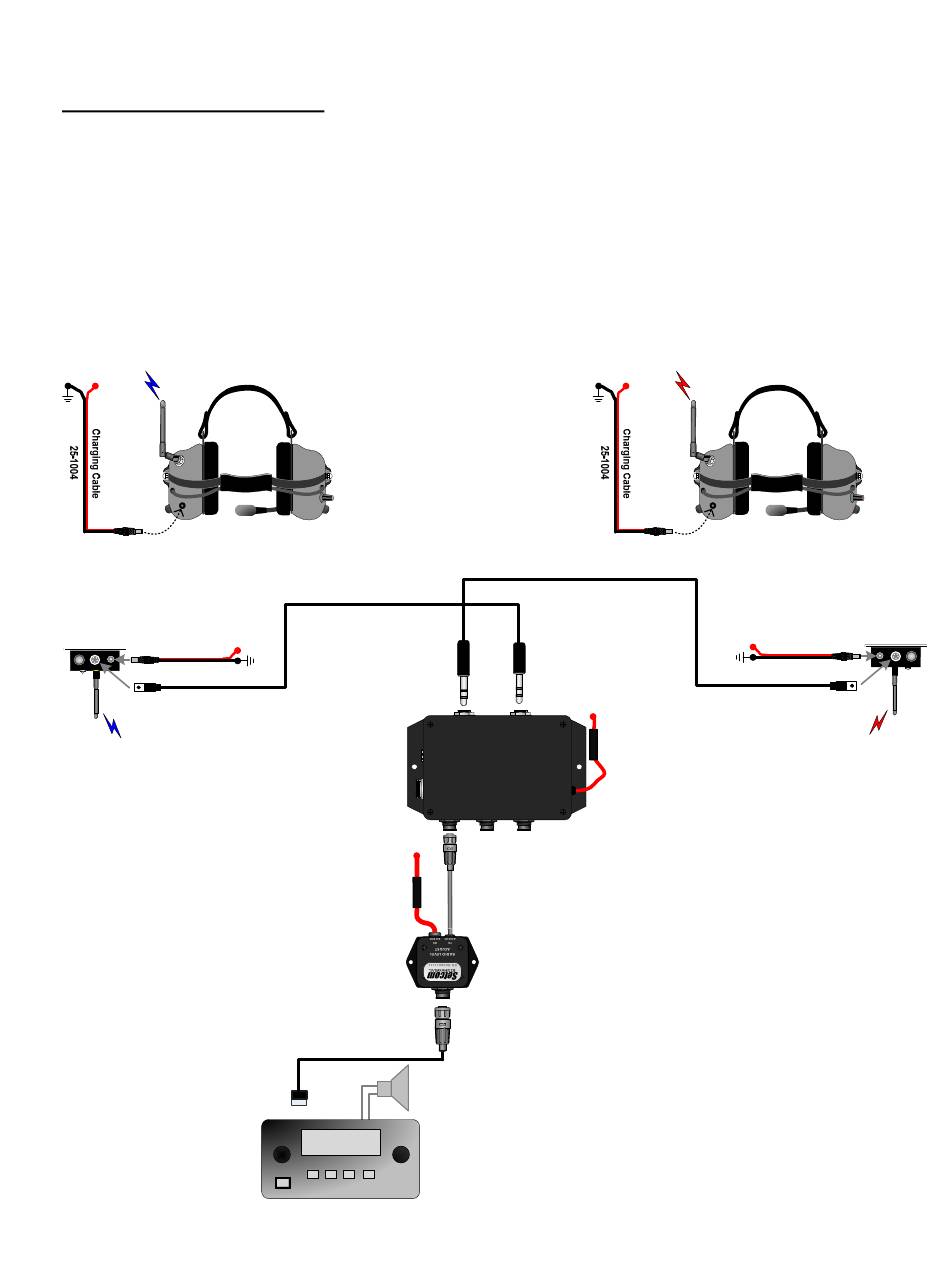

4.1 Two Crew Wireless

B+
Driver
(12Vdc)
GND
CSB-900W3
Wireless Headset
B+
(12Vdc)
900W3-BASE
25-1004
25-0735-xx
GND
IM-900
Intercom/Mixer
B+
(12Vdc)
1 Amp
Fuse
RIM-900-BAL
Radio Interface Module
Radio Cable
468.725
Radio
GND
25-0735-xx
B+
(12Vdc)
HEADSET HEADSET
1 Amp Fuse
SYSTEM 900
FOOTSWITCH
POWER
PUMP
RADIO REMOTES
PANEL
B+
Captain
(12Vdc)
CSB-900W3
Wireless Headset
B+
(12Vdc)
25-1004
GND
18
900W3-BASE
