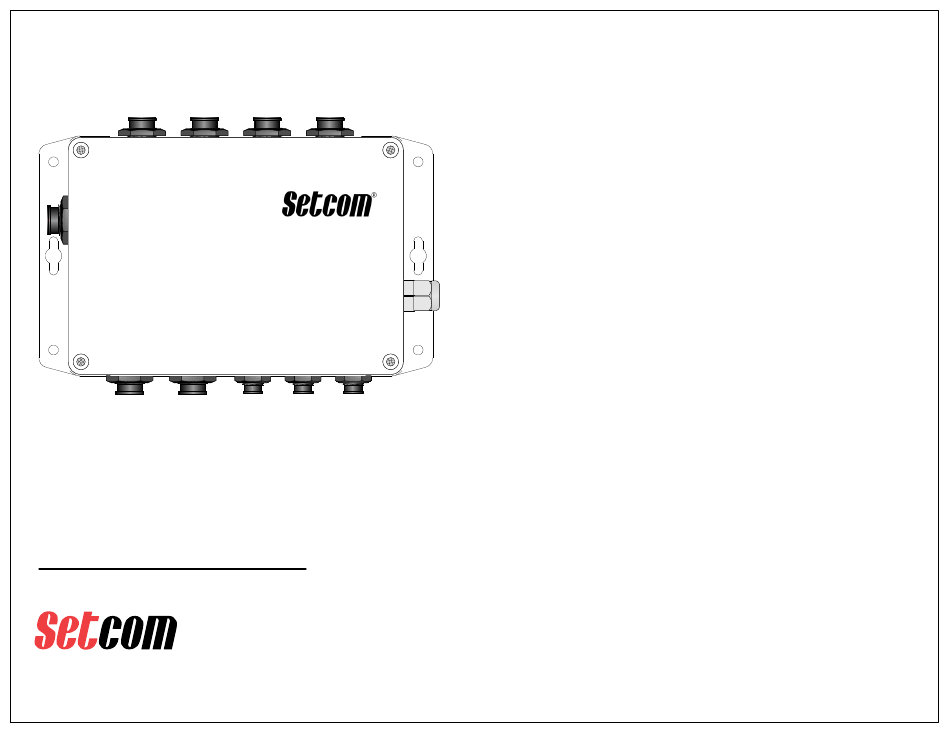

IM-977
INSTALLATION AND USERS GUIDE
HEADSET 1 HEADSET 2 HEADSET 3 HEADSET 4
RRC
RADIO
REMOTES
Questions or technical issues? Please call:
TECH SUPPORT: 650-965-8020 ext. 703
®
CORPORATION
3/29/16 SBH
POWER
POWER
AUX
FOOTSWITCH
A
B
AUDIO
3019 Alvin DeVane Blvd.
Ste. 560
Austin, TX 78741
Phone: (650) 965-8020
The IM-977 is a Waterproof Radio Interface and full-duplex
Intercom with the following features:
· Single Radio Interface, Fully Adjustable RX/TX levels,
use with RCB or RC cable types
· 4 Radio Transmit Circuits, TRS Headset Jacks
(extension TX station RS-960 is available)
· Remotes Port for Up to 4 Intercom-Only Positions
· 2 PTT Footswitch or Pushbutton Station Ports:
A: assignable to HS1 or HS2
B: assignable to HS3 or HS4
(Footswitch is FS-950, Pushbutton is PBS-950)
· AUX Audio Input (requires 25-0088 cable)
(see notes on page 3)
· Automatic AUX Muting on PTT or Radio RX,
3-second delayed recovery from AUX Mute
(either PTT or RX mute function can be turned off)
· Fully Isolated DC Power for Noise Immunity, operates
on 12 to 24 Volts DC
· TX Audio PTT Lockout, only 1 user can transmit at any
time, and only that users' voice is sent to radio
· Can connect to 2 radios with RRC-950
(requires 25-0108 cable)
IM-977_UserGuide_REV_C.pdf
Page
1
of
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the IM-977 and is the answer not in the manual?

Questions and answers

Summary of Contents for Setcom IM-977

  • Page 1 The IM-977 is a Waterproof Radio Interface and full-duplex IM-977 Intercom with the following features: INSTALLATION AND USERS GUIDE · Single Radio Interface, Fully Adjustable RX/TX levels, use with RCB or RC cable types HEADSET 1 HEADSET 2 HEADSET 3 HEADSET 4 ·...
  • Page 2 AUDIO Connect the DC Power cable to a 12 to 24 VDC power connection. Mount the IM-977 using the 4 small The IM-950 has an internal 1A mounting holes or the 2 larger holes on ATO fuse, but it is recommended to the enclosure flanges.
  • Page 3 Ended line level audio such as that from an audio device headphone output, or TECH SUPPORT: 650-965-8020 ext. 703 portable CD player can be connected to the IM-977 certain types of radios with Single-Ended through use of the 25-0088-ISO Cable and a 3.5mm audio out such as a scanner.
  • Page 4 Loosen top cover screws and carefully RX RANGE IM-977 Adjustments remove cover to make adjustments RX Audio, Muting Control (shown enlarged) RX LEVEL RX RANGE · To increase RX Level, set S1 to ON · To decrease RX level, set S2 to ON ·...
  • Page 5 SW1. The factory default is to assign input A (shown enlarged) to HEADSET 1 and input B to HEADSET 3. Call Setcom Tech Support for assistance if needed. These settings can be changed as follows: Questions or technical issues? Please call: ·...
