Note: The stacking feature requires that all stacking module ports be connected and the
switches powered on. If one stack link is not connected, or if a switch is powered
off, the stack will not function.

Connecting to a Power Source

To connect a switch to a power source:
1. Insert the power cable plug directly into the AC receptacle located at the back
of the switch.
2. Plug the other end of the cable into a grounded, 3-pin socket, AC power source.
Note: For International use, you may need to change the AC line cord. You must use a
line cord set that has been approved for the receptacle type in your country.
3. Check the front-panel LEDs as the device is powered on to be sure the PWR
LED is lit. If not, check that the power cable is correctly plugged in.
4. If you have purchased a Redundant Power Unit, connect it to the switch and to
an AC power source now, following the instructions included with the package.

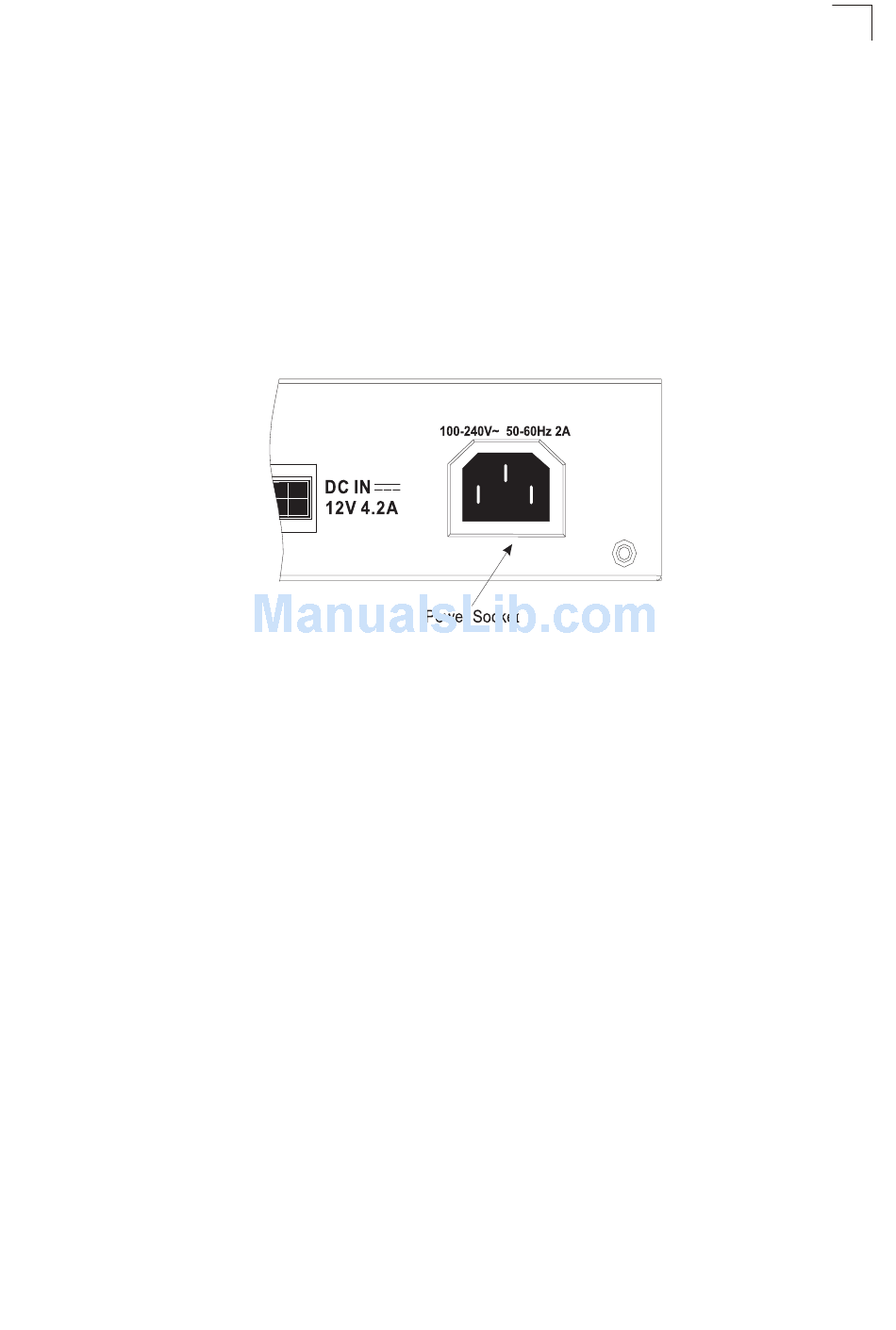

Figure 3-7. Power Receptacles

Connecting to a Power Source
