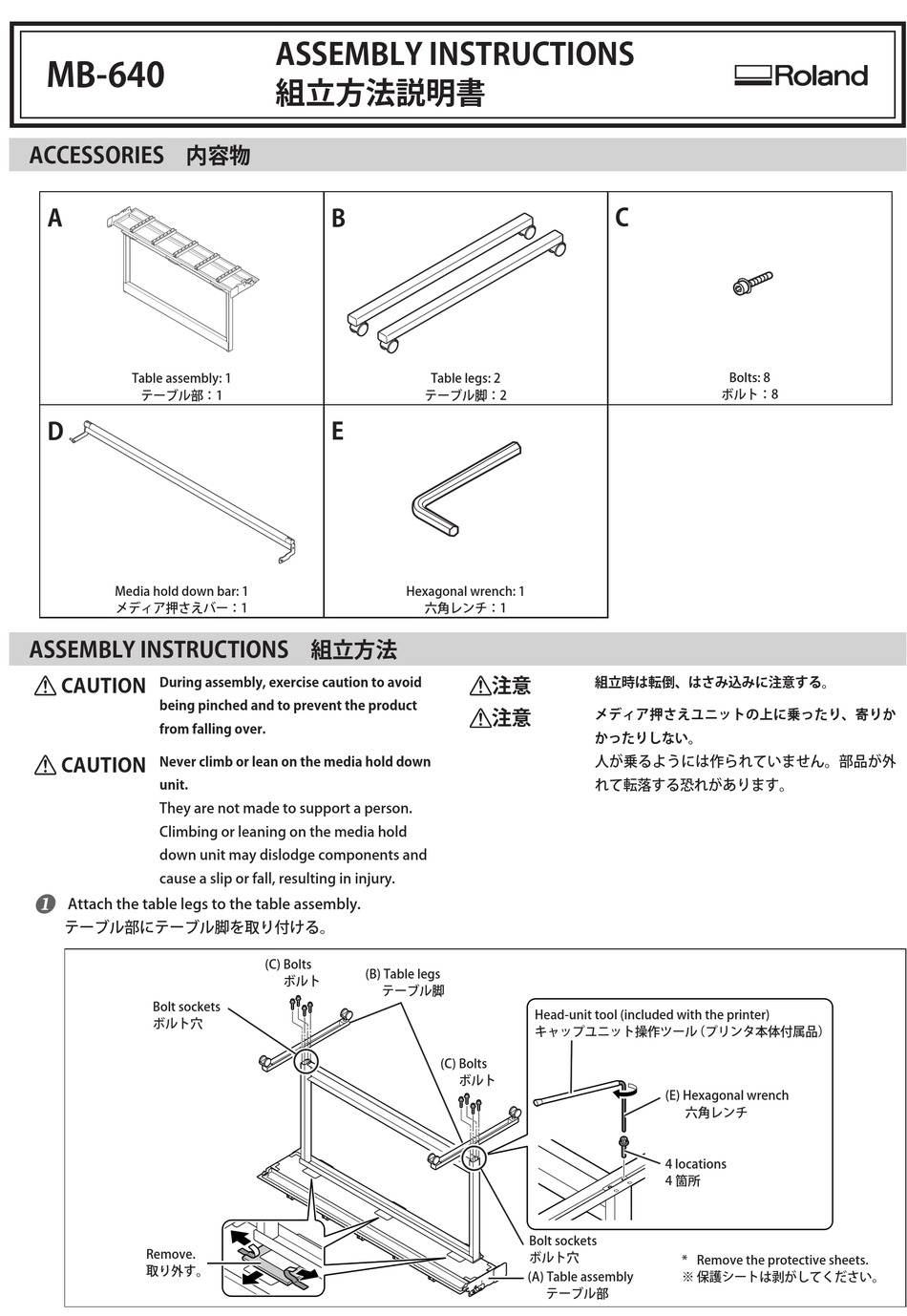

MB-640
ACCESSORIES 内容物
A
Table assembly: 1
テーブル部:1
D
Media hold down bar: 1
メディア押さえバー:1
ASSEMBLY INSTRUCTIONS 組立方法
CAUTION
During assembly, exercise caution to avoid
being pinched and to prevent the product
from falling over.
CAUTION
Never climb or lean on the media hold down
unit.
They are not made to support a person.
Climbing or leaning on the media hold
down unit may dislodge components and
cause a slip or fall, resulting in injury.
Attach the table legs to the table assembly.
テーブル部にテーブル脚を取り付ける。
Bolt sockets
ボルト穴
Remove.
取り外す。
ASSEMBLY INSTRUCTIONS
組立方法説明書
B
Table legs: 2
テーブル脚:2
E
Hexagonal wrench: 1
六角レンチ:1
(C) Bolts
(B) Table legs
ボルト
テーブル脚
注意
組立時は転倒、はさみ込みに注意する。
注意
メディア押さえユニットの上に乗ったり、寄りか
かったりしない。
人が乗るようには作られていません。部品が外
れて転落する恐れがあります。
Head-unit tool (included with the printer)
キャップユニット操作ツール (プリンタ本体付属品)
(C) Bolts
ボルト
Bolt sockets
ボルト穴
(A) Table assembly
テーブル部
C
Bolts: 8
ボルト:8
(E) Hexagonal wrench
六角レンチ
4 locations
4 箇所
* Remove the protective sheets.
※ 保護シートは剥がしてください。
