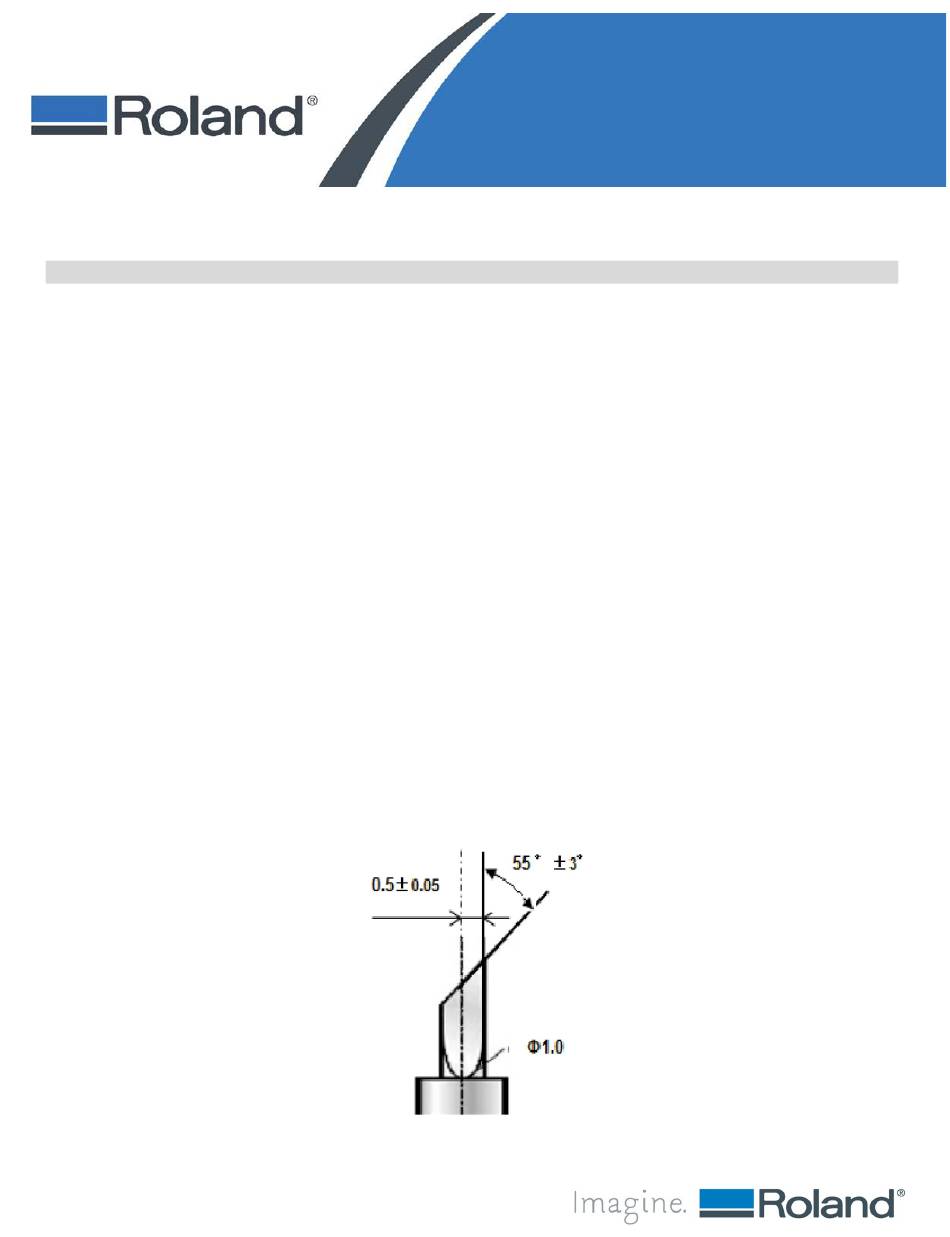

Summary
This document teaches the basics of cutter blade knowledge and offers suggestions for troubleshooting cutting issues.
Cutter Blade Design
Below is a summary of the cutter blade design.
•
0.5 ±0.05 Offset: Distance from the center of the blade to the edge of the blade. The offset determines the
blade's turning radius and how it compensates for distance while turning corners. Offset is specified by the
blade manufacturer.
•
55° Angle: The angle is specified in the measurement of degrees. The blade below is a 55-degree blade.
•
Ø1.0 Circumference: Lists the circumference of the blade tip.
1
Cutter Blade
Reference Guide
October 20, 2017
Advertisement
Table of Contents
Related Manuals for Roland ZEC-U5032
Summary of Contents for Roland ZEC-U5032
- Page 1 Cutter Blade Reference Guide October 20, 2017 Table of Content Summary _________________________________________________________________ 1 Cutter Blade Design _________________________________________________________ 1 Blade Extension - CutContour _________________________________________________ 2 Blade Extension - PerfCutContour ______________________________________________ 2 Blade Settings _____________________________________________________________ 3 Troubleshooting ___________________________________________________________ 3 Blade SKUs ________________________________________________________________ 4 Summary This document teaches the basics of cutter blade knowledge and offers suggestions for troubleshooting cutting issues.
- Page 2 • No Groove in Platen o The blade is extended the same length as CutContour cutting for Roland devices that do not have a designated groove for perforated cutting. The reason is the blade makes contact with the blade protection strip and overextending the blade can severely damage the cutter protection strip.
-
Page 3: Troubleshooting
Cutter Blade Reference Guide Blade Settings Below lists the optimal blade settings by application. These are general guidelines only and it is always recommended to send a cut test before sending any jobs. ≦ 20cm/s Material Cutting Force Cutting Speed ≦... - Page 4 Image C demonstrates too much offset (flaps on corners). Blade SKUs Below lists the blades available from Roland and which applications the blade is best suited for. Please note, the list of applications is a general guideline only. Cemented Carbide Premium Blades •...
- Page 5 Floor Heat Vinyl ≤ Vinyl ≥ Window SKU Angle Cardboard Flock Magnetic PerfCut Reflective Sandblast Twill Laminate Transfer 3 mil 3mil Tint ● USA‐C125‐5 45° ● ...
