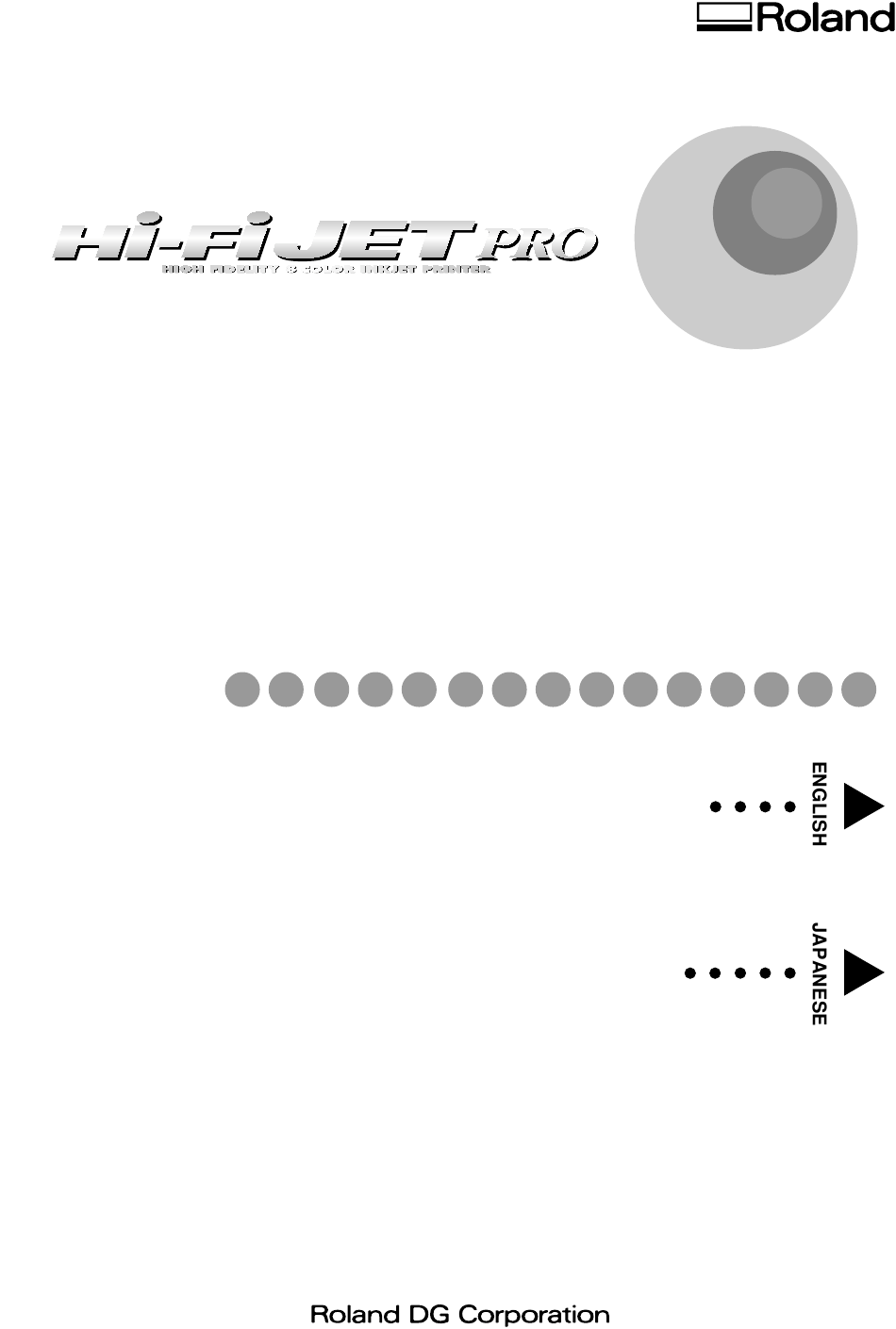

Unpacking, Assembly,
and Installation Guide
 This User's Manual is intended for FJ-600, FJ-500, and FJ-400.
Page 1 to 10
開梱・組立・設置  方法
    本書は、FJ-600・FJ-500・FJ-400  共通取扱説明書です。
Page 11 to 20
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FJ-400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Roland FJ-400

  • Page 1 FJ-600 FJ-500 FJ-400 Unpacking, Assembly, and Installation Guide  This User's Manual is intended for FJ-600, FJ-500, and FJ-400. Page 1 to 10 開梱・組立・設置  方法     本書は、FJ-600・FJ-500・FJ-400  共通取扱説明書です。 Page 11 to 20...
  • Page 2: Table Of Contents

    U.S. Patent Office. Other company names and product names are trademarks or registered trademarks of their respective holders. Copyright © 2001 Roland DG Corporation About This Manual This document describes the procedures from unpacking to installation of the FJ-600/500/400.
  • Page 3: How To Unpack The Fj-600/500/400

    (388 lb.) for the FJ-600,166 kg (365.9 lb.) for the FJ-500, and 154 kg (339.5 lb.) for the FJ-400.) 1-1 Overview of Packed Materials The FJ-600/500/400 is packed as shown below. Outer carton (top) Accessories box Stand packing carton...
  • Page 4: Open The Stand Packing Carton

    1-2 Open the Stand Packing Carton and Accessories Box Accessories Packing Packing material Packing material material Caster flats (2 pcs.) Packing material Media guide Stand leg Packing material Accessories box Media cover Stand packing carton 1-3 Take Out the Unit Protective pad (left) Protective pad (right) FJ-600/500/400 main unit...
  • Page 5: Checking The Accessories

    2 Checking the Accessories 2-1 Check the Accessories Box The accessories box contains the following items. Stays : 2 Bolts (Large) : 14 Bolts (Small) : 4 Washers : 6 (For place the media guide) Hexagonal wrench (M6) : 1 Pipe : 1 Media flanges : 2 Flange retaining pins : 2...
  • Page 6: Check The Manuals

    2-2 Check the Manuals The manuals include the following items. ® Roland COLORCHOICE User’s manual : 1 Cleaning kit : 1 Replacement blade for separating knife : 1 Roland-PrintServer Roland-PrintServer CD-ROM : 1 for Macintosh users : 1...
  • Page 7: Assembling The Stand And The Machine

    2246 mm [W] x 740 mm [D] x 1241 mm [H] (88-7/16 in. [W] x 29-3/16 in. [D] x 48-7/8 in. [H]) FJ-400: 1992 mm [W] x 740 mm [D] x 1241 mm [H] (78-7/16 in. [W] x 29-3/16 in. [D] x 48-7/8 in. [H])
  • Page 8 Set the stand upright so that the casters are at the bottom, and place the machine on the stand. The front and rear of the stand are as shown in the figure. * Take care to prevent from catching on the bottom plug at the bottom surface on the right side of the...
  • Page 9 Place the media guide on the stays and secure it in place using the included small bolts. Orientation of the media guide Rear Front Media guide Media guide Bolts (Small) Long Short * If the short side is oriented toward the back of the machine, roll material may fall.
  • Page 10: Setting Up

    (365.9 lb.) for the FJ-500, and 154 kg (339.5 lb.) for the FJ-400.) NOTICE Never install the unit in any of the following situations, as it could result in breakdown or faulty operation: Places where the installation surface is unstable or not level.
  • Page 11: Removing The Protective Material

    5 Removing the Protective Material The protective material shown below is attached to the FJ-600/500/400 when it is shipped from the factory. When you have finished installing the machine, remove all protective material. Front 1) Peel off the tape. 2) Pull straight back toward you to extract.
  • Page 12: 本書について

    ®   は、U.S.  Patent  Office  に登録されています。 その他、記載されている会社名、製品名は、各社の登録商標または商標です。 Copyright  ©  2001  Roland  DG  Corporation 本書について 本書は、F J - 6 0 0 / 5 0 0 / 4 0 0 の開梱から設置までの方法について書かれています。 F J - 6 0 0 / 5 0 0 / 4 0 0 の操作方法  および  安全に関する注意事項については、同梱のユーザーズマニュアルをご覧ください。...
  • Page 13: 開梱方法

    本体やスタンドが落下し、けがをすること 故障の原因となります。 があります。 本体背面 本体背面 (梱包総重量は、 左側 右側 FJ-600:  176  kg、 FJ-500:  166  kg、 FJ-400:  154  kg です。) 1-1   梱包概要 F J - 6 0 0 / 5 0 0 / 4 0 0 は、次のように梱包されています。 外装箱 (上) 付属品箱 スタンド梱包箱 本書 保護パッド (左) 梱包材...
  • Page 14: スタンド梱包箱と付属品箱を開ける

    1-2   スタンド梱包箱と付属品箱を開ける 付属品 梱包材 梱包材 梱包材 キャスター (2個) 梱包材 メディアガイド スタンド脚 梱包材 付属品箱 メディアカバー スタンド梱包箱 1-3   本体を取り出す 保護パッド (左) 保護パッド (右) FJ-600/500/400 本体 マニュアルセット インクカートリッジ 外装箱 (下)
  • Page 15: 付属品の確認

    2  付属品の確認 2-1   付属品箱の確認 付属品箱には、以下のものが入っています。 ワッシャー  :  6 ステイ  :  2 ボルト  (大)  :  14 ボルト (小) : 4 (メディアガイド用) 六角レンチ  (M6)  :  1 パイプ  :  1 メディアフランジ  : 2 フランジ固定用ピン  : 2 内は本書の説明中で使用する付属品です。 廃液ボトル  :  1 電源コード  :  1 電源プラグアダプタ  :  1 メディアクランプ  :  2...
  • Page 16: マニュアルセットの確認

      :  1 ユーザーズマニュアル  :  1 用紙切り離し用ナイフ 保証書  :  1 替え刃  :  1 お客様登録カード  :  1 クリーニングキット  :  1 Roland-PrintServer Roland-PrintServer      ( クリーニングスティック: 1 0 / CD-ROM  :  1     Macintoshをお使いの ピンセット:1/スポンジ:10) お客様へ  :  1 2-3   インクカートリッジの確認...
  • Page 17: スタンドと本体の組み立て

    3  スタンドと本体の組み立て 開梱・設置・移動は4人以上で行ってく 本体をスタンドにセットする時、指を ださい。 挟まないようにしてください。 本体やスタンドが落下し、けがをすること けがをすることが があります。 あります。 (梱包総重量は、 FJ-600:  176  kg、 FJ-500:  166  kg、 FJ-400:  154  kg です。) 本体とスタンドを付属のボルトで固定 してください。 本体が落下し、 けがをすること があります。 本体背面 本体背面 お願い 本体を持ち上げるときは、図の部分を 左側 右側 持たないでください。 故障の原因となります。 ボトムプラグを本体から取り外すときは、傾けないように真っ直ぐ下に取り外してください。ボトム プラグ内に溜まっている廃液がこぼれることがあります。 はじめにスタンドを組み立て、その上に本体を取り付けます。 本体とスタンドを組み付けたときの外形寸法は、次のとおりです。 F J - 6 0 0 : 2500 ...
  • Page 18 キャスターを下にしてスタンドを起こし、本体を上にのせます。 スタンドの前後は図のとおりです。 本体右側底面にある ボトムプラグに、 引っかけないように してください。 本体背面のフレームを、 スタンドの金具に合わせ 前面側 てください。 本体とスタンドを付属のボルト(大)で固定します。 左右3箇所ずつ ワッシャー ボルト (大) 本体背面の図の位置にステイをはめ込みます。 本体背面左側 本体背面右側 ステイ ステイ...
  • Page 19 ステイの上にメディアガイドをのせ、付属のボルト(小)で固定します。 メディアガイドの向き 本体背面 本体前面 メディアガイド メディア ガイド 長い方 短い方 ボルト (小) *短い方を本体背面側にすると、 ロール紙が落下することがあり ます。 固定具にメディアフランジを通し、フランジ固 メディアフランジ 固定具 定用ピンで固定します。 メディアフランジの向きは、取り付けるシート の芯径に合わせてください。 凹凸を合わせる 2 in. 3 in. 本体背面左側 本体背面右側 フランジ固定用ピン 本体背面の図のピンに、メディアカバーをセットします。 メディアカバー ※ボトムプラグは、移送時 本体右側底面にあるボトムプラグを取り外し、 に必要ですので捨てない 廃液ボトルを矢印の方向にねじ込みます。本体 でください。 側とボトル側のねじを合わせた状態で、過剰な 力をかけずに回してください。 ボトムプラグ 廃液ボトルは、本体を移送するときや、溜まっ ボトムプラグは、傾けな たインクを処分するとき以外、常時取り付けて いように真っ直ぐ下に取 廃液ボトル おいてください。...
  • Page 20 4  設置 開梱・設置・移動は4人以上で行ってく 水平で安定した場所に設置してくださ ださい。 い。 本体やスタンドが落下し、けがをすること 本体が転倒し、けがをすることがありま があります。 す。 (梱包総重量は、 FJ-600:  176  kg、 FJ-500:  166  kg、 FJ-400:  154  kg です。) お願い 次のような場所に設置しないでください。故障や誤動作の原因になります。 ●不安定な場所に設置しないでください。 ●電気的な雑音の多い場所でのご使用は避けてください。 ●湿気やほこりの多い場所でのご使用は避けてください。 ●使用中熱を発生しますので、放熱効果の悪い場所には設置しないでください。 ●振動の激しい場所には設置しないでください。 ●直射日光等の強い光が当たる場所には設置しないでください。 スタンドの足 および メディアカバーの上にのらないでください。破損することがあります。 本体の上にものをのせないでください。故障の原因となります。 設置には以下のスペースを確保してください。 FJ-600: 3500 mm (幅)  X  2000 mm (奥行き)  X  1700 mm (高さ) FJ-500: 3300 mm (幅)  X  2000 mm (奥行き)  X  1700 mm (高さ) FJ-400: 3000 mm (幅)  X  2000 mm (奥行き)  X  1700 mm (高さ)
  • Page 21: 保護材の取り外し

    5  保護材の取り外し 工場出荷時、F J - 6 0 0 / 5 0 0 / 4 0 0 には以下の保護材が取り付けられています。設置が終わったら、全ての保護材を取り外し てください。 本体前面 1) テープを剥がす 2) まっすぐ手前に   引き抜く 3) 固定具を取り外す 本体背面 4) 取り外す 5) 3)で外した固定具を 取り付ける 開梱・組立・設置が完了したら、ケーブルを接続します。接続方法については、同梱のユーザーズマニュアル「接続する」 をご覧ください。...
  • Page 22 R2-010511...
