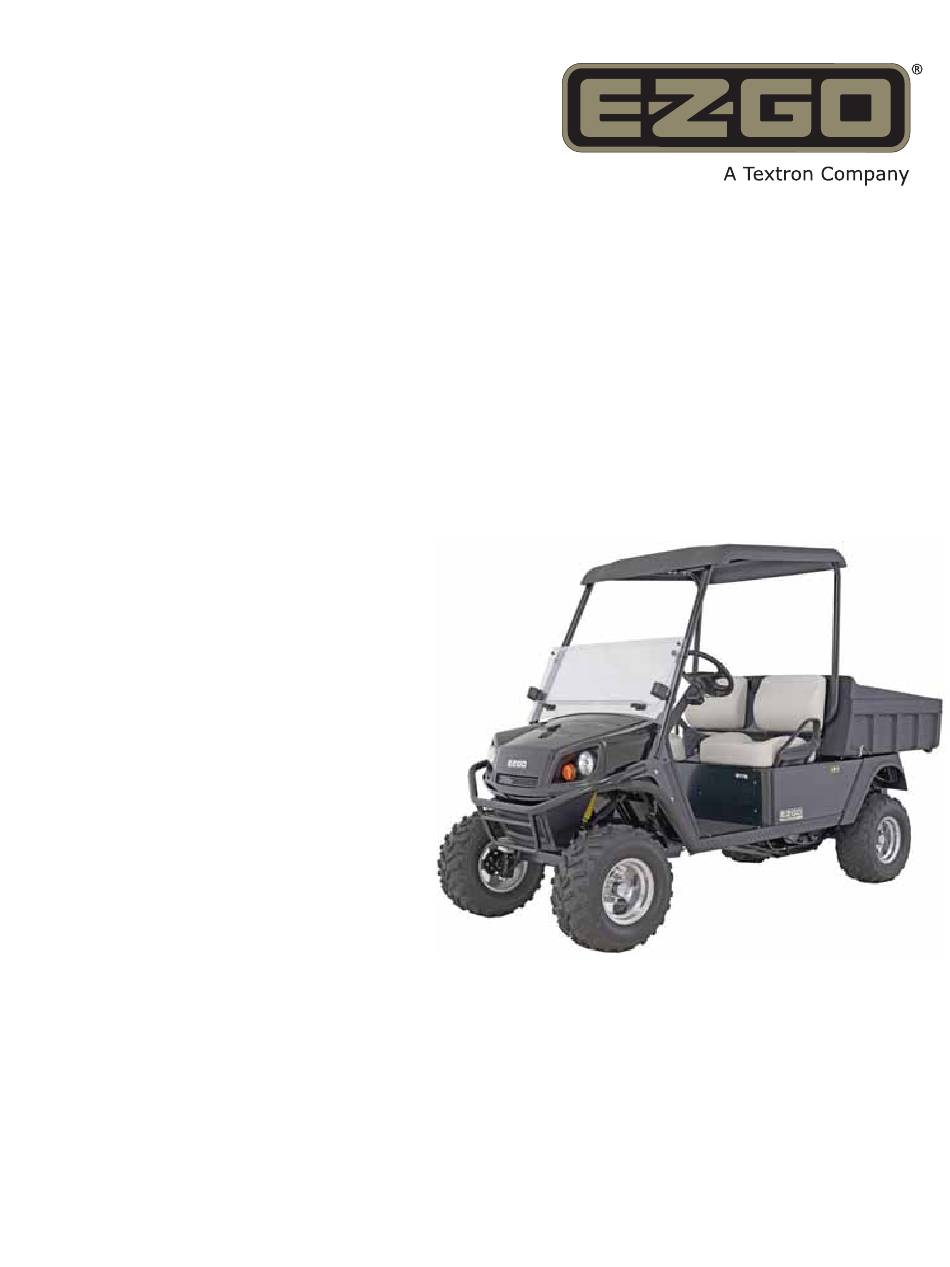

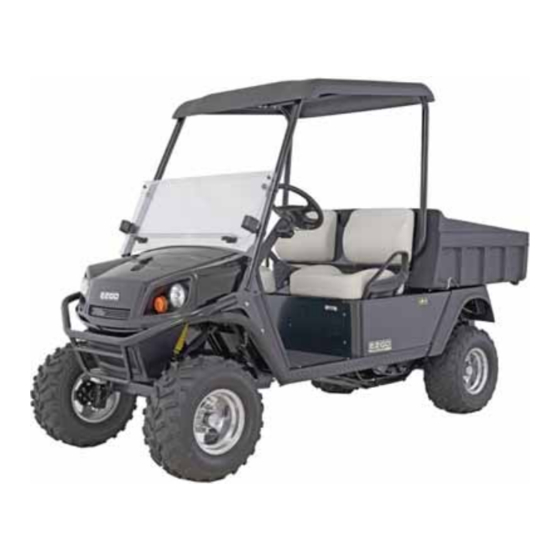

  • Page 1 Owner’s Guide 622021-GB ISSUED JULY 2011 REVISED NOVEMBER 2011...
  • Page 2 WELCOME Thank you for purchasing this vehicle. Before driving the vehicle, we ask you to spend some time reading this Owner’s Guide. This guide contains the information that will assist you in maintaining this highly reliable vehicle. Some illustrations may show items that are optional for your vehicle. This guide covers the operation of several vehi- cles;...
  • Page 3 TO CONTACT US E-Z-GO Division of Textron Inc. 1451 Marvin Griffin Road. Augusta, Georgia, USA 30906-3852 North America: Technical Assistance & Warranty PHONE: 1-800-774-3946 FAX: 1-800-448-8124 Service Parts PHONE: 1-888-GET-EZGO (1-888-438-3946) FAX: 1-800-752-6175 International: PHONE: 001-706-798-4311 FAX: 001-706-771-4609 Page i...
  • Page 4 FOREWORD Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. This vehicle has been designed and manufactured in the United States of America (USA) as a ‘World Vehicle’. The Standards and Specifications listed in the following text originate in the USA unless otherwise indicated.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SECTION PAGE NO. SAFETY....................................1-1 GENERAL SPECIFICATIONS............................. 2-1 INTRODUCTION.................................. 3-1 OPERATING PROCEDURES .............................. 4-1 MAINTENANCE................................... 5-1 DELCARATION OF CONFORMITY ........................
  • Page 6 TABLE OF CONTENTS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: Page iv...

  • Page 7: Safety

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. SAFETY................................. 1-3 NOTICES, CAUTIONS, WARNINGS, AND DANGERS..................1-3 GENERAL ................................1-5 GENERAL OPERATION ............................1-5 MAINTENANCE ..............................

  • Page 8: Safety

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 1 - 2...

  • Page 9: Notices, Cautions, Warnings, And Dangers

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SAFETY For any questions on material contained in this manual, contact an authorized representative for clarification. Read and understand all labels located on the vehicle. Always replace any damaged or missing labels. On steep hills it is possible for vehicles to coast at greater than normal speeds encountered on a flat surface.
  • Page 10 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Engine exhaust from this product contains chemicals known, in certain quantities, to cause cancer, birth defects, or other reproductive harm. The exhaust emissions of this vehicles’...

  • Page 11: General

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. GENERAL All vehicles can be used for a variety of tasks beyond the original intended use of the vehicle; therefore, it is impossible to anticipate and warn against every possible combination of circumstances that may occur.

  • Page 12: Maintenance

    SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. • apply service brake to control speed on steep grades • maintain adequate distance between vehicles • maintain adequate distance between vehicles •...

  • Page 13: Labels And Pictograms

    28203G01 74093-G01 74093G01 WARNING Windshields do not 75696G01 provide protection 75696G01 from golf balls or other ying objects. www.ezgo.com 608862 EGWHL14 250 l bs. WARNING 114 kg 4 i n . 10 c m Keep entire body 14° 25% 35980G01 inside car.
  • Page 14 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. WARNING WARNING READ MANUAL FOR MAXIMUM LOAD BED CAPACITY. MAXIMUM RAMP/HILL READ MANUAL SECURE LOAD AS FAR FORWARD XXX lbs.
  • Page 15 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. CLEAN UP GASOLINE DO NOT EXPOSE SPILLS WITH WATER TO FLAME BEFORE STARTING ENGINE UNLEADED DO NOT GASOLINE DISPOSE OF BATTERIES...
  • Page 16 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. KEEP CLEAR OPERATE HAND OR FROM FINGERS CAN DRIVERS SIDE BE TRAPPED ONLY POSITION KEEP ARMS AND LEGS POSITION WITHIN VEHICLE HEADLIGHTS...
  • Page 17 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. ENGINE CRANKING START POSITION REAR DIFFERENTIAL LOCK SWITCH PULL HANDLE UP TO ENGAGE PARK BRAKE FRONT DIFFERENTIAL LOCK SWITCH. WARNING READ OWNER'S MANUAL BEFORE ENGAGING FRONT DIFFERENTIAL...
  • Page 18 SAFETY Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 1 - 12...

  • Page 19: General Specifications

    GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. Vehicle Specifications ..............................2 - 3 Vehicle Dimensions ................................. 2 - 4 Vehicle Incline Information and Turning Diameter ......................2 - 5 2 - 1...
  • Page 20 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 2 - 2...
  • Page 21 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. MODEL: TERRAIN 1500 TYPE: GASOLINE POWERED TRUCK MODEL YEAR: 2012 Part No:. 618860 PRODUCT SPECIFICATION CONFIGURATION HIGHLIGHTS Engine: 16 hp (11.9 kW) rated, 4 cycle, 29.2 ci (480 cc) V-Twin, air-cooled Vanguard Valve Train:...
  • Page 22 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. 110.5 in. (281.0 cm) 18 in. (46.0 cm) 49.0 in. (125.0 cm) 10.5 in. (27.0 cm) 34 in.
  • Page 23 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TURNING CLEARANCE DIAMETER Approx. 23.5 ft (7.2 m) 2 - 5...
  • Page 24 GENERAL SPECIFICATIONS Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 2 - 6...

  • Page 25: Introduction

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. FEATURES..................................3-3 General Information ....................................3-3 Key Switch / Headlight Switch..................................3-3 Low Oil Pressure Indicator Light ................................. 3-4 Fuel Gauge .........................................
  • Page 26 INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 3 - 2...

  • Page 27: Features

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. FEATURES General Information If the vehicle is equipped with factory installed custom accessories, some accessories remain operational with the key switch in the ‘OFF’...

  • Page 28: Low Oil Pressure Indicator Light

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. To prevent inadvertent operation of the vehicle when left unattended, the key should be turned to the ‘OFF’ position and removed.

  • Page 29: Differential Lock

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Parking Choke Brake 7. Differential Lock The rear drive axle is equipped with a manually operated locking differential.

  • Page 30: Hip Restraint - Front

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. 12. Hip Restraint - Front The front hip restraints are designed to help keep the occupants properly positioned in the event of sudden vehicle position changes.

  • Page 31: Glove Box

    INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. 14. Glove Box A passenger-side locking glove box is standard, driver-side is offered as an option. A separate key is used for the locking glove boxes.
  • Page 32 INTRODUCTION Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 3 - 8...

  • Page 33: Operating Procedures

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. SERIAL NUMBER LOCATION ............................4-3 BEFORE INITIAL USE ................................ 4-4 OPERATING THE VECHILE ............................... 4-5 RUN - IN ....................................
  • Page 34 OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 4 - 2...

  • Page 35: Serial Number Location

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SERIAL NUMBER LOCATION Two serial number and manufacture date code plates are on the vehicle. One is placed on the body below the front, driver side of the seat.

  • Page 36: Before Initial Use

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. BEFORE INITIAL USE Record the four digit key number and store in a safe place. Individual keys can only be replaced if the key number is known.

  • Page 37: Operating The Vechile

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. OPERATING THE VEHICLE Improper use of the vehicle or the lack of proper maintenance may result in damage or decreased performance. Read and understand the following warnings before attempting to operate the vehicle.

  • Page 38: Cold Starting

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Check the oil level per the Periodic Service Schedule. Add oil if the level on the dipstick indicates that oil is in the add oil range.

  • Page 39: Starting And Driving

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. STARTING AND DRIVING To reduce the possibility of roll-back which could result in severe injury or vehicle damage, do not release service brake until engine has started.

  • Page 40: Coasting

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. must be charged using a 12V charger that is rated at 10 amps or less. Observe all instructions provided by the man- ufacturer of the charger.

  • Page 41: Battery

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. BATTERY Excessive use of accessories may drain the battery and leave insufficient reserve to start the vehicle. The vehicle uses a combination starter/generator to both start the engine and charge the battery.

  • Page 42: Dump Bed

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. DUMP BED Be careful when loading the vehicle. Secure loads to prevent shifting. Do not overload vehicle. A dump bed warning label is affixed to the inside of the bed on the front panel.

  • Page 43: Winch Application

    OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. from winch drum. Leave at least five turns of cable on drum. Re-engage drum by turning clutch knob 90°, returning it to original position.
  • Page 44 OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. To prevent severe injury or death, read and understand the following before attempting to use the winch: The winch is not intended to be used in any hoisting operation.
  • Page 45 OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Never release the free spool clutch while the cable is under load. Never work around the winch drum or the winch cable while it is under tension.
  • Page 46 OPERATING PROCEDURES Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 4 - 14...

  • Page 47: Maintenance

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TITLE PAGE NO. VEHICLE CLEANING AND CARE ............................5-3 Vehicle Cleaning ......................................5-3 COMMON SENSE OPERATION ............................5-4 ENVIRONMENTAL CONCERNS............................
  • Page 48 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Cleaning the Air Filter Element.................................. 5-19 Pre Cleaner Service ....................................5-20 Cartridge Service....................................... 5-20 LUBRICATION ..................................5-20 SPARK PLUGS .................................5-21 PROLONGED STORAGE..............................5-21 CAPACITIES AND REPLACEMENT PARTS ........................5-22 PERIODIC SERVICE SCHEDULE .............................5-23...

  • Page 49: Vehicle Cleaning And Care

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. VEHICLE CLEANING AND CARE Vehicle Cleaning To reduce the possibility of severe injury or vehicle damage, read and understand all instructions supplied by manufacturer of pressure washer.

  • Page 50: Common Sense Operation

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. COMMON SENSE OPERATION To prevent severe injury or death, observe the following: Never transport loaded firearms on or in vehicle Check that firearms are unloaded with the safety engaged and are properly secured with muzzle pointing in a safe direction before operating vehicle.

  • Page 51: Repair

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. REPAIR Some servicing operations may require the front wheels, the rear wheels, or the entire vehicle to be raised. To reduce the possibility of severe injury or death from a vehicle falling from a jack: Be sure the vehicle is on a firm and level surface.

  • Page 52: Wheels And Tires

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. WHEELS AND TIRES A tire explosion can cause severe injury or death. Never exceed the inflation pressure rating on the tire sidewall.

  • Page 53: Wheel Installation

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Wheel Installation To reduce the possibility of component damage, do not tighten lug nuts to Valve Stem Cap more than 85 ft.

  • Page 54: Light Bulb Replacement

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. LIGHT BULB REPLACEMENT Inside of Cowl Headlight Casing To reduce the possibility of premature bulb failure, do Screw not touch new bulbs with bare fingers.

  • Page 55: Transporting Vehicle

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TRANSPORTING VEHICLE TOWING This vehicle is not designed to be towed It is recommended that the vehicle be moved by placing the entire vehicle on a trailer, flatbed truck or other suitable transport.

  • Page 56: Service And Maintenance

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SERVICE AND MAINTENANCE To reduce the possibility of severe injury or death from improper servicing techniques: DO NOT attempt any type of servicing operations before reading all notes, cautions and warn- ings in this manual.

  • Page 57: Routine Maintenance

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. ROUTINE MAINTENANCE To prolong vehicle life, some maintenance items must be serviced more frequently on vehicles used under severe driving conditions such as extreme temperatures, extreme dust/debris conditions, or frequent use with maximum load.

  • Page 58: Changing The Oil

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Remove the dipstick and wipe off the entire area with a lint free cloth. Insert the dipstick fully into the dipstick hole and remove. Examine the level of the oil on the dipstick. Maximum Oil Level Fill Cold Engine For Hot Engine...
  • Page 59 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. The selection of oil is dependent upon the service that the vehicle will perform. Most vehicles require 10W-30 oil, whereas vehicles used at capacity or near capacity load applications will utilize 10W-40 oil after a break-in period of 100 hours.
  • Page 60 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Inspect the filter. Make sure the ‘O’ ring is not left on the engine surface. Be careful of hot oil when drained. It may be hot enough to burn you severely Drain the oil by removing the drain plug found at the rear of the engine base.

  • Page 61: Starter Generator Belt Tension

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. As a final check, check the oil level again with the vehicle on level ground. Like all liquids, oil increases in volume when warm.

  • Page 62: Battery Cleaning

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Tighten the starter/generator pivot bolt. BATTERY CLEANING To reduce the possibility of damage to vehicle or floor, neutralise acid before rinsing battery. To reduce the possibility of damage to electrical components while cleaning, do not use a pressure washer.

  • Page 63: Brakes

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. BRAKES To reduce the possibility of severe injury or death, always evaluate pedal travel before operating a vehicle to verify some braking function is present. All driving brake tests must be done in a safe location with regard for the safety of all personnel.

  • Page 64: Air Intake And Cooling Fins

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. AIR INTAKE AND COOLING FINS To prevent possible burns, engine parts should be kept clean to reduce risk of overheating and ignition of accumulated debris.

  • Page 65: Air Cleaner Inspection And Replacement

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Fill / Check Plug Drain Plug AIR CLEANER INSPECTION AND REPLACEMENT The air cleaner unit on the vehicle is a dry unit. Do not use oil on the filter element or any part of the unit. To aide instal- lation and sealing, petroleum jelly may be applied to back side of cover tabs and each side of filter seal.

  • Page 66: Pre Cleaner Service

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Pre - Cleaner Service To prevent damage to air filter cartridge and reduced engine performance, do not apply oil to the pre-cleaner. Carefully remove pre-cleaner from cartridge and wash it in liquid detergent and water.

  • Page 67: Spark Plugs

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. SPARK PLUGS Tool List Qty. Spark plug socket, 13/16", 1/2" drive ........................1 Ratchet, 1/2" drive..............................1 Plug gauge, wire type .............................1 Anti-seize compound ............................AR Torque wrench, 1/2"...

  • Page 68: Capacities And Replacement Parts

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. • Turn the fuel shut-off valve to the closed (OFF) position. Fuel Shut-off • With proper ventilation, run engine until the remaining fuel Valve in carburetor and fuel lines is depleted and the engine Turn to “OFF”...

  • Page 69: Periodic Service Schedule

    MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. PERIODIC SERVICE SCHEDULE    Check Clean, Adjust, etc. Replace To perform service that is listed in this schedule but not described in this manual, contact a local Service Representative or see the Repair and Service Manual for this vehicle.
  • Page 70 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers.  Check for leaks at tank, cap, system lines, filters, pump, carburetor FUEL SYSTEM  Check system lines for cracks/deterioration ...
  • Page 71 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Hardware Periodically, the vehicle should be inspected for loose fasteners. Fasteners should be tightened in accordance with the Torque Specifications table.
  • Page 72 MAINTENANCE Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: 5 - 26...
  • Page 73 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. TABLE OF CONTENTS FOR APPENDIX A TITLE PAGE NO. DECLARATION OF CONFORMITY ................................. A - 3 A - 1...
  • Page 74 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: A - 2...
  • Page 75 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. DECLARATION OF CONFORMITY A - 3...
  • Page 76 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. DECLARATION OF CONFORMITY (CONTINUED) A - 4...
  • Page 77 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: A - 5...
  • Page 78 APPENDIX A Read all of this manual to become thoroughly familiar with this vehicle. Pay particular attention to all Notices, Cautions, Warnings, and Dangers. Notes: A - 6...
  • Page 80 E-Z-GO Division of Textron Inc., 1451 Marvin Griffin Road, Augusta, Georgia 30906 - 3852 USA Europe: Ransomes Jacobsen Limited West Road, Ransomes Europark, Ipswich, IP3 9TT English Company Registration No. 1070731 Phone: +44 (0)1473 270000, FAX: =44 (0)1473 276300 www.ransomesjacobsen.com Service Parts Manuals, as well as Repair and Service Manuals are available from a local Distributor, an authorized Branch, Genuine E-Z-GO Parts &...
