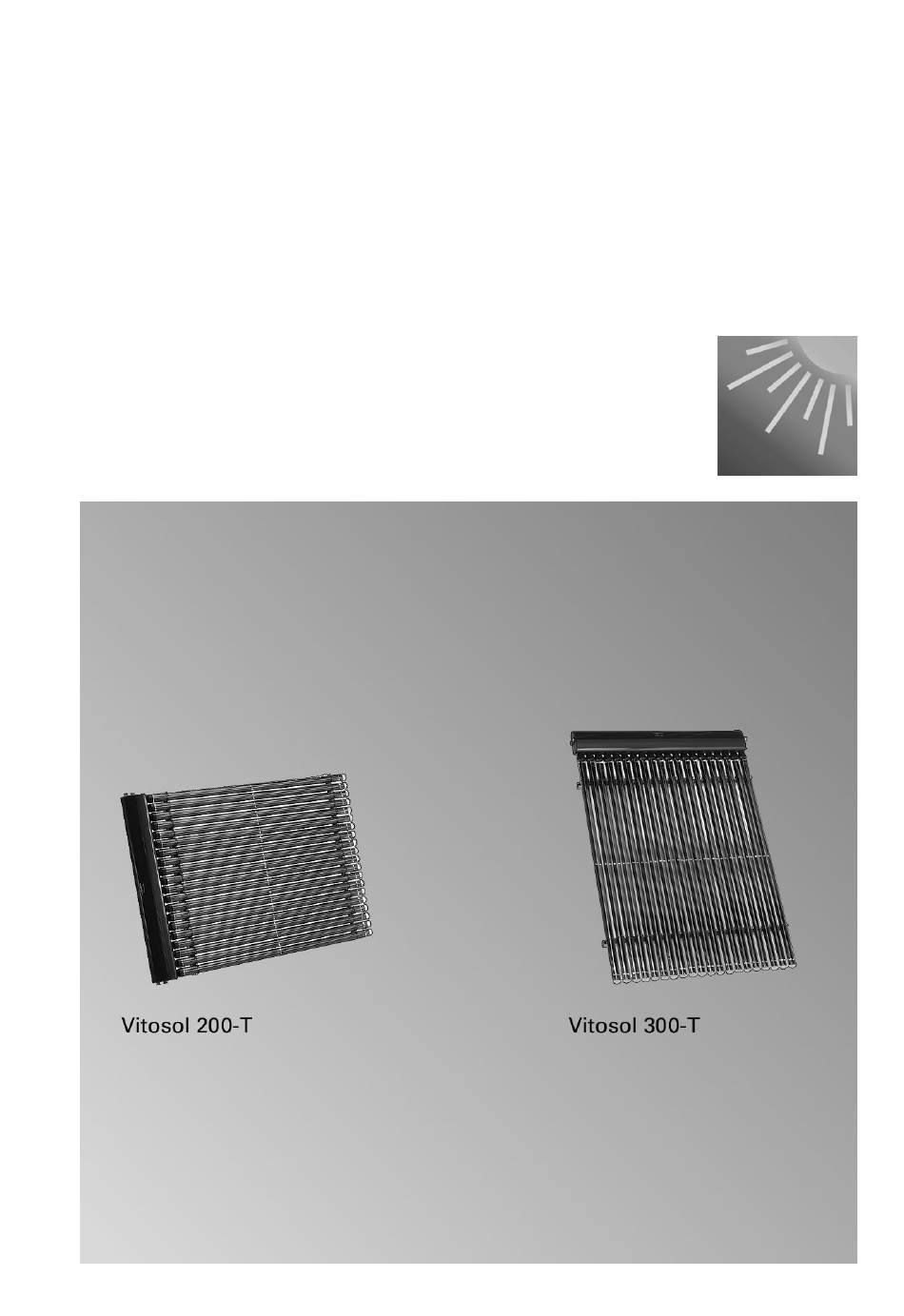

- Page 1 VIESMANN Service instructions for contractors Vitosol 200-T, 300-T For applicability, see the last page VITOSOL 200-T, 300-T Please keep safe. 5692 777 GB 12/2008...
- Page 2 Observe the following when working on Replace faulty components only this system with original Viessmann spare ■ all legal instructions regarding the pre- parts. vention of accidents, ■ all legal instructions regarding envi- ronmental protection, ■...
- Page 3 Installing non-authorised components and non-approved modifications or conversions can compromise safety and may invalidate our warranty. For replacements, use only orig- inal spare parts supplied or approved by Viessmann.
-
Page 4: Table Of Contents
Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance.......... Further details regarding the individual steps............Parts lists Parts list Vitosol 200-T, type SD2A..............11 Parts list Vitosol 300-T, type SP3A..............13 Specification Vitosol 200-T, type SD2A..................15 Vitosol 300-T, type SP3A..................15 Solar-Divicon (accessory).................. -
Page 5: Commissioning, Inspection, Maintenance
Commissioning, inspection, maintenance Steps - commissioning, inspection and maintenance For further information regarding the individual steps, see the page indicated Commissioning steps Inspection steps Maintenance steps Page • 1. Cleaning, testing for leaks and filling the solar thermal system................• •... -
Page 6: Further Details Regarding The Individual Steps
Commissioning, inspection, maintenance Further details regarding the individual steps Cleaning, testing for leaks and filling the solar thermal system ■ Never drain the system with a vacuum Notes pump. ■ Check the system for leaks: ■ A heat transfer medium containing gly- The collector in its cold state must be col can be damaged if it is exposed to subject to a positive pressure of at... -
Page 7: Checking The Expansion Vessel And The System Pressure
Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Checking the expansion vessel and the system pressure 1. Drain the system. For this, close the 3. Top-up heat transfer medium until the cap valve on the expansion vessel (if system pressure is 0.3 to 0.5 bar installed) and reduce the pressure. -
Page 8: Ventilating The Solar Thermal System
Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Ventilating the solar thermal system 1. Open the air vent valve. 3. Repeat the ventilation process after Vent the circulation pumps. For this, the system has been operational for adjust the circulation pumps to their several days. - Page 9 Commissioning, inspection, maintenance Further details regarding the individual steps (cont.) Low-flow operation, 25 l/(h·m High-flow operation, 60 l/(h·m Vitosol 300-T Vitosol 200-T, 300-T Collector area in Throughput in Collector area in Throughput in l/min l/min 10.0 12.5 15.0 16.7 High-flow operation, 40 l/(h·m...
-
Page 10: Checking The Switching Function Of The Solar Control Unit
Check the pH value using the pH strip in of the "Tyfocor LS" heat transfer medium the solar service case (accessory). with a Viessmann antifreeze tester or the manual refractometer in the solar service case (accessory). Checking the thermal insulation of the pipes... -
Page 11: Parts Lists
Parts lists Parts list Vitosol 200-T, type SD2A When ordering spare parts: 014 Profile clip Quote the part and serial no. (see type 015 Elbow fitting with support ferrule plate) and the item no. of the required 016 Thermal insulation cap, complete part (as per this parts list). - Page 12 Parts lists Parts list Vitosol 200-T, type SD2A (cont.)
-
Page 13: Parts List Vitosol 300-T, Type Sp3A
Parts lists Parts list Vitosol 300-T, type SP3A When ordering spare parts: 008 Connecting pipe (short) Quote the part and serial no. (see type 010 Connecting pipe (long) plate) and the item no. of the required 011 Elbow fitting with support ferrule part (as per this parts list). - Page 14 Parts lists Parts list Vitosol 300-T, type SP3A (cont.)
-
Page 15: Specification
Specification Vitosol 200-T, type SD2A Absorber area 2.01 3.02 Aperture area 2.14 3.23 Optical efficiency η 78.9 79.1 Heat loss factor k 1.36 1.10 W/(m ·K) Heat loss factor k 0.0075 0.0076 W/(m ·K Thermal capacity c 10.0 10.1 kJ/(m ·K) -
Page 16: Heat Transfer Medium (Accessory)
Specification Heat transfer medium (accessory) The heat transfer medium provided is a In some cases the manufacturer of the liquid based on 1.2-propylene glycol with heat transfer medium may carry out a frost protection down to −28°C. laboratory test of the medium, subject to arrangement. -
Page 17: Certificates
Certificates Declaration of conformity We, Viessmann Werke GmbH&Co KG, D-35107 Allendorf, declare as sole respon- sible body, that the products Vitosol 200-T and 300-T conform to the following standards: DIN 1055 EN 12975 to Solar-KEYMARK In accordance with the following directives, these products are designated _:... - Page 20 Applicability Applies to the following collectors: Vitosol 200-T, type SD2A, 2 m Part no. SK00 857 Vitosol 200-T, type SD2A, 3 m Part no. SK00 858 Vitosol 300-T, type SP3A, 2 m Part no. SK01 430 Vitosol 300-T, type SP3A, 3 m Part no.
