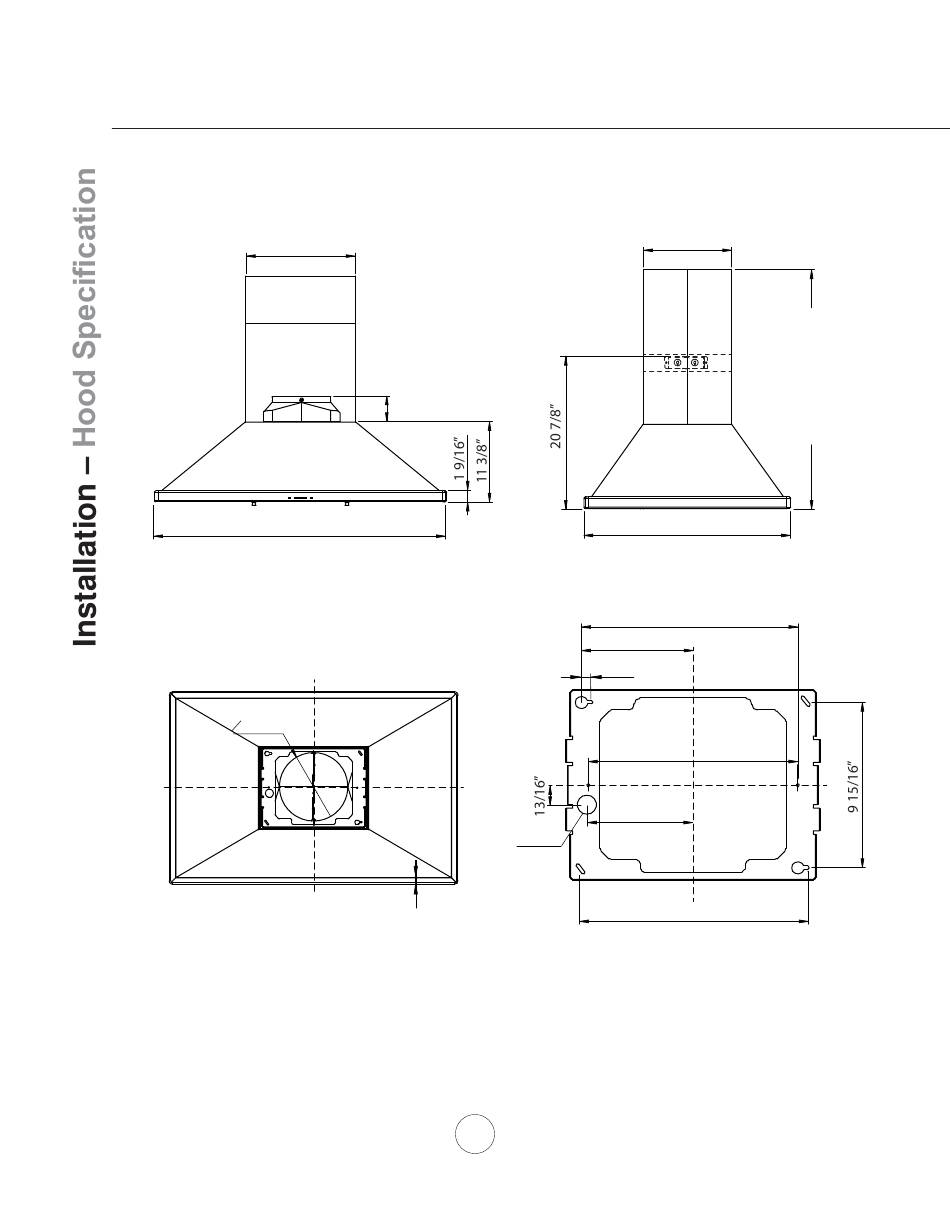

Zephyr Essentials Siena Pro Island Use, Care And Installation Manual page 10

www.zephyronline.com
11 15/16"
15 11/16"
STANDARD
min. - 32 1/2"
max. - 48 1/2"
Z1C-01SL
6"
min. - 49"
max. - 81"
28"
41 7/8" , 47 7/8"
SIDE
FRONT
13 1/16"
6 3/4"
5/8"
C/L
9 15/16"
O
C/L
12 5/8"
C/L
C/L
6 5/8"
AC K/O
FRONT
1"
13 3/4"
TOP of HOOD
TOP SUPPORT FRAME
(top view)
8
