- Page 1 Newcastle Upon Tyne Powered by Tel. 0191 295 0111 sales@newarc.co.uk ® Newarc RT2500 Operational Manual NA9910304...
- Page 2 Type of Equipment Welding power source for TIG, MMA Brand name or trade mark Newarc Type designation etc. RT2500 Manufacturer or his authorised representative established within the EEA Name, address, telephone no Newarc Newcastle upon Tyne Phone: +44 (0)191 295 0111...
- Page 3 Never use broken or faulty welding helmets. Always ensure there are adequate protective screens or barriers to protect others from flash, glare and sparks from the welding area. Ensure that there are adequate warnings that welding or cutting is taking place. RT2500...
- Page 4 In the case of electromagnetic problems, it is the responsibility of the user to resolve the situation. It may be necessary to shield the equipment and fit suitable filters on the mains supply. RT2500...
- Page 5 BE AWARE OF SPARKS AND SPATTER DO NOT TOUCH THERMAL COMPONENTS! Wear protective clothing, such as leather Thermal components may cause severe burns gloves, Flame retardant overalls, boots and when in contact with unprotected skin. eyewear. RT2500...
-
Page 6: Table Of Contents
Contents Preface General Introduction Technical Specifications Overview of Machine Installation Operation Fault Finding Welding Problems Maintenance Warranty Parts RT2500... -
Page 7: Preface
This operating manual contains important information on the use, maintenance and safety of your Newarc product. Please read the manual carefully before using the equipment for the first time. For your own safety and that of your working environment, pay particular attention to the safety instructions in the manual. -
Page 8: Introduction
You may select either 2T or 4T torch switch operation. The unit also has an extremely good duty cycle even in high ambient temperatures and is fabricated in NewArc’s usual robust external casing. RT2500 is designed to meet all types of environmental conditions and is ideal for production, site and maintenance applications Features •... -
Page 9: Technical Specifications
1.3 Technical Specifications Newarc TS2500 Input Voltage Range 380-480V 3 phase 50/60Hz 9KVA Power Consumption Input Current at Max Output 13 amps Mains Input Fuse 16 amps slow blow or type C MCB Mains Cable 4 x 2.5mm² flexible cable Power Factor 0.95... -

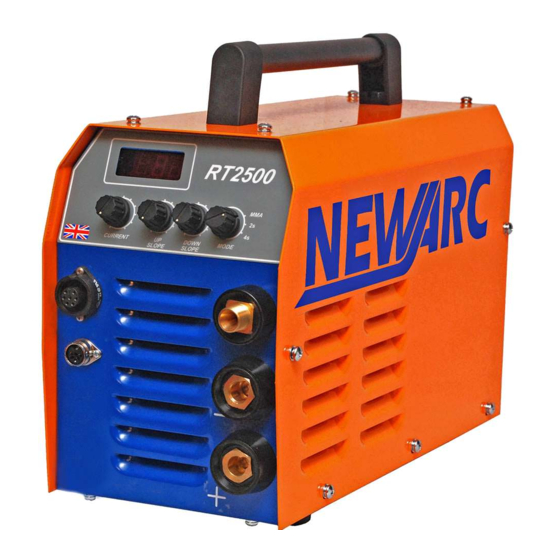

Page 10: Overview Of Machine
Mode switch - Selects the welding mode. understood th Current control - Adjusts the machines output current. • Connect the the TIG300 m Power indicator - indicates mains power, lights up when RT2500 • Turn the mod machine is switched on. welding pro • Select weldi... - Page 11 4. Current control Adjusts the machines output current. 5. Power indicator Indicates mains power, lights up when machine is switched on. 6. Negative weld terminal Main welding power output connector, negative polarity. 14. Positive weld out connector 7. Positive weld terminal. RT2500...
-
Page 12: Installation
Long extension cable lengths may reduce the performance of the machine, the welding arc may become unstable especially at higher currents. Ensure the mains cable is not coiled up when you are welding as this will reduce the input voltage to the machine and may cause overheating and degradation of the cable. RT2500... -
Page 13: Operation
• Adjust the current control on the remote to the recommended setting for the type and size of welding electrode being used. (The standard Newarc RC300 remote does not have current settings but is marked 1 to 10, for the R2500 allow 25A per division). -
Page 14: Fault Finding
In Hot climates (above 25°C) It indicates that you are exceeding the duty cycle of the RT2500, leave switched on for a few minutes and the RT2000 will return to normal operation. In this circumstance, do not switch the RT2000 off as this will stop the operation of the cooling fan and greatly extend the cool down period. -
Page 15: Welding Problems
Choose an initial current setting towards the middle of the quoted range and if necessary practice on a piece of scrap the same thickness as the job to be welded. If the problem still persists have the RT2500 checked by a trained Newarc service engineer. RT2500... -
Page 16: Maintenance
All Electric shocks are potentially fatal, switch the machine off and disconnect from the power supply before undertaking out any maintenance work. It is very important that the RT2500 is regularly maintained. The amount of use and the working environment must be taken into account when scheduling the maintenance periods. Careful use and regular preventative maintenance will prolong the life of the machine and ensure trouble free operation. -
Page 17: Warranty
Newarc Ltd warrants that its goods and services are guaranteed to meet the specific performance under the stated conditions of use. Newarc cannot be held responsible for general wear and tear or for failure occurring due to misuse or abuse arising out of circumstances outside the stated condi-tions of use. -
Page 18: Parts
7. Parts SECTION 6 — PARTS BREAKDOWN 6.1 Parts Locations RT2500 R2500... - Page 19 Current Shunt Torch Socket Assembly NAM90098/NEWTIG NAM00033/A Control Knob (4 per machine) NAM00041 Power/Gas Connector 32/33 EW3550PSW Panel Mounted DIX socket (2 per machine) Gas valve assembly NAM00041 NAM90183 Up to serial number NCL0009811 NAM90176 From serial number NCL0009812 RT2500...
- Page 20 Unit 1, Whitehouse Industrial Estate, Whitehouse Road Newcastle upon Tyne NE15 6LN Tel: +44 (0)191 295 0111| Email: sales@newarc.co.uk | www.newarc.co.uk Powered by RT2500 www.newarc.co.uk ®...
