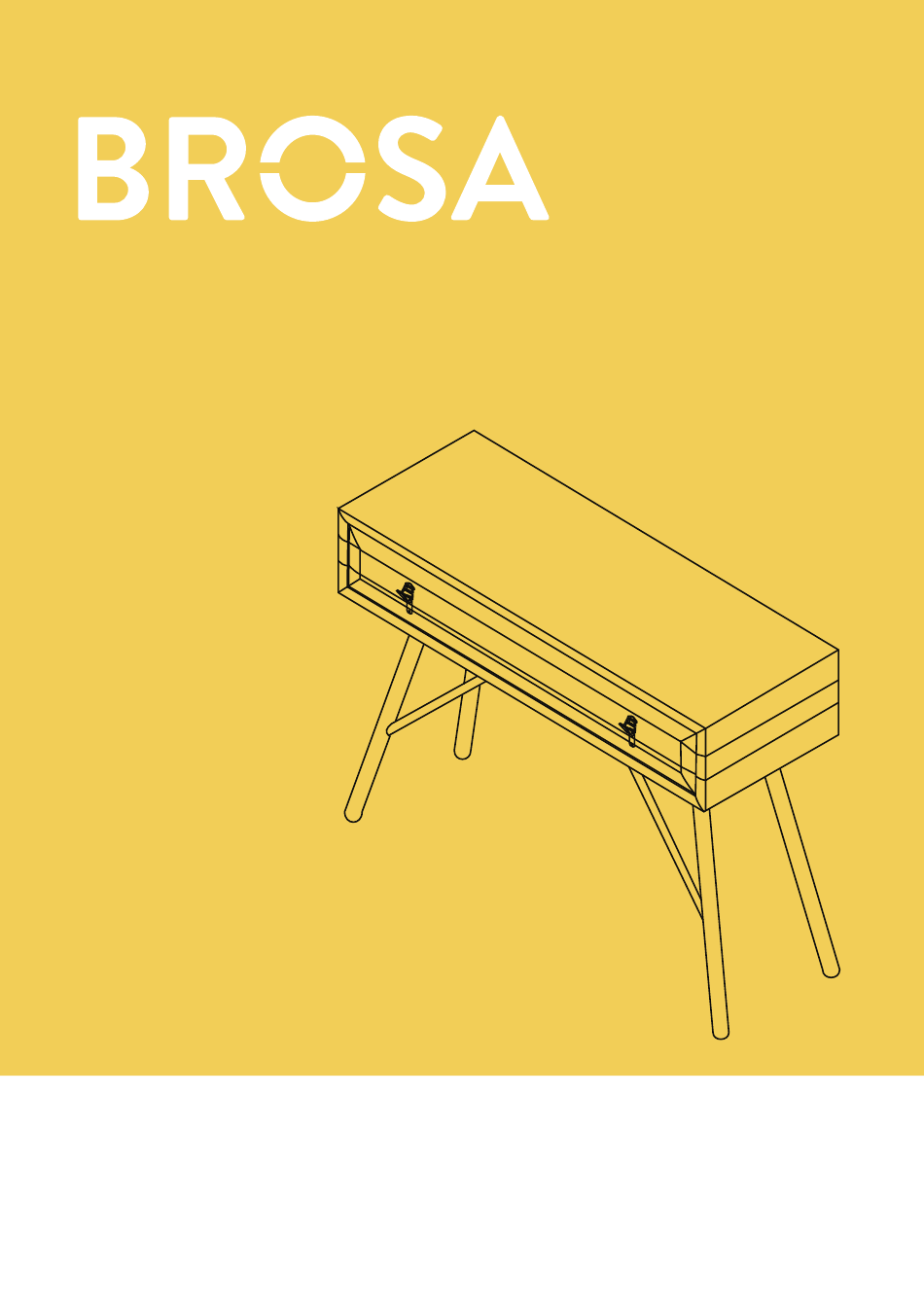

- Page 1 ASSEMBLY GUIDE Field Console Table...
- Page 2 Components Before you get started, check you have all of the pieces below. If anything’s missing, please visit www.brosa.com.au/pages/product-return-and-parts-request and we’ll sort it out right away. Body x 1 Left Leg x 1 Right Leg x 1 Hardware A x 10...
- Page 3 To open the storage turn the clip hinges up and Step 1 release the clamp. Lift the cover up. It is possible to take the inner box out. To close the storage put the cover down, attach the clamps to the cover and turn down the clip hinges.
- Page 4 Align the legs (2, 3) to the underside of the table Step 2 body so that the holes are overlaping. Secure them with bolts using an allen key (B). A x 10 B x 1...
- Page 5 To put back the inner box turn the clip hinges up Step 3 and release the clamp. Open the storage. Lift the cover up and put back the inner box. To close the storage put the cover down, attach the clamps to the cover and turn down the clip hinges.
- Page 6 Fix a mounting plate (aa) to the back of the storage Step 4 using at head screws (cc). By using appropriate fastener based upon wall com- position, x another mounting plate (aa) to the wall. Connect two plates with the nylon srap (bb). Tighten the strap so that the table is xed in the place.
- Page 7 Enjoy your new table! Step 5...
