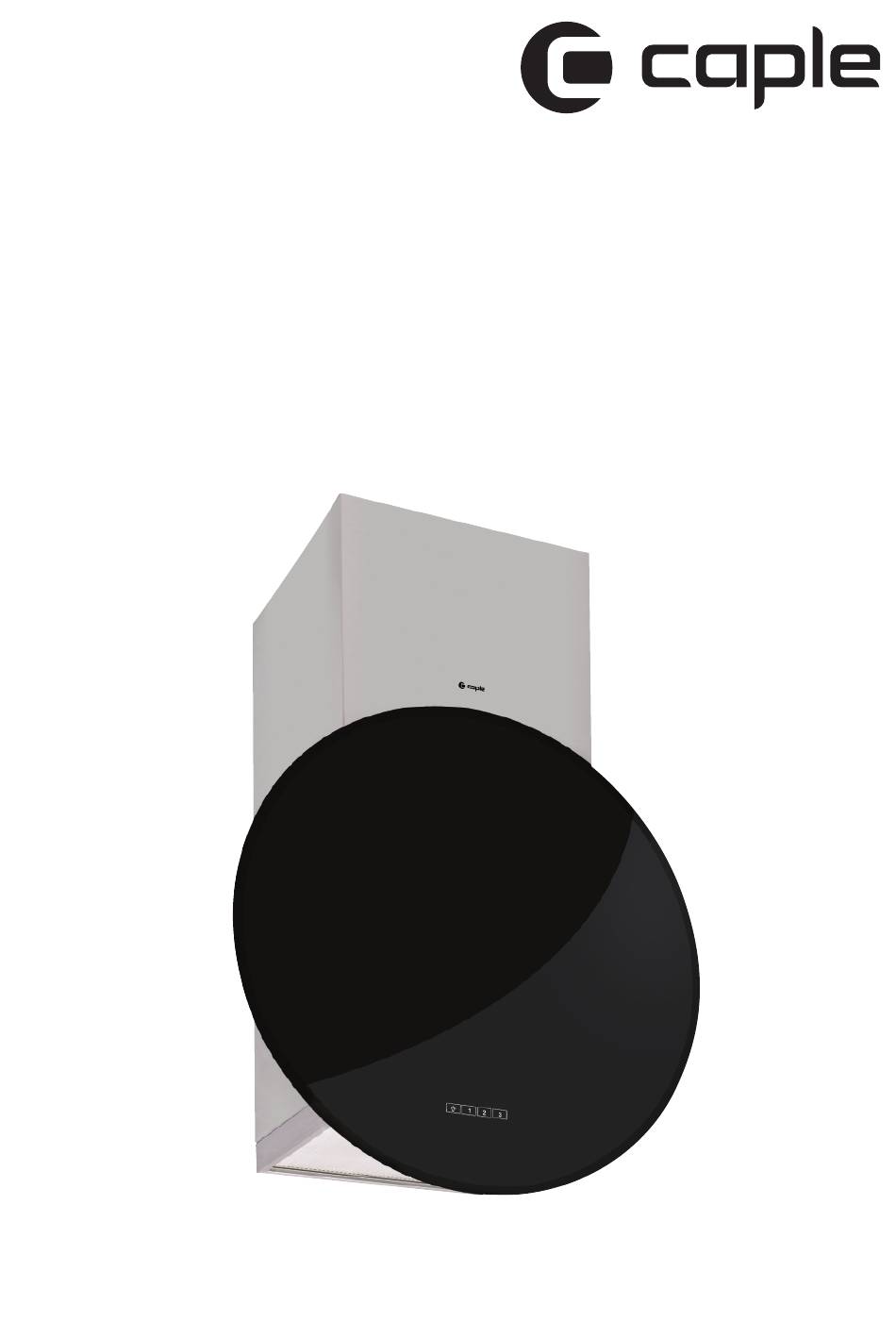

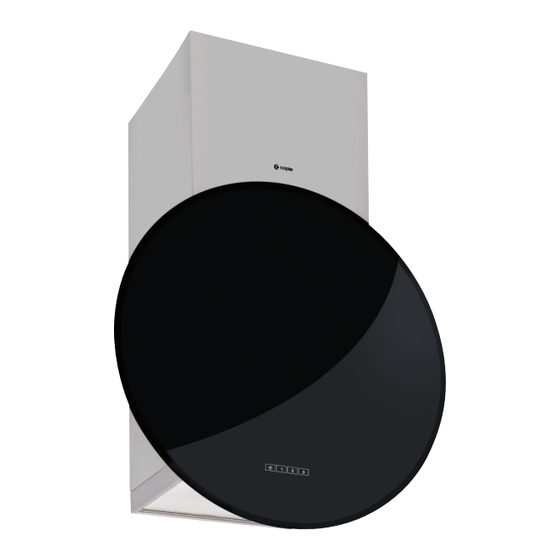

- Page 1 Instruction manual for wall chimney hoods Model codes: LC600WH / LC600BK Contact Caple on 0844 800 3830 or for spare parts www.4caple.co.uk...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION IMPORTANT SAFETY INFORMATION **Read the complete manual carefully before installation** **Read the complete manual carefully before installation** Intended for Domestic Kitchen Use Only Intended for Domestic Kitchen Use Only Warnings: Warnings: TO REDUCE TO REDUCE F IRE F IRE LECTRICAL LECTRICAL... - Page 3 WARNING TO REDUCE THE RICK OF INJURY TO PERSONS IN THE EVENT OF A GREASE FIRE OBSERVE THE FOLLOWING SMOTHER FLAMES with a close fitting lid cookie sheet or metal tray and then turn off the burner If the flames do not go out immediately evacuate and call the fire department .
-
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS Before You Start... Read this manual carefully and completely. The cooker hoods conform to related appliances standards. Please check your local building codes for any additional requirements. The appliance has been manufactured as class I, there fore earthed connection is necessary. The cooker hood must be installed so that the plug is easily accessible. -
Page 5: Installing The Ductwork
Installing the Ductwork to roof cap 1. Plan where the ductwork will run between the hood and the outside. The hoods exhaust vertically but can be ducted to the rear behind the chimney duct through an outside wall or vertically up through the ceiling to the roof. - Page 6 Installing Guideline Duct-out Wall Mounted Note: The above installation guideline for references only, please contact your local dealer for a installation service. Leveling Device When mounting the hood on the wall,the level can be adjusted by turning the two screws on the motor housing.
-
Page 7: Installation Alternatives
INSTALLATION ALTERNATIVES The cooker hood can be installed in the following ways: Circulating indoor air (A) Outdoor venting (B) REMEMBER! The distance between the top of the hob and the lowest part of the cooker hood must be at least 65 cm. If a two-part connection tube is used, the lower section must sit outside the upper sec tion. - Page 8 USE AND CARE INSTRUCTIONS Operations 1. For optimum performance in removing cooking odors, it is recommended that you turn on your cooker hood prior to cooking and you leave it operating for 15 min utes after cooking. 2. Clean the surfaces of the cooker hood regularly using a non-abrasive detergent. 3.
-
Page 9: Care And Cleaning
CARE AND CLEANING Replacing the charcoal filter (standard General hood) Regular maintenance is required to ensure that the Replace the charcoal filter (standard hood) as cooker hood functions properly. This is espe cially true follows: of the grease and charcoal filters. Clean the fan and other surfaces of the cooker hood regularly with a cloth dipped in denatured alcohol or a Remove the grease filter. - Page 10 Emptying and cleaning the fat collector (For these fitted with a fat collector) The fan is fitted with a fat collector that collects fat from the fan blades and fan housing. 1. Remove the grease filter and the charcoal filter (if fitted). 2.
- Page 11 For more information on disposal, recycling and reuse of this product, contact your local authority, your household waste collection service or the store where you purchased the product For reliable service and original parts: Tel 0844 800 3830 Website www caple co uk...
- Page 12 Hood Size: φ600...
-
Page 13: Troubleshooting Guide
Trouble Shooting Guide Problem Possible Reason Solution Check the plug is connect ed. No electrical supply. Check the main switch is turned Hood doesn't turn on. Contact your service technician Power cord is damaged Clean the filters and replace Aluminum grease filters clogged when dry.
