Summary of Contents for Caple BXC610

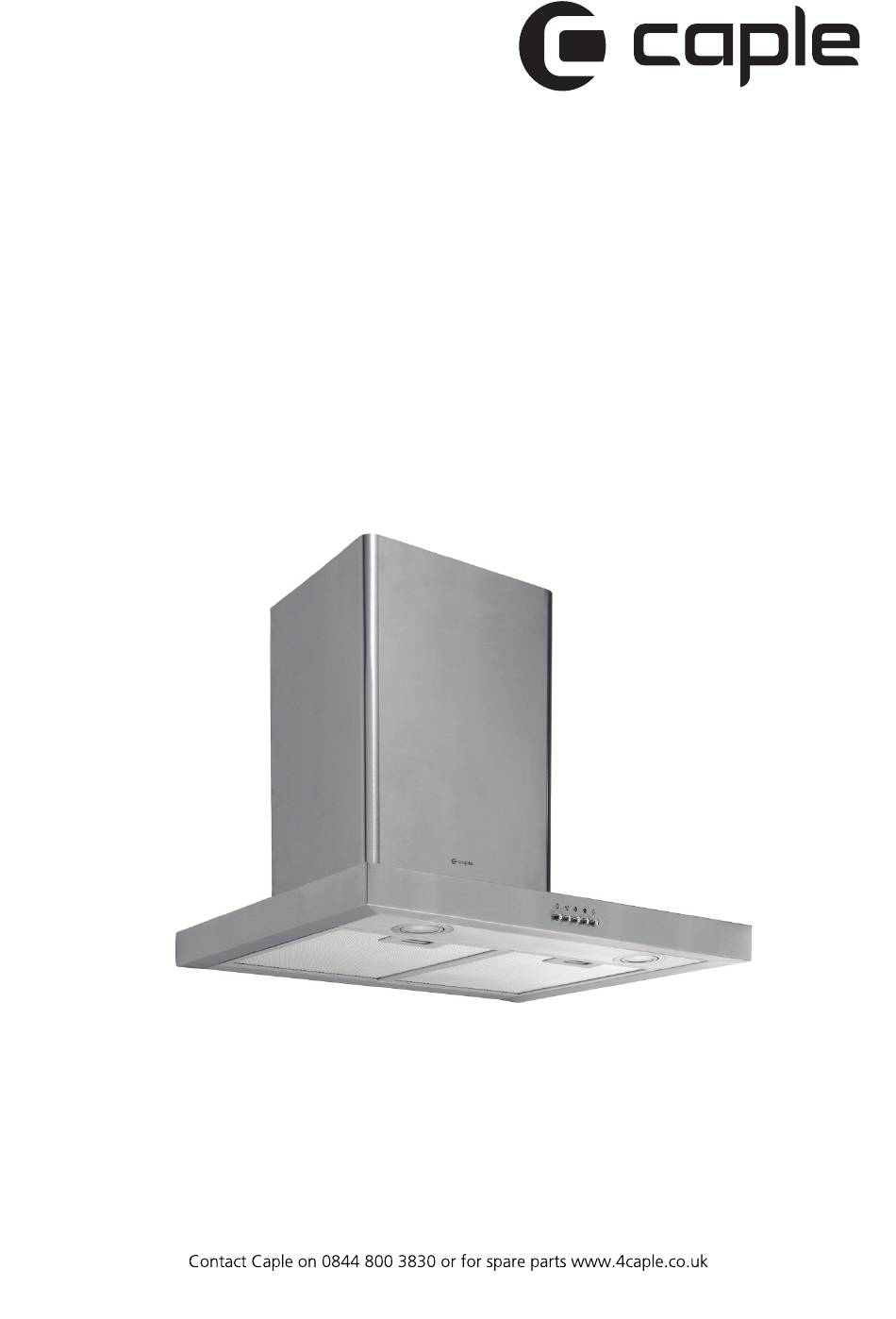

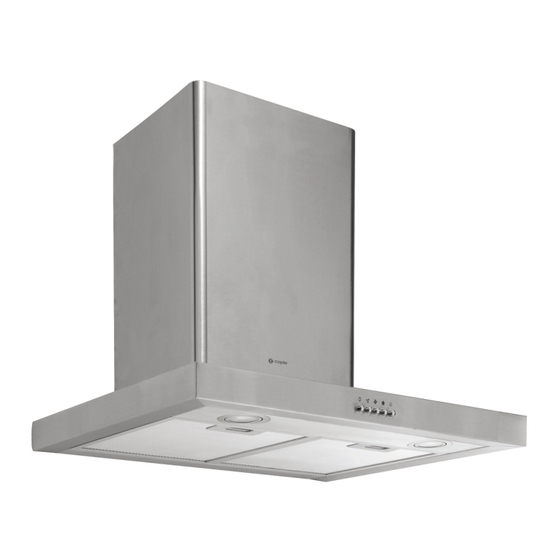

- Page 1 Instruction manual for chimney hood Model code: BXC610 BXC910...
-
Page 2: Table Of Contents
Contents Introduction Safety precautions Installation Installing the charcoal filer Operation Care and maintenance Troubleshooting Guarantee Environmental protection... -
Page 3: Introduction
To ensure that you get the best results from your new extractor, we strongly suggest that you read this instruction manual thoroughly before use..If treated with care, your Caple extractor should give you years of trouble-free use To register ownership, please ensure you complete and return the guarantee card supplied with the appliance. - Page 4 A damage supply cord must be replaced by qualified service personnel only. Please contact the Caple service department. If the room where the hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
-
Page 5: Installation
Installation Prepare for the installation: a. If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct with an interior per the diameter of 150mm) b. Before installation, turn the unit off and unplug it from the outlet. c. - Page 6 Installation – ducted Attent Attention! Obser Attent Attent ion! Obser ion! Observe the warning ion! Obser ve the warning ve the warning concerning the operation of the appliance ve the warning concerning the operation of the appliance concerning the operation of the appliance concerning the operation of the appliance when air is discharged from the room.
- Page 7 Fix the one-way-valve to the air outlet of the cooker hood. Then, attach the exhaust pipe onto the one-way-valve as shown below. Exhaust pipe Cooker hood Chimney installation Place the upper chimney into lower chimney .Then pull the upper chimney upwards.
- Page 8 • Drill 2 8 mm holes to accommodate the plate II. Screw and tighten × the plate II onto the wall with 2 screws provided. Assemble the chimney onto the unit and fix it with 2 screws. Screw (4mm x 8mm) Wall plug Screw (4mmx30mm) Plate II...
-
Page 9: Installing The Charcoal Filer
Installation – recirculation mode If you do not have an outlet to the outside, the exhaust pipe is not required (as shown in the section “Installation - ducted”). Installing the charcoal filter An activated charcoal filter can be used to trap odours. In order to install the charcoal filter, the grease filter should be detached first. -
Page 10: Operation
Operation Low speed button Low s peed button Low s Low s peed button peed button Is suitable for simmering and cooking which does not produce much odour. Medium s s s s peed button Medium peed button Medium Medium peed button peed button Airflow speed is ideal for extracting with standard cooking. -
Page 11: Care And Maintenance
Care and maintenance IMPORTANT: Before cleaning or maintenance please switch off the electricity supply and remove the plug from the wall. Regular Regular c c c c leaning leaning Regular Regular leaning leaning Use a soft cloth moistened with lukewarm mildly soapy water or household cleaning detergent. -
Page 12: Troubleshooting
‘Care and maintenance’ section. The filter requires cleaning performance is Replace the charcoal filter (if in not good recirculation mode) If the above table has not solved the problem please contact Caple Service by phone on 0844 800 3830 or by email service@caple.co.uk... -
Page 13: Guarantee
Guarantee Caple undertake that if within twelve months of the date of the purchase this appliance or any part thereof that is proved to be defective by reason only of faulty workmanship or materials, we will at our option repair or replace the same free of... -
Page 14: Environmental Protection
CE Declarations of Conformity This appliance has been manufactured to the strictest standards and complies with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic Compatibility Directive (EMC). Caple Fourth Way Avonmouth BS11 8DW www.caple.co.uk...
