SPORTS ART T655M Owner's Manual

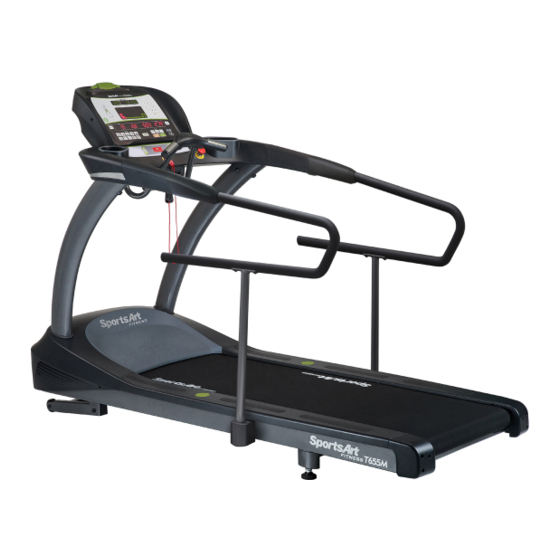

Led treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sports Art Industrial Co., Ltd.
ISO 9001/14001 Certified
No. 11, Gong Huan Rd. Tainan City, Taiwan R.O.C.
USA
2015.01 (W)
www.gosportsart.com
T655M LED Treadmill
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T655M and is the answer not in the manual?

Questions and answers

Related Manuals for SPORTS ART T655M

Summary of Contents for SPORTS ART T655M

  • Page 1 T655M LED Treadmill Owner’s Manual Sports Art Industrial Co., Ltd. ISO 9001/14001 Certified 2015.01 (W) No. 11, Gong Huan Rd. Tainan City, Taiwan R.O.C. www.gosportsart.com...

  • Page 2: Table Of Contents

    STEP 6 Align the Walk Belt ..............30 STEP 7 Adjust Walk Belt Tightness ............32 STEP 8 Install the Power Cord ............. 33 5. UNDERSTAND THE T655M DISPLAY ..........DISPLAY Overview ................DISPLAY Specifications ............... DISPLAY Windows ................35 DISPLAY Keys ..................

  • Page 3: Introduction

    1. INTRODUCTION Congratulations on the purchase of a high quality SportsArt product, the T655M treadmill. Constructed of high quality materials and designed for years of reliable performance, this product was made for full commercial use. Before this product is assembled or operated, we recommend that you familiarize yourself with this manual.

  • Page 4: Safety Precautions

    2. SAfETy PRECAUTIONS This product was designed and built for optimum safety. However certain precau- tions apply during the use of this product. Please note the following safety precautions: • Please read the entire manual before assembly and operation. Make sure the product is installed and operated as instructed in this manual.
  • Page 5 2. SAfETy PRECAUTIONS (CONTINUED) CAUTION: If you feel any pain or any abnormal sensations, STOP YOUR WORKOUT and consult your physician immediately. Work within your recommended exercise level. DO NOT work to exhaustion. Before beginning any exercise program, you should consult with your doctor. It is recommended that you undergo a complete physical examination.
  • Page 6 2. CONSIGNES DE SÉCURITÉ IMPORTANTES Votre tapis de course SportsArt a été conçu et fabriqué afin d’assurer une sécurité optimale. Cependant certaines précautions s’appliquent chaque fois que vous uti- lisez votre tapis de course. • Lisez entièrement le manuel avant l’assemblage et l’utilisation. Veuillez aussi noter les consignes de sécurité...
  • Page 7 2. CONSIGNES DE SÉCURITÉ (SUITE) • Pour éviter de vous blesser, restez sur les bandes de repos (barres latérales) avant de démarrer le tapis de course. • Ce tapis de course n’est pas destiné à être utilisé par des personnes (y com- pris des enfants) dont les capacités physiques, sensorielles ou mentales sont réduites ou qui ne disposent pas de l’expérience ou du savoir nécessaires, sauf si celles-ci ont au préalable été...

  • Page 8: List Of Parts

    3. LIST Of PARTS Assembly Parts Name Qty. No. Name Qty. A1 Display A7 Left pedestal Front handlebar A2 Handlebar assembly assembly A3 Right pedestal A9 Owner’s manual A4 Feeder cord A10 Hardware kit A5 Waterproof ring A11 Power cord Upper and lower left and A6 Main frame right connector covers...
  • Page 9 3. LIST Of PARTS (CONTINUED) Components in the Hardware Kit Name Qty. Specification Notes Screw cover (flat) Screw cover (rounded) 15A-100V-110V Fuse 10A-200V-240V T-shaped Allen wrench (M4) T-shaped Allen wrench (M6) L-shaped Allen wrench (M5) L-shaped Allen wrench (M6) Double open-end wrench (22*24) Screwdriver handle green...

  • Page 10: Assemble The Product

    4. ASSEMBLE THE PRODUCT Follow instructions below to assemble this product. Note that in this manual the words “left” and “right” are used to refer to the product and its parts. As such, these designations correspond to the “left” and “right” sides of a person in position to exercise on this product.

  • Page 11: Step 1 Install The Pedestals And Handlebar Assembly

    STEP 1 Install the Pedestals and Handlebar Assembly Follow instructions below to install the pedestals and handlebar assembly. The illustration below provides an overview of this step.
  • Page 12 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) (a) Loosen and remove the screws (40) to remove the pedestal mount covers (A6a) (A6b) as shown. (b) Remove the screws (41) from the pedestal mount as shown.
  • Page 13 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) Follow steps (a~e) in order to thread the data cable into the right pedestal. (a) First, remove the zip tie on the cable in the right pedestal mount, and then stretch the cable out as shown. (Note: make sure the cable is fully pull out of the oval opening from the pedestal mount.) (b) Place the right pedestal (A3) on the floor, with the lower hole facing the...
  • Page 14 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) Hold the data cable at the top of the right pedestal (A3), and insert the bot- tom of the right pedestal (A3) onto the pedestal mount. Repeat the process for the left pedestal (A7) assembly. (Note: avoid pinching or crimping the data cable.
  • Page 15 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) Follow steps (a~f) to install handlebars. (a) First, remove the screws (42) (43) from the handlebar assembly (A2). (b) Insert the left side of the handlebar (A2) into the left pedestal (A7). (c) Connect the cables in area A from the right pedestal (A3) and from the handlebar (A2).
  • Page 16 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) (d) Tuck cables into the pedestal safely, and then insert the right side of the handlebar assembly (A2) into the right pedestal (A3), without pinching or crimping cables. (e) Thread screws (42) (43) in place by hand. First, secure the screws (42) in area B, and then secure the screws (43) in area C.
  • Page 17 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) Install the front handlebar assembly (a) Loosen and remove the screws (47) from the front handlebar assembly (A8). (b) Loosen the screws (46) from the front handlebar assembly (A8). Do not remove the screws.
  • Page 18 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) (c) Connect the cables from the front handlebar assembly (A8) and from the handlebar assembly (A2). (d) Insert the front handlebar assembly (A8) into the handlebar assembly (A2) and secure with the screws (47) (46). (Note: Avoid pinching or crimping the cables.)
  • Page 19 STEP 1 Install the Pedestals and Handlebar Assy (Cont.) After the handlebars are in place, secure pedestal screws on left and right sides. Put the pedestal covers (A6a) (A6b) in place and secure them with the screws (40). Finally, put the water guards (A5) down against the motor cover on both sides.

  • Page 20: Step 2 Install The Display

    STEP 2 Install the Display...
  • Page 21 STEP 2 Install the Display (Continued) Follow steps (a~f) below to install the display assembly. (a) Remove the screws (44) from the handlebar (A2). (b) Insert the display (A1) onto the handlebar assembly (A2). (Note: aim properly to avoid damaging the display board.) (c) Push the display (A1) slightly upward and then insert the display mounting bottom into the opening on the handlebar assembly.
  • Page 22 STEP 2 Install the Display (Continued) (d) Connect cables in areas A and B. (e) After connecting cables, tuck them away for safety, and then slightly lift the display (A1) and press it into place. (Note: in area C, the display cover must be outside of the handlebar cover.) (f) Hold the display (A1) forward slightly as shown and then press downward when securing screws (44).

  • Page 23: Step 3 Install Long Handrails

    STEP 3 Install Long Handrails...
  • Page 24 STEP 3 Install Long Handrails (Continued) First, remove the sticker, screws, and end cap from the left and right handle- bars. Also, remove the two middle anti-slip strips from the landing strips.
  • Page 25 STEP 3 Install Long Handrails (Continued) Follow the illustrations below. First, Remove the screws and the supporting plate from the covers, (do not remove the screws (a) from the supporting plate). Then remove the screw from the inside middle of the upper cover. Finally, remove screws from the bottom part of the long handrail.
  • Page 26 STEP 3 Install Long Handrails (Continued) First, set the long handrail supports into the frame. Then loosely secure them with screws. Do not tighten the screws yet.
  • Page 27 STEP 3 Install Long Handrails (Continued) Set left and right long handrails in place on the handrail supports as shown. Use screws (a, b) to secure the long handrails to the handle ends.
  • Page 28 STEP 3 Install Long Handrails (Continued) As shown: First, attach right “long handrail covers” to the right handrail as- sembly. Second, push the cover into place so the screws A of the support- ing plate is aligned with the screw holes. Third, secure the top cover with screws.

  • Page 29: Step 4 How To Move The Treadmill

    STEP 4 How to Move the Treadmill First, place hands under the frame in area A, lift the treadmill and then roll it into position as desired.

  • Page 30: Step 5 Level The Treadmill

    STEP 5 Level the Treadmill 1. Press on points A and B to inspect whether the unit is stable and level on the ground. 2. If not, please level the treadmill by following instructions (a, b, c): (a) First, loosen the leveler nuts. (b) Adjust the leveler feet downward until the treadmill is level and does not rock.

  • Page 31: Step 6 Align The Walk Belt

    STEP 6 Align the Walk Belt *Make adjustments as needed, but avoid turning rear roller screws more than one quarter rotation at a time. *See next page for the illustration provides an overview of this step. (a) First, make sure the treadmill is on a leveled surface and the incline is at (b) Start the speed at a lower rate of 3kph/2.5mph to check if the walk belt is aligned.
  • Page 32 STEP 6 Align the Walk Belt (Continued)

  • Page 33: Step 7 Adjust Walk Belt Tightness

    STEP 7 Adjust Walk Belt Tightness As you exercise, does the walk belt suddenly pause and then regain traction? Or, if you bear down against the walk belt, does the belt not pause whatsoev- er? If either of these two conditions occurs, the walk belt may be too loose or too tight.

  • Page 34: Step 8 Install The Power Cord

    STEP 8 Install the Power Cord (a) First remove screws (45) from the power cord socket on the product. (b) Insert the power cord into place on the product. (c) Secure power cord connector screws (45). Then insert the other end of the power cord (A11) into the appropriate power supply socket in the wall.

  • Page 35: Understand The T655M Display

    5. UNDERSTAND THE T655M DISPLAy DISPLAy Overview The T655M display was designed to help people obtain their fitness goals simply and conveniently. Please familiarize yourself with the features of this display and thereby get optimum benefit and enjoyment from this product.

  • Page 36: Display Specifications

    DISPLAy Specifications ● Speed (Forward): 0.1 to 12.0 mph or 0.2 to 20.0 kph ● Speed (Reverse): -0.1 to -3.0 mph or -0.2 to -5.0 kph ● Incline: -3% to 15%, in increments of 0.5% ● Time: 0:00 - 300:00 ●...
  • Page 37 DISPLAy Keys (Continued) HILL – Each time this key is pressed, the LED above the key will light up and one of three hill workouts will appear: HILL 1, HILL 2, HILL 3. RANDOM – Press this key to select one of an almost endless number of randomly generated workout programs.

  • Page 38: Display Safety Key And Emergency Stop

    “PRESS SPEED UP” will appear as a prompt to continue exercising. 6. OPERATE THE T655M LED TREADMILL There are two ways to start operating this product: (1) Press the QUICK START key, or (2) press the PROGRAM/GOAL SELECTION key to enter a preset program.

  • Page 39: Operation Start A Workout Program

    OPERATION Start a Workout Program To obtain more accurate calorie counts and target heart rates, operate the product via a workout program as follows: 1. Press a workout program key to select a workout or press a goal key (TIME, DISTANCE, CALORIES) to select a goal program.

  • Page 40: Operation Display

    OPERATION Display 1. If the feedback window is at bottom row, press SPEED▲/▼key to adjust the speed, the display will temporary switch to top row to show the adjustment. In 4 seconds, it will return to bottom row. Same thing will happen if it is displaying top row, and INCLINE ▲/▼key is pressed, it will temporary switch to bottom row.

  • Page 41: Operation Energy Smart Function

    OPERATION Energy Smart function This treadmill is built in with energy smart feature which is an energy con- servation function for when the treadmill is not in use. This feature can be activated in the basic setting and a timer can be set. When this feature is activated, the power will be shut off to run any control boards and electronic components in this treadmill.
  • Page 42 OPERATION Workout Programs (Continued) Once an Interval program is selected, it will enter user profile setting page. Age, weight, program time as well as Rest and Work segment setting. User can set both incline and speed for Rest and Work segments to customize the Interval program.
  • Page 43 OPERATION Workout Programs (Continued) fIT TEST FIT TEST programs include the following physical fitness tests Bruce, Gerkin, When you select the FIT TEST programs, “BRUCE-1 GERKIN-2”appears, press numerical keys 1 or 2 to directly select a fitness test. Bruce and Gerkin fitness tests proceed until any one of the following actions occurs: •...
  • Page 44 OPERATION Workout Programs (Continued) • SPEED control mode a. The message window will display “MAX SPEED xx.x MPH” (or MAX SPEED xx.x KPH). b. Press SPEED ▲/▼ keys, INCLINE ▲/▼ keys or numeric keys to adjust it. c. Press the ENTER key to confirm your choice. d.

  • Page 45: Operation User Preference And Component Versions

    OPERATION User Preference & Component Version User preference settings allow you to change default settings and review some historical data of this product. To access user preference settings, press the CHANGE DISPLAY key for 2 seconds during Banner page. ● Unit setting: the default unit is English. On the message window, “UNIT –...

  • Page 46: Operation Error Messages

    OPERATION Error Messages Error messages can appear on this treadmill as a troubleshooting aid. Error messages appear in the following format: “ERROR _X_Y”. X represents the category of the error. Y represents the specific issue. In the position of the X placeholder, the following numbers can appear to represent the category of the malfunction: Code Explanation...

  • Page 47: About Heart Rate Detection

    7. ABOUT HEART RATE DETECTION Heart rate detection functions are selected at the time of purchase. Not every product includes every type of heart rate detection device. The following explains factors that influence the performance of two of the most common types of heart rate detection devices.

  • Page 48: Guidelines For Exercise

    Note that in dry areas in particular, static electricity can interfere with unit operation and shock people. To discharge static electricity from your body, touch something else before touching metal on the product. 8. GUIDELINES fOR EXERCISE HOW HARD SHOULD I EXERCISE? Studies show that to benefit from aerobic exercise, people need to maintain a certain heart rate during their workouts.

  • Page 49: Accessories

    9. ACCESSORIES There are accessories attached to this console; some are standard and some are optional. The following explains the details of each accessory and its function. USB CHARGER (Standard) The USB charger will provide 5V 500mA voltage for the smart phone or other devices charging.

  • Page 50: Accessories Entertainment Cap

    9. ACCESSORIES (CONTINUED) Entertainment Cap (a) RFID member card slot: work with both optional SA WELL+ and ECOFIT member cards. (Not available yet.) (b) Bluetooth/WIFI connection button: press this button to pair the smart phone SA WELL+ App. (c) USB port: this port is used for device charging as well as optional data transferring.

  • Page 51: Accessories Mye Wireless Tv Audio_Channel Receivers

    9. ACCESSORIES (CONTINUED) MyE Wireless TV Audio_Channel Receivers: If your equipment has been installed MYE Wireless TV Audio_Channel Receivers, the display must has Channel Keys. Please make sure your equipment is with the correct sticker as below. (a) None Treadmill (Bike, Elliptical and Stepper...etc.) Left display: Without Channel Keys.
  • Page 52 9. ACCESSORIES (CONTINUED) MyE Wireless TV Audio_Channel Receivers fuctions: 1. The receiver has two kinds of module as below. (Note: MyE Wireless TV Audio_Channel Receivers and Module not provided.) (1). MC3R-9(900MHZ) must work with MYE Wireless TV Audio_Channel Receivers MWTD-S9. (2).

  • Page 53: Maintenance

    10. MAINTENANCE This section covers maintenance topics, including instructions on replacing a fuse and lubricating the walk belt, along with the presentation of a main- tenance schedule, maintenance task list, one-year maintenance log, and electronics block diagram. MAINTENANCE How to Replace a fuse If electrical current becomes too high, the fuse breaks.

  • Page 54: Maintenance Lubrication System

    MAINTENANCE Lubrication System Lubrication System flowchart Model No. Display ex: T655 Total Exercise 5 seconds Distance Display (km) Power On RESET Walks Belt Version Display Total Exercise Total Exercise Total Exercise Speed Total ex:T655 Distance Display (mile) Distance Display (km) Distance Display (km) Running Time...
  • Page 55 MAINTENANCE Lubrication System (Continued) To replace the lubricant bottle, follow instructions (a) through (d) below. (a) Loosen the screws on the bezel and push the bezel up. (b) Take the old lubricant bottle out. (c) Unscrew the nozzle from the old lubricant bottle and screw it onto new bottle.
  • Page 56 MAINTENANCE Lubrication System (Continued) Error Messages: There are 2 error messages with this system. Error 1: It indicates that the system memory failing and it will not be able to perform any auto lubrication. Error 2: It indicates motor is failing or system will not be able to perform any function.

  • Page 57: Maintenance Schedule

    MAINTENANCE Schedule Area Day Week Month Quarter Year Notes Exterior Clean. Screws Inspect and secure loose parts. Ensure the treadmill operates properly. Treadmill test Inspect alignment (centering) and look Walk belt for wear. Walk deck Inspect for wear. Belt guides Inspect for normal rotation.

  • Page 58: Maintenance Task List

    MAINTENANCE Task List Like cars, fitness products require maintenance. Regular maintenance ex- tends product life, and failure to maintain products can void the manufac- turer’s warranty. Copy the maintenance log sheet, and record maintenance work for each fitness product. Daily tasks 1.

  • Page 59: Maintenance One-Year Maintenance Log

    MAINTENANCE One-year Maintenance Log Facility:_______________________ Supervisor:____________________ Product model number:__________ Serial number:_________________ Start date: ____________________ End date:_____________________ Daily Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Week 22-28 Completed Daily Tasks Week 29-35 Week 36-42 Week 43-49 Week 50-52 Completed Weekly Tasks Weeks 1-7 Weeks 8-14 Weeks 15-21 Weeks 22-28...

  • Page 60: Maintenance Electronics Block Diagram

    MAINTENANCE Electronics Block Diagram USB Board iPod Audio Board Head Phone Board RFID Board Option CSAFE Board Continua Adapter Board Control Board Option Numeric Key Board HTR Board SA WELL+ Connection key Remote Option HRC Board Contact HTR plates E-stop/reed switch Bridge Board Fan Board Safety Key Board...
