OPERATION MANUAL
Serial Number

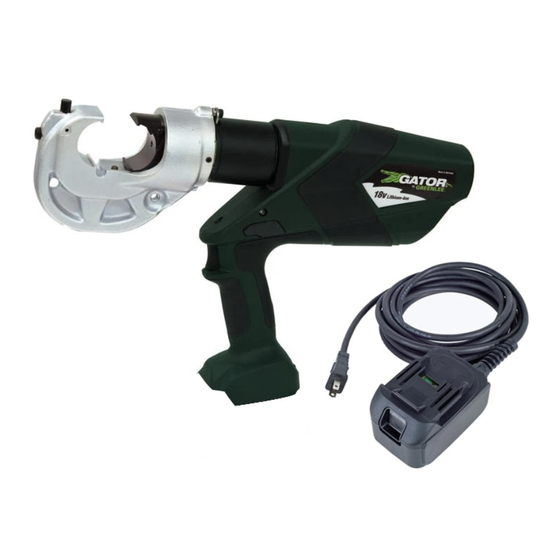

EK1230LX and EK1230CLX
GATOR
Battery-powered,
®
Crimping Tool
Read and understand all of the instructions and
safety information in this manual before operating
or servicing this tool.
Register this product at www.greenlee.com
52080017 REV 3
© 2019 Greenlee Tools, Inc.
6/19
Advertisement
Table of Contents
Related Manuals for Greenlee GATOR EK1230LX
Summary of Contents for Greenlee GATOR EK1230LX
- Page 1 EK1230LX and EK1230CLX GATOR Battery-powered, ® Crimping Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Register this product at www.greenlee.com 52080017 REV 3 © 2019 Greenlee Tools, Inc. 6/19...
-
Page 2: Table Of Contents
All specifications are nominal and may change as design improvements occur. Greenlee Tools, Inc. shall not be liable for This device complies with the RF exposure SAR damages resulting from misapplication or misuse of its products. -
Page 3: Important Safety Information
• Keep hands away from the crimp- ing tool head when crimping. Failure to observe these warnings could result in severe injury or death. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 4 Failure to observe these precautions may result in injury or property damage. Note: Keep all decals clean and legible, and replace when necessary. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 5: Identification
Crimping Range ................ 8 AWG to 750 kcmil Battery Charger .............Read the instructions supplied with the battery charger Battery Technology .............. MAKITA Lithium ion ® ® BL1830, BL1840, BL1850 Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 6: Operation
Send tool in for service at end of cycle * Running the battery below 16 V can damage the battery. Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... - Page 7 (evenly spaced) severe injury or death. First Compression Crimping Direction SIDE B (evenly spaced) First Compression SIDE A First Compression SIDE B Crimping Direction SIDE A (evenly spaced) Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070...
-
Page 8: Die Selection
YA-A ACL/ACN 60176; 400 to Aluminum VACL BLUA number provided with YA-ATN 2ACL/2ACN 60230 to 750 kcmil: Lugs the connector. ALNS/ALNN/ALND 60278 3 crimps Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 9: Lcd Screen
Tool deactivated Service necessary Real-time clock not found Bluetooth unit not found ® Pressure sensor not found Burst pressure exceeded Battery temperature too low Greenlee Tools, Inc. 4455 Boeing Dr. • Rockford, IL 61109-2988 USA • 815-397-7070... -
Page 10: Maintenance
3. Inspect the rotation of the head assembly. Fully debris or hydraulic oil. retract the ram. The head should rotate no more than 360°. If damage is detected, contact Greenlee customer service at 800-435-0786 for warranty service or repair. After use: 1. -
Page 11: Troubleshooting
