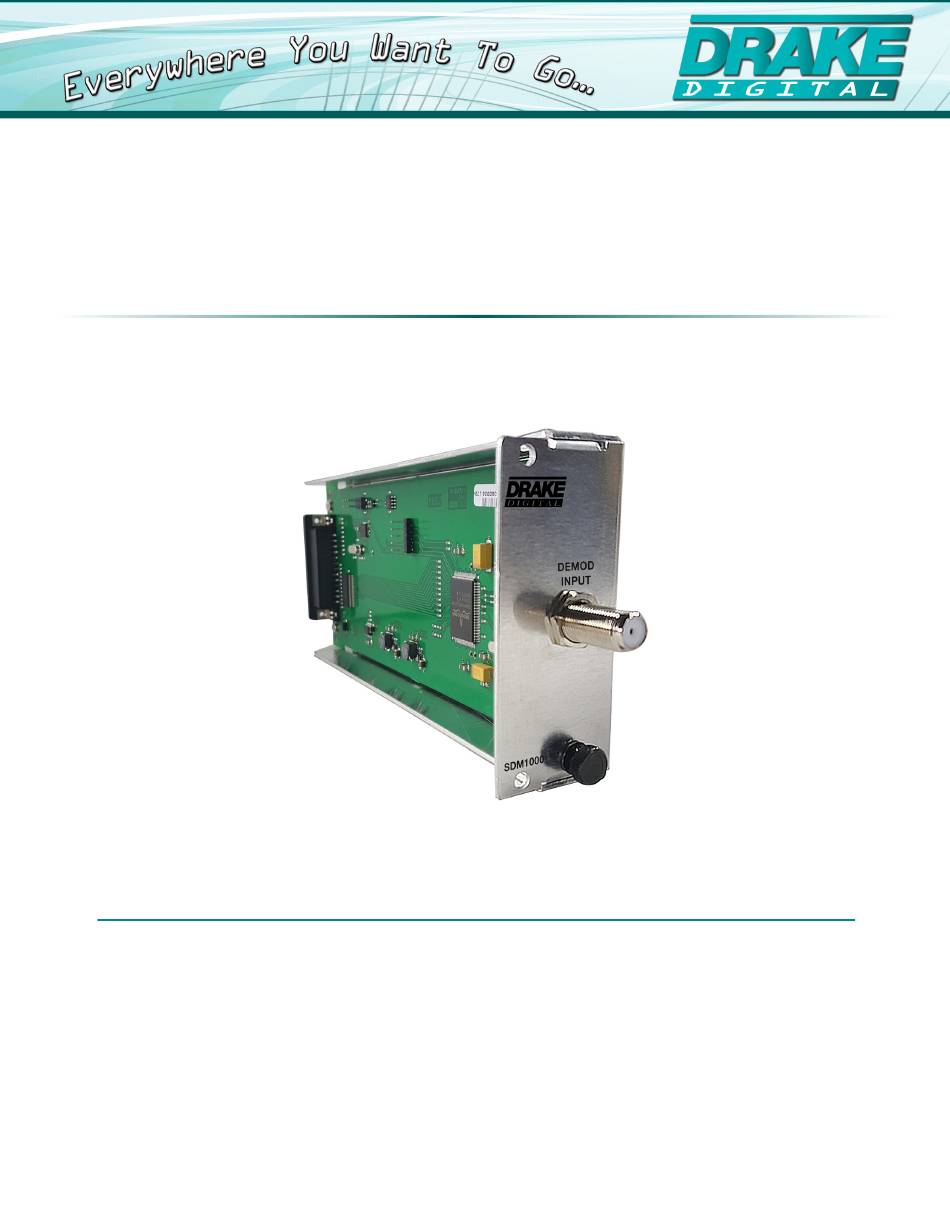

- Page 1 SDM1000 Satellite Demodulator Module INSTRUCTION MANUAL Model Item # Description SDM1000 1002576 Satellite Demodulator Module 800-523-6049 www.rldrake.com © 2017 R.L. Drake Holdings, LLC. Rev: 061317 / 651230500B...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read Instructions—All the safety and operating instructions should be read before the product, be sure the antenna or cable system is grounded so as to provide some protection product is operated. against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and sup- 2. - Page 3 Importantes De Sécurité 1. Lire les directives—Toutes les directives de sécurité et d’utilisation devraient être lues aux électrodes de mise à la terre et les spécifications pour les électrodes de mise à la terre. avant de mettre l’appareil en opération. Voir la figure A.
-
Page 4: General Information
2. Gently slide the SDM1000 into one of the open input module bays in the rear of the MEQ1000. 3. To make sure the SDM1000 is inserted correctly, the outer lip is flush against the rear wall of the MEQ1000. -
Page 5: Operation
Operation Power on the MEQ1000, and select the newly-inserted SDM1000 unit via the LEFT and RIGHT buttons on the front panel. The following configuration settings are available for the SDM1000 Frequency: 250 MHz to 2150 MHz Symbol Rate: 2-45 Msymbols/sec... - Page 6 Please perform whatever steps are applicable from the product’s Instruction Manual before calling or writing as this could save unnecessary phone charges. Please do not return the product without calling Drake Service and following the steps above first;...
-
Page 7: Limited Warranty
Blonder Tongue Laboratories, Inc. Limited Warranty Limited Warranty Blonder Tongue Laboratories, Inc. (BT) will at its sole option, either repair or replace (with a new or factory reconditioned product, Seller will at its sole option, either repair or replace (with a new or factory reconditioned product, as Seller may determin e) any product manufactured or sold (or in as BT may determine) any product manufactured by BT which proves to be defective in materials or workmanship or fails to Blonder Tongue Laboratories, Inc. - Page 8 R.L. DRAKE HOLDINGS, LLC Sales and Service: 800-523-6049 • Fax: 732-679-4353 www.rldrake.com...
