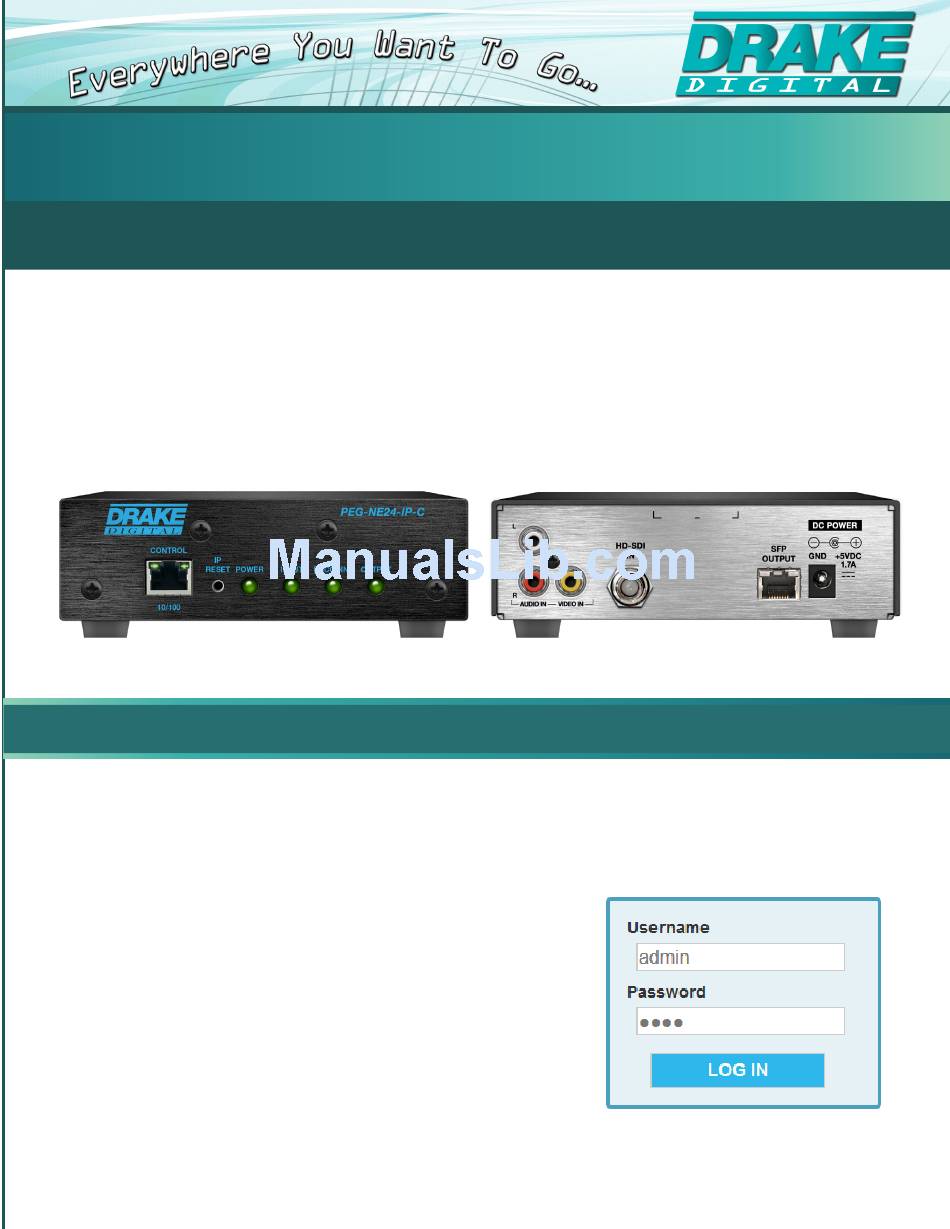

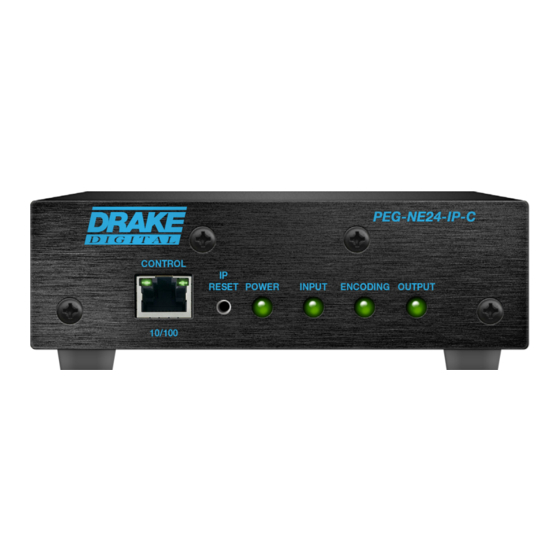

DRAKE PEG-NE24-IP-C Quick Manual

PEG-NE24-IP-C QUICK GUIDE
DESCRIPTION
The PEG-NE24-IP-C is a stand-alone H.264 digital video PEG channel encoder with a single SD/HD-SDI, or
composite video input, and an IP-encapsulation output via a single SFP Ethernet port. A separate RJ45 10/100
Ethernet port is provided for control and monitoring capability.
The PEG-NE24-IP-C features selectable SDI PCM-embedded audio, or analog left and right audio. A Second
Audio Program (SAP) channel is available via a SDI PCM-embedded audio track. Audio compression can be
either Dolby® Digital, MPEG1-Layer 2 stereo, or AAC stereo.
STEP 1: Setup and Login
First, connect the appropriate input and output video cables and plug in the PEG-NE24 power cable.
Local or remote communication with the unit is only possible through a GUI-based menu via any standard
web browser Chrome or Firefox is recommended, for IE use IE8 minimum. Before being able to communicate
with the unit, the user must configure the computer's Local Area Network connection to be in the same sub-
net as the PEG default IP ( 172.16.70.1 ).
Connect an Ethernet cable from your computer to the Control
10/100 port of the PEG.
• Assign "172.16.70.2" as the static IP address for the control
computer.
• Enter "172.16.70.1" (default address) into the Browser to access
the PEG Encoder.
• Login with Username: "admin" and password "pass".
