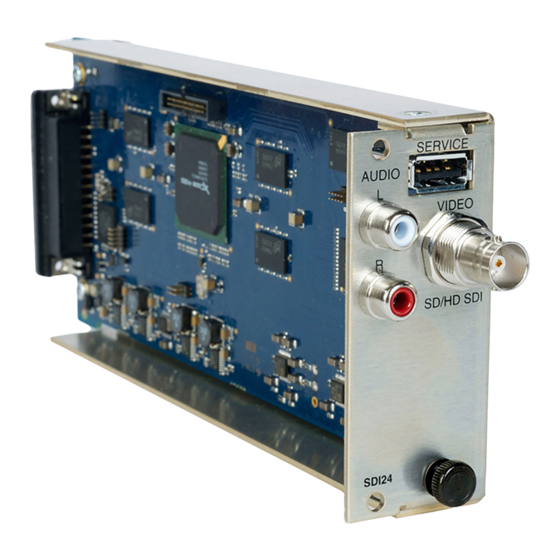

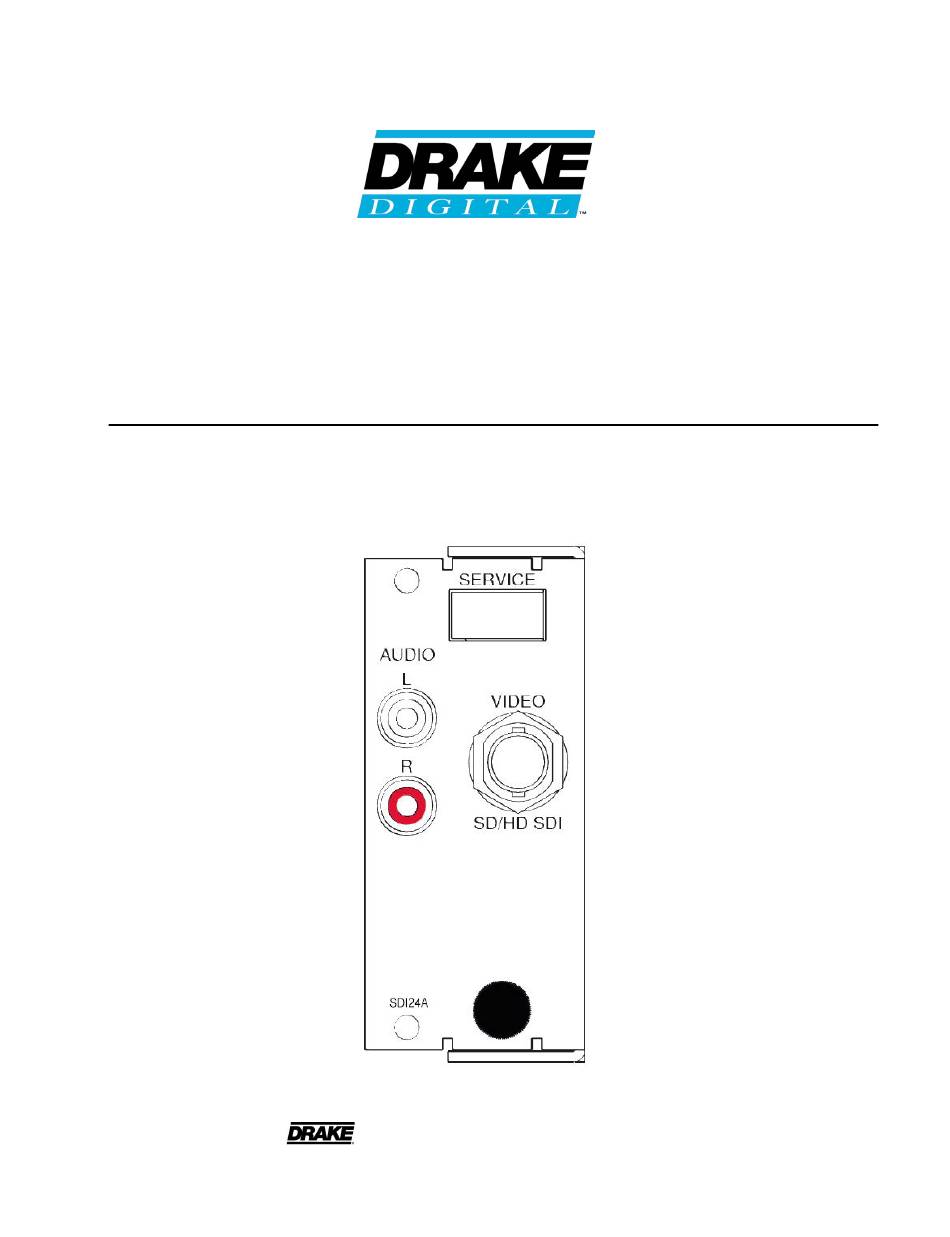

- Page 1 SDI24A High-Definition Encoder Instruction Manual is a registered trademark of the R.L. Drake Holdings, LLC P/N: © Copyright 2012 R. L. Drake Holdings, LLC 651230300A Printed in the USA. Rev: 20121026 1002516A...
-
Page 2: Caution Statements
Table of Contents, Caution, & Important Safety Instructions CAUtioN StAtemeNtS .............................2 imPoRtANt SAfety iNStRUCtioNS ......................2 iNtRoDUCtioN / SetUP / oPeRAtioN ......................4 SPeCifiCAtioNS / fRoNt PANeL ........................5 WARRANty ................................7 Caution Statements: A product and cart combination should be moved WARNING: to PReVeNt fiRe oR with care. - Page 3 Important Safety Instructions (continued) Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. the product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product.
- Page 4 Audio Rate: 320kbps, 384kbps, 128kbps, Upgrading Firmware 192kbps - sets the bandwidth used by the audio encoder the SDi24A's firmware may be upgraded in the field, using a removable USB flash drive. once you have obtained the latest firmware version NOTES: file, copy the file onto a removable flash drive.
- Page 5 Specifications / Front Panel VIDEO INPUTS SD-SDI/HD-SDI: 1x75-ohm HD-SDi capable input AUDIO INPUTS RCA-type L+R: 1x 1Vrms nominal, 3.5Vrms maximum SDI Embedded Audio: Supports PCm (uncompressed) digital audio from SDi VIDEO OPTIONS Input Video Modes Supported: 480i (720x480 @ 30fps) 576i (720x576 @ 25fps) 720p@60Hz (1280x720 @ 60 fps) 1080i@30Hz (1920x1080 @ 30fps)
- Page 6 Notes...
-
Page 7: Three-Year Limited Warranty
Warranty Three year Limited Warranty R.L. DRAKe HoLDiNGS LLC warrants to the original purchaser this product shall be free from defects in material or workmanship for three (3) years from the date of original purchase. During the warranty period R.L. DRAKe HoLDiNGS LLC or an authorized Drake service facility will provide, free of charge, both parts and labor necessary to correct defects in material and workmanship. - Page 8 R.L. DRAKE HOLDINGS LLC 1 Jake Brown Road Old Bridge, NJ 08857 Sales and Service 800-523-6049 Fax: 732-679-4353 Web Site: www.rldrake.com...
