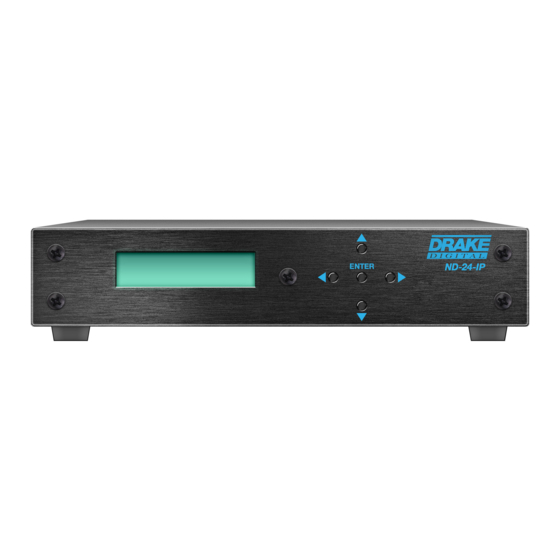

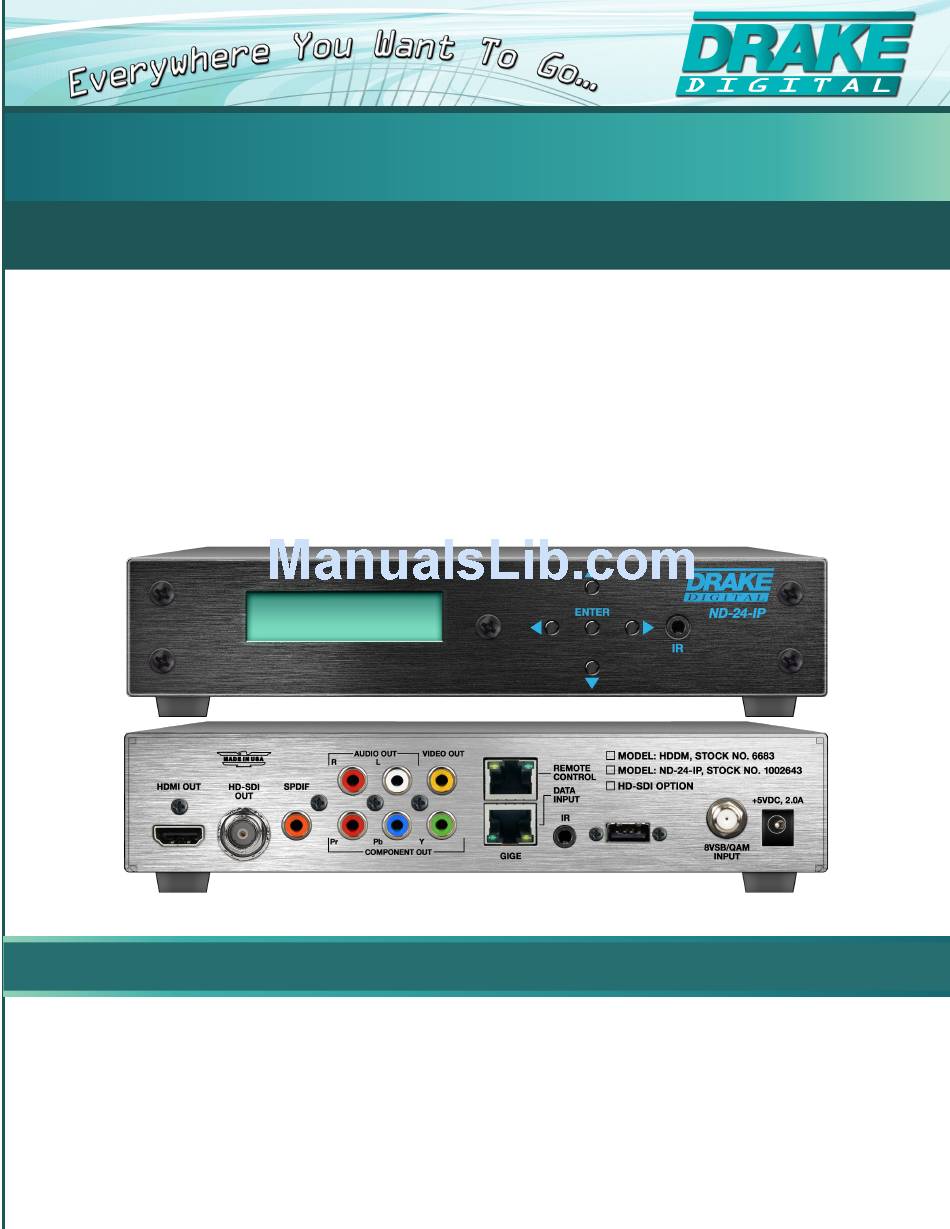

DESCRIPTION

The ND-24-IP is a low cost professional MPEG-2 and H.264 decoder that is capable of receiving content from

off-air, clear QAM, and IP sources. The ND-24-IP is capable of simultaneously outputting video content in

SDI, HDMI and component formats. SDI outputs are available in 3G-SDI, HD-SDI, or SD-SDI formats.

The unit can be used as a stand-alone high quality decoder, or used in conjunction with other IP encoders,

to provide an end-to-end IP video delivery solution over a managed network.

When the ND-24-IP decoder is used with Drake's PEG encoder (with Zixi option) and a Zixi Link License, it can

provide a point-to-point reliable IP video transport from anywhere in the world with an internet connection.

The ND-24-IP can also be used in a point-to-multipoint application, where the ND-24-IP would decode the IP

based Zixi protocol stream from a Zixi Broadcaster.

Access and programming of the ND-24-IP is through the rear panel remote control ethernet port. There are

two options for the ethernet control interface setup: DHCP enabled or DHCP disabled. If you are connected

from a LAN router then enable DHCP.

The router will automatically assign a local IP address that will be displayed on the front panel. If you are

connecting directly to a computer the default IP address is 172.16.80.1. Make sure you have your computer's

ethernet adapter within the same subnet when using the default IP address.

www.rldrake.com

Document#651242800B / Item#1002643

Table of Contents

Do you have a question about the ND-24-IP and is the answer not in the manual?

Page 1 IP video delivery solution over a managed network. When the ND-24-IP decoder is used with Drake’s PEG encoder (with Zixi option) and a Zixi Link License, it can provide a point-to-point reliable IP video transport from anywhere in the world with an internet connection.
Page 2 STEP 1: Login (continued) Pressing the ENTER key will enter the selected menu item. Selecting DHCP: disabled will provide additional settings for IP Address, Subnet Mask and Gateway Address. For editable items the LEFT ARROW and RIGHT ARROW keys will move the cursor left and right, the UP ARROW and DOWN ARROW keys will modify the value at the cursor, and the ENTER key will accept the new value and return to the previous menu.
Page 3 STEP 2: Configure Inputs (continued) Zixi Push Input If a Zixi Link License is not pre-installed with the unit for point-to-point links over the public internet, a separate Zixi Link License (Model: ND-24-Zixi-LIC; P/N: 1002654) will be required. Service Type: Zixi Push Zixi Port: specify Zixi Port Channel/Stream ID: must match either a PEG encoder ID for point to point or Zixi server stream ID for broadcast applications...
Page 4 Select the desired program by checking the respective Select box. Apply new settings or Revert Changes to previous settings. Download the full manual for more information on configurable options and settings at: www.rldrake.com CONTACT DRAKE FOR MORE INFO | TECH SERVICES: 937-746-6990...
