IM30-GLF
Rev.
3
Date
14.02.2005

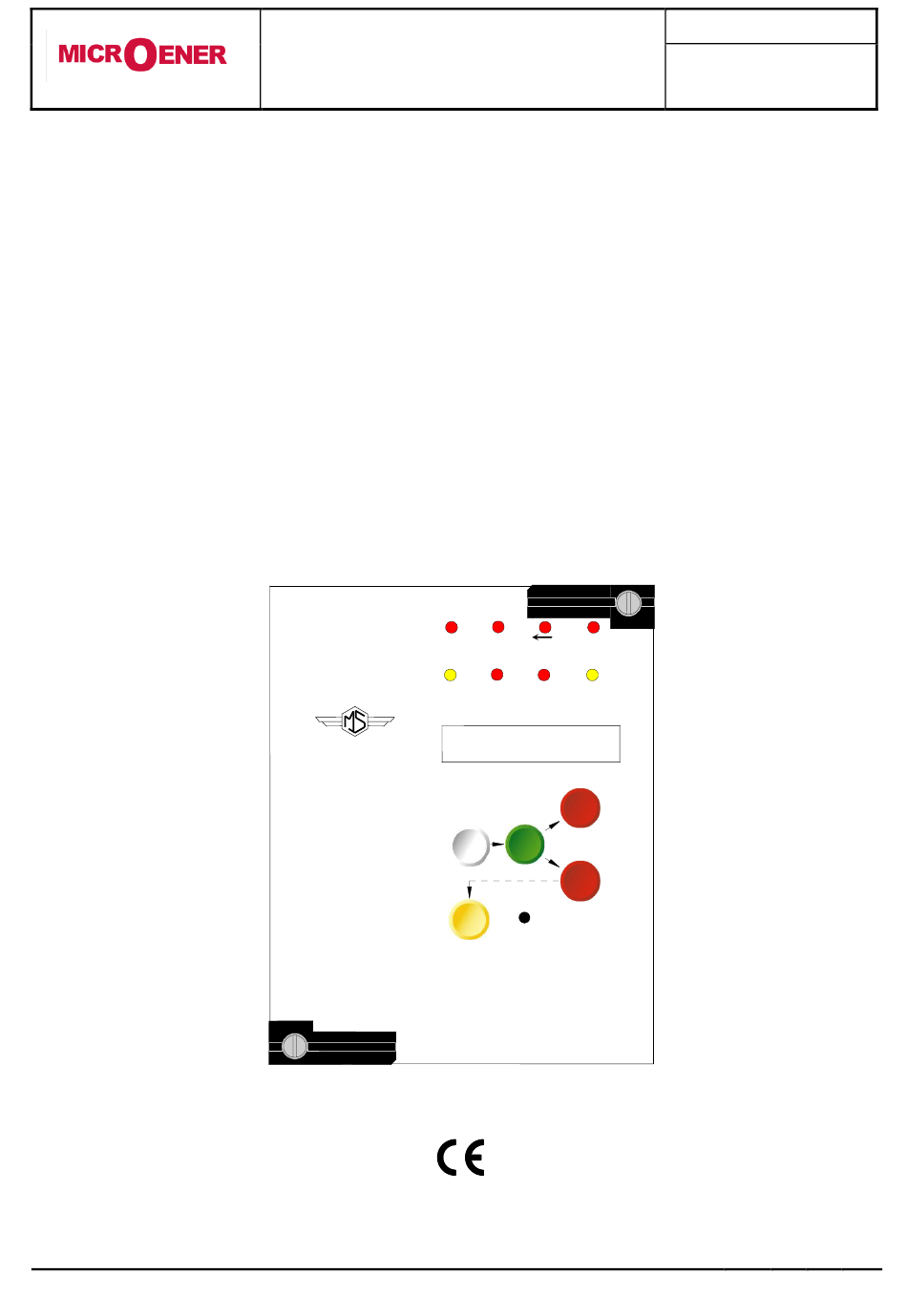

MULTIFUNCTION MICROPROCESSOR
PROTECTION RELAY
TYPE
IM30-GLF
OPERATION MANUAL
I
>
O>
I>->>
Ir
2
PROGR/
Z<
BR.
B.I/
I.R.F.
FAIL.
F.D.
MICROELETTRICA
SCIENTIFICA
MILANO
ITALY
+
MODE SELECT
GENERATOR
-
PROTECTION
RELAY TYPE
PROG.
IM30-G
ENTER/RESET
Copyright 2010 - Microener
Pag
1
of
31
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MICROENER IM30-GLF
Summary of Contents for MICROENER IM30-GLF
- Page 1 Doc. N° MO-0062-ING IM30-GLF Rev. Date 14.02.2005 MULTIFUNCTION MICROPROCESSOR PROTECTION RELAY TYPE IM30-GLF OPERATION MANUAL > O> I>->> PROGR/ Z< B.I/ I.R.F. FAIL. F.D. MICROELETTRICA SCIENTIFICA MILANO ITALY MODE SELECT GENERATOR PROTECTION RELAY TYPE PROG. IM30-G ENTER/RESET Copyright 2010 - Microener...
-
Page 2: Table Of Contents
21. DIRECTION FOR PCB'S DRAW-OUT AND PLUG-IN _____________________________________________________ 27 21.1 - Draw-out ____________________________________________________________________________________ 27 21.2 - Plug-in _____________________________________________________________________________________ 27 22. MOUNTING _____________________________________________________________________________________ 28 23. KEYBOARD OPERATIONAL DIAGRAM ______________________________________________________________ 29 24. SETTING’S FORM ________________________________________________________________________________ 30 Copyright 2010 - Microener Firmware: 2.0X... -
Page 3: General Utilization And Commissioning Directions
The electronic circuits reduced by M.S. are completely safe from electrostatic discharge (8 KV IEC 255.22.2) when housed in their case; withdrawing the modules without proper cautions expose them to the risk of damage. Copyright 2010 - Microener Firmware: 2.0X... -
Page 4: Maintenance
F(I>)=D (see § 12). On the contrary the current unbalance element F46 operates properly even at low-frequency because the heating of the rotor produced by the negative sequence component is by itself inversely proportional to the frequency. Copyright 2010 - Microener Firmware: 2.0X... -
Page 5: Power Supply
80V(-20%) / 220V(+15%) a.c. a) - b) - 24V(-20%) / 125V(+20%) d.c. 90V(-20%) / 250V(+20%) d.c. Before energising the unit check that supply voltage is within the allowed limits. Copyright 2010 - Microener Firmware: 2.0X... -
Page 6: Measuring Input
(see figure) Angles are measured anticlockwise from 0° to 360° with accuracy 2°. Displacement is not measured if current or voltage are null. Copyright 2010 - Microener Firmware: 2.0X... -
Page 7: Algorithms Of The Different Functions
Setting O> = Dis. blocks function’s operation : 0.95 Drop-out ratio Minimum operation time of the instantaneous element : 30ms Independent trips time delay : t = tO> = (0.05-30)s, step 0.01s Copyright 2010 - Microener Firmware: 2.0X... -
Page 8: F46 - Current Unbalance : Measurement Of Rms Negative Sequence Current I
Setting Ir> = Dis blocks function’s operation : = Ic cos (c-180°) [Ir] Operation level Independent trip time delay : tIr> = (0.1-60)s, step 0.1s Operation zone : (-90°+180°)<c<(90°+180°) Copyright 2010 - Microener Firmware: 2.0X... -
Page 9: F21/40 - Directional Underimpedance / Loss Of Excitation
Diameter = K1 Circle offset : K2 = (5-50)%Zb, step 1% Circle diameter : K1 = (50-300)%Zb, step 1% Setting K1 = Dis blocks the function’s operation Zb Copyright 2010 - Microener Firmware: 2.0X... - Page 10 I I with Ib = 2A, K1 = 200%, K2 = 50% currents are 6,93A (0,4 1,39A Trip must take place for : 1,39A<I<6,93A Copyright 2010 - Microener Firmware: 2.0X...
-
Page 11: Configuration Of The Output Relays (See § 5)
= Ir> = Zc< 46-1 = 1Is 46-2 = 2Is 50-1 = I> 50-2 = I>> 51-1 = tI> 51-2 = tI>> = O> = tO> (X) = if required ; X = needed Copyright 2010 - Microener Firmware: 2.0X... -
Page 12: Controls And Measurements
If not tripped, this button altered. restores the default display. Copyright 2010 - Microener Firmware: 2.0X... -
Page 13: Signalizations
Leds f,g,h From ON to OFF, automatically when the lit-on cause disappears. In case of auxiliary power supply failure the status of the leds is recorded and reproduced when power supply is restored. Copyright 2010 - Microener Firmware: 2.0X... -
Page 14: Output Relays
- The relays R1,R2,R3,R4 are normally deenergized (energised on trip): these output relays are user programmable and any of them can be associated to one of the IM30-GLF's functions. One relay eventually associated to the instantaneous element of one of the functions, after pick-up normally drops-out as soon as the tripping cause disappears (current below the set trip level). -
Page 15: Digital Inputs
4 ms). If any internal fault is detected, the display shows a fault message, the Led "PROG/IRF" illuminates and the relay R5 is deenergized. Complete test activated by the keyboard or via the communication bus either with or without tripping of the output relays. Copyright 2010 - Microener Firmware: 2.0X... -
Page 16: Keyboard And Display Operation
- Yellow key ENTER/RESET : It allows the validation of the programmed settings - the actuation of test programs - the forcing of the default display indication - the reset of signal Leds. e) - Indirect key : Enables access to the programming. Copyright 2010 - Microener Firmware: 2.0X... -
Page 17: Reading Of Measurements And Recorded Parameters
In Max. current of phase A during the first 100ms. xxxx xxxx In As above, phase B. In As above, phase C. xxxx xxxx On As above, earth fault current. xxxx % Max. input voltage during the first 100ms Copyright 2010 - Microener Firmware: 2.0X... -
Page 18: Lasttrip
SETTING= values of relay's operation parameters as programmed; the setting program actually active is displayed with steady light whereas the stand-by program is displayed with flashing light. FRELAY= output relay associated to the different functions as programmed. Copyright 2010 - Microener Firmware: 2.0X... -
Page 19: Programming
1 - 100 t2Is 0.02 Trip level of the reverse power element (Active component of Ir> 0.02 - 0.2 - Dis 0.01 current as p.u. of In). The Reverse Power function disactivated when frequency 36Hz Copyright 2010 - Microener Firmware: 2.0X... -
Page 20: Programming The Configuration Of Output Relays
=OFF) or so that, even with the blocking input still present, it only lasts for the set trip time delay of the function plus an additional time 2xtBF (t =2xtBF). The blocking input (3) operate on function Z< or IR> as programmed --Ir Copyright 2010 - Microener Firmware: 2.0X... -
Page 21: Manual Test Operation
This is extremely important as discharges eventually tacking place in other parts or components of the board can severely damage the relays or cause damages, not immediately evident to the electronic components. Copyright 2010 - Microener Firmware: 2.0X... -
Page 22: Electrical Characteristics
Microelettrica Scientifica S.p.A. - 20089 Rozzano (MI) - Italy - Via Alberelle, 56/68 Tel. (+39) 02 575731 - Fax (+39) 02 57510940 http://www.microelettrica.com ute@microelettrica.com e-mail : The performances and the characteristics reported in this manual are not binding and can modified at any moment without notice Copyright 2010 - Microener Firmware: 2.0X... -
Page 23: Connection Diagram (Sce1395 Rev.5 - Standard Output)
Doc. N° MO-0062-ING IM30-GLF Rev. Date 14.02.2005 17. CONNECTION DIAGRAM (SCE1395 Rev.5 - Standard Output) 17.1 - CONNECTION DIAGRAM (SCE1468 Rev.2 - Double Output) Copyright 2010 - Microener Firmware: 2.0X... -
Page 24: Wiring The Serial Communication Bus (Sce1309 Rev.0)
Doc. N° MO-0062-ING IM30-GLF Rev. Date 14.02.2005 18. WIRING THE SERIAL COMMUNICATION BUS (SCE1309 Rev.0) Copyright 2010 - Microener Firmware: 2.0X... -
Page 25: Time Current Curves F51 - Im30-G (Tu0311 Rev.0)
Doc. N° MO-0062-ING IM30-GLF Rev. Date 14.02.2005 19. TIME CURRENT CURVES F51 - IM30-G (TU0311 Rev.0) Copyright 2010 - Microener Firmware: 2.0X... -
Page 26: I 2 T = Constant Element F46 - Im30-G (Tu0312 Rev.0)
Doc. N° MO-0062-ING IM30-GLF Rev. Date 14.02.2005 20. I t = constant element F46 - IM30-G (TU0312 Rev.0) Copyright 2010 - Microener Firmware: 2.0X... -
Page 27: Direction For Pcb's Draw-Out And Plug-In
Slide-in the card on the rails provided inside the enclosure. Plug-in the card completely and by pressing the handle to the closed position. Rotate anticlockwise the screws and with the mark in the vertical position (locked). Copyright 2010 - Microener Firmware: 2.0X... -
Page 28: Mounting
Doc. N° MO-0062-ING IM30-GLF Rev. Date 14.02.2005 22. MOUNTING PANEL CUT-OUT 113x142 (LxH) View of Rear Terminal Connection Copyright 2010 - Microener Firmware: 2.0X... -
Page 29: Keyboard Operational Diagram
Doc. N° MO-0062-ING IM30-GLF Rev. Date 14.02.2005 23. KEYBOARD OPERATIONAL DIAGRAM Copyright 2010 - Microener Firmware: 2.0X... -
Page 30: Setting's Form
Trip time delay of the underimpedance element 0.2 - 60 Integration time of underimpedance element. 0 - 10 Max. reset time delay of the instantaneous 0.05 - 0.5 0.05 elements after tripping Copyright 2010 - Microener Firmware: 2.0X... - Page 31 2xtBF (t =2xtBF). The blocking input (3) operate on function Z< or IR> as --Ir programmed Commissioning Engineer: Date : Customer Witness: Date : Copyright 2010 - Microener Firmware: 2.0X...
