MICROENER ULTRA Series Operation Manual

Digital-multifunction transformer differential protection relay multiple i/o boards
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

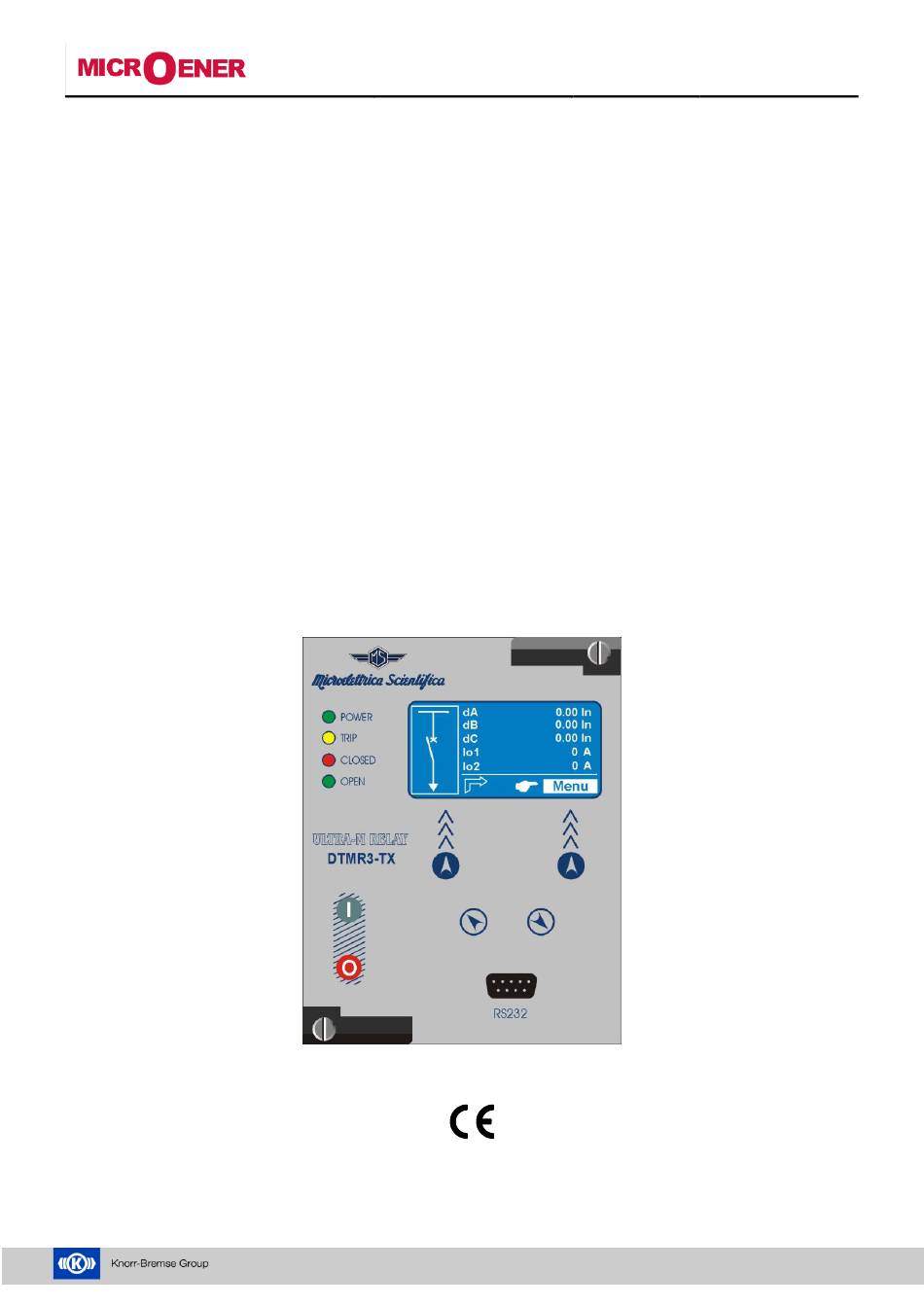

DTMR3-TX
MO-0377-ING
Doc. N°
DIGITAL-MULTIFUNCTION
TRANSFORMER DIFFERENTIAL
PROTECTION RELAY
TYPE
DTMR33-TX
(Multiple I/O Boards)
ULTRA Line
OPERATION MANUAL
Copyright 2010
Data
01.04.2009
Rev.
0
Pag.
1
of
87
