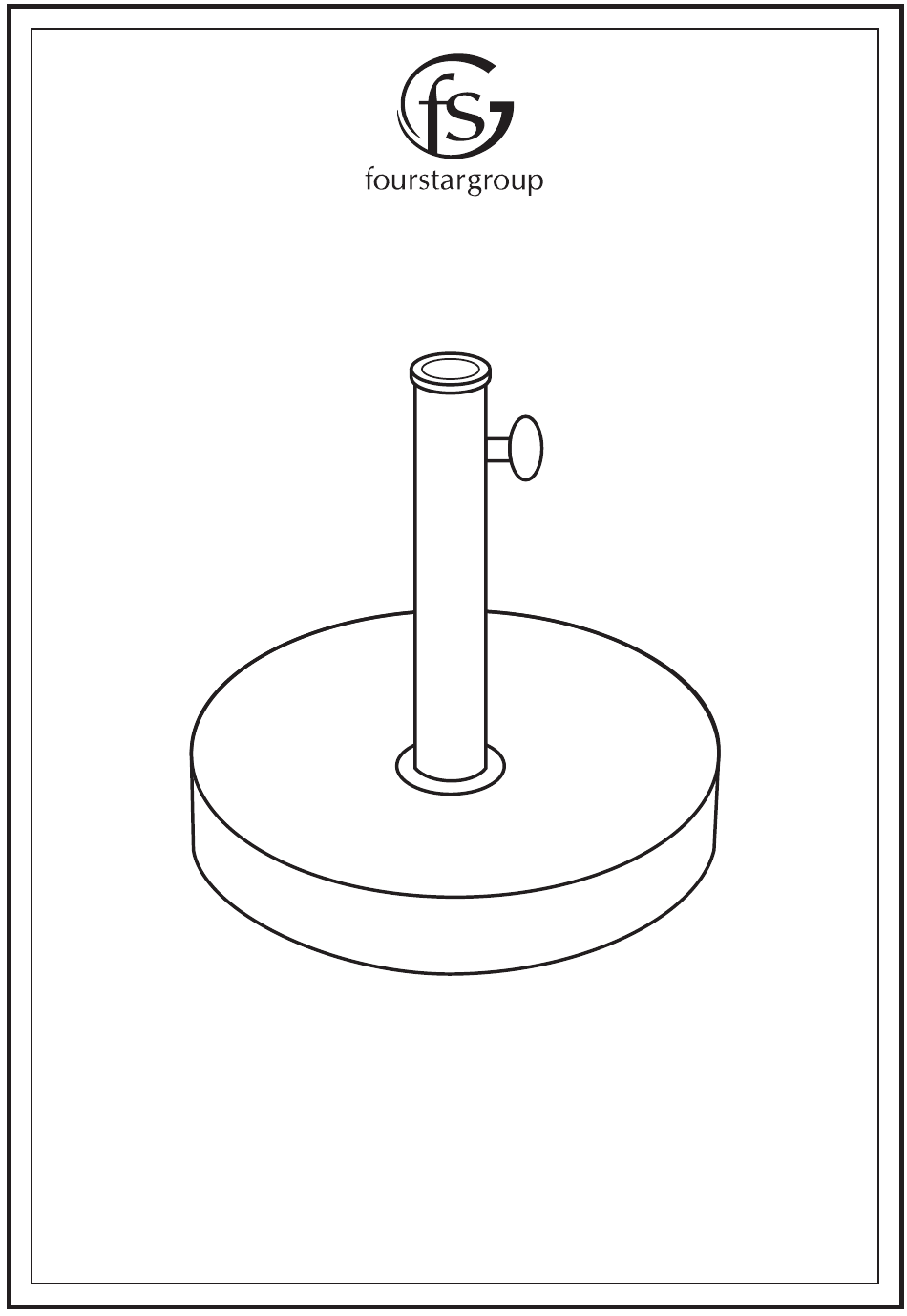

- Page 1 MODEL: 12504424R UMBRELLA BASE...
- Page 2 PARTS LIST AND HARDWARE HARDWARE LIST PLASTIC ADAPTORS 3PCS Φ41mm Φ37mm Φ33mm STEEL TUBE TIGHTENING KNOB PLASTIC WASHER BASE PLATE PRECAUTIONS: 1. BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS THOROUGHLY. FOLLOW THEM STEP BY STEP. 2. CHECK ALL PARTS AND HARDWARE LISTED ON THE PARTS LIST.
- Page 3 ASSEMBLY INSTRUCTION STEP 1 ATTACH PLASTIC ADAPTORS (A) INTO THE TOP OF STEEL TUBE (B), SCREW TIGHTENING KNOB (C) INTO STEEL TUBE (B) AS SHOWN. STEP 2 TAKE STEP 1 FINISHED PART THROUGH PLASTIC WASHER (D), THEN SCREW INTO BASE PLATE (E) AS SHOWN. Please include the following information in your email: Do you have any questions? Missing small parts or hardware? •...
