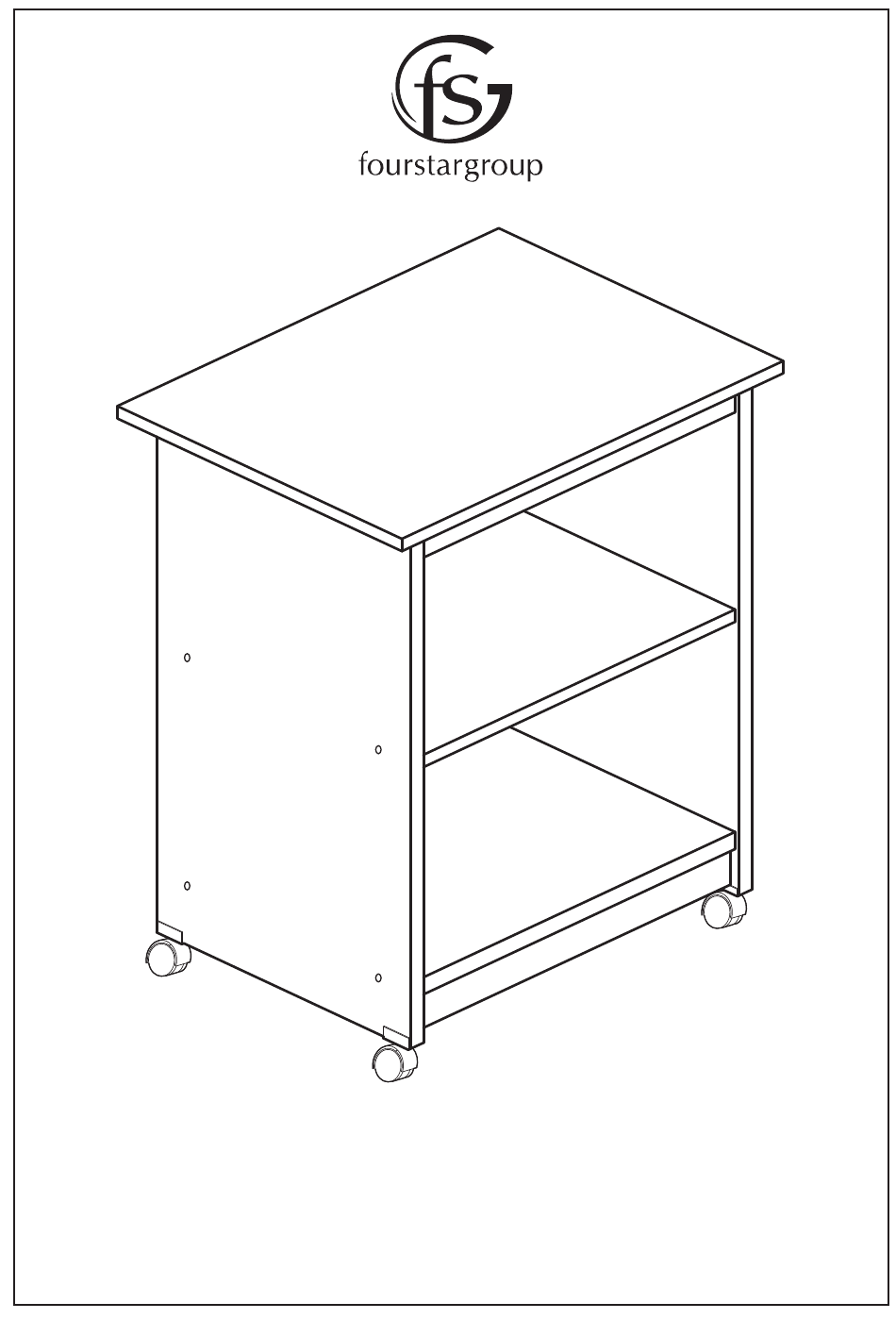

- Page 1 MODEL: 1209737V MULTI-PURPOSE UTILITY CART...
- Page 2 PARTS HARDWARE LIST C/B SCREW 8 pcs 6 x 1/2 in. SCREW 16 pcs CORNER BRACKET 8 pcs SOCKET CASTER 4 pcs 'U' BRACKET 4 pcs 8 x 1/2 in. SCREW 8 pcs PARTS LIST TOP PANEL 1 pc L&R SIDE 2 pcs PANEL SHELF &...
- Page 3 BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION : 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 ASSEMBLY INSTRUCTIONS BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. STEP 1: ATTACH CORNER BRACKET (3) TO TOP PANEL (A) AND BOTTOM PANEL (C) USING 8 x 1/2 in. SCREWS (6), AS SHOWN. SIDE UNFINISHED SURFACE 6 8 x 1/2 in.
- Page 5 STEP 2: ATTACH L&R SIDE PANELS (B) AND SHELF PANEL (C) TO ASSEMBLED STEP 1 USING C/B SCREWS (1) & 6 x 1/2 in. SCREW (2), AS SHOWN. UNFINISHED SURFACE UNFINISHED SURFACE UNFINISHED SURFACE 1 C/B SCREW - 8 PCS 2 6 x 1/2 in.
- Page 6 STEP 3: ASSEMBLE STEP 1 TO STEP 2 USING 6 x 1/2 in. SCREWS (2), AS SHOWN. UNFINISHED SURFACE 2 6 x 1/2 in. SCREW - 4 PCS...
- Page 7 STEP 4: ATTACH UPPER SKIRT PANEL (D) AND LOWER SKIRT PANEL (E) TO ASSEMBLED STEP 4 USING 6 x 1/2 in. SCREWS (2), AS SHOWN. ATTACH U-BRACKETS (5) AND SOCKET CASTERS (4) TO THE BOTTOM OF (B) L&R AS SHOWN. UNFINISHED SURFACE UNFINISHED...
- Page 8 Top shelf weight limit 127 lbs. Shelf weight limit 93 lbs. This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in Shelf weight limit 93 lbs.
