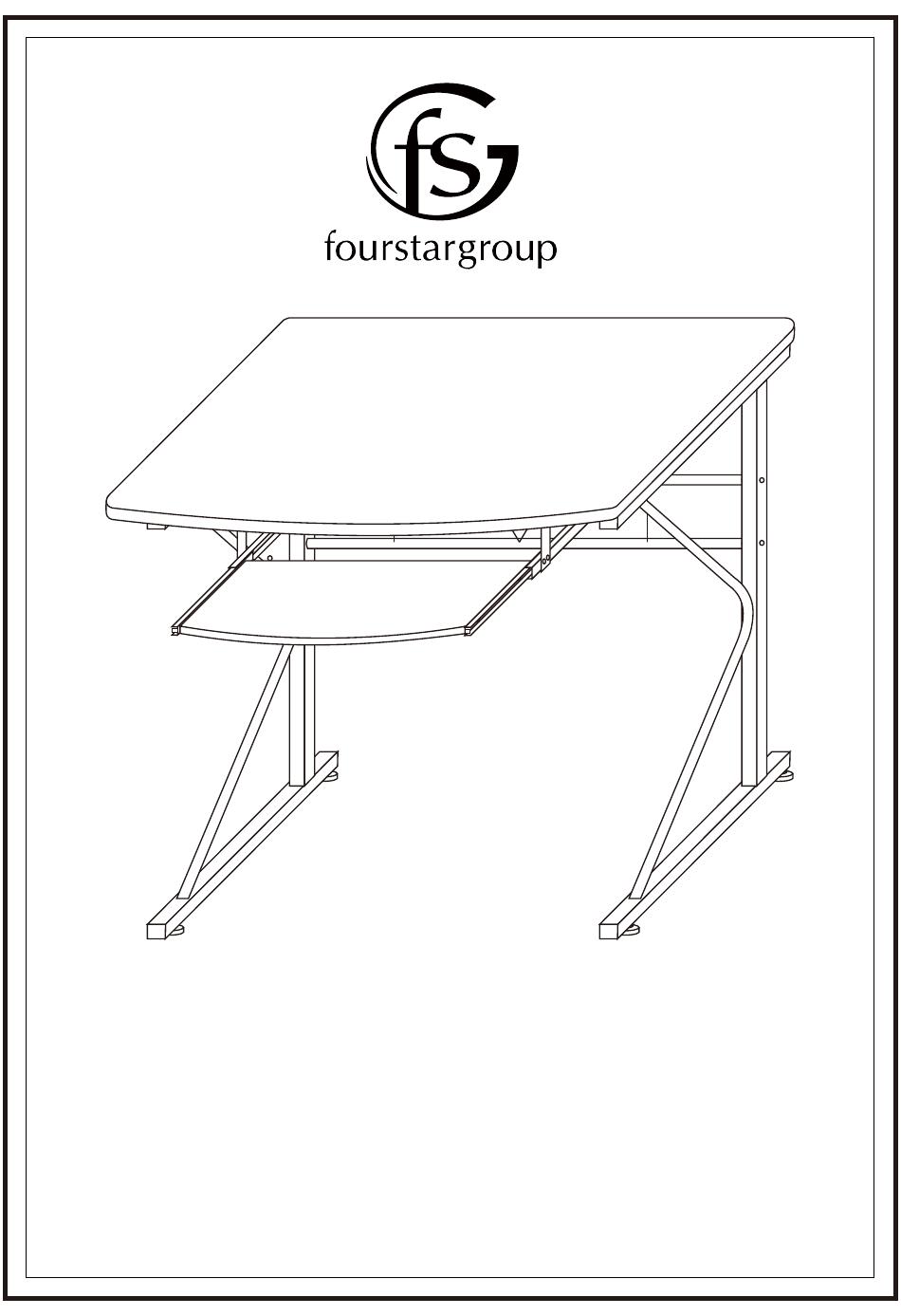

- Page 1 MODEL: 11222327F / MODELO: 11222327F COMPUTER DESK ESCRITORIO DE COMPUTADORA...
- Page 2 PARTS AND HARDWARE LISTA DE PARTES Y HARDWARE HARDWARE LIST LISTA DE HARDWARE TOP PANEL 1 PC PANEL SUPERIOR 1 PZ KEYBOARD PANEL 1 PC PANEL DE TECLADO 1 PZ SIDE LEG 2 PCS PATA LATERAL 2 PZS CONNECTION RACK 1 PC ESTANTE CONECTOR 1 PZ...
- Page 3 ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSAMBLAJE CAUTION: 1. PLEASE CAREFULLY READ AND FOLLOW THESE INSTRUCTIONS. 2. ASSEMBLE ON SOFT SURFACE TO PREVENT DAMAGE TO THE PRODUCT’S FINISH. 3. FOR EASIER ASSEMBLY, 2 PEOPLE SHOULD ASSEMBLE THE DESK. 4. DON’T TIGHTEN BOLTS UNTIL ALL PARTS ARE ASSEMBLED. 5.
- Page 4 STEP 2 ATTACH KEYBOARD PANEL (B) TO LEFT SLIDE (E) AND RIGHT SLIDE (F) AS SHOWN. PASO 2 UNA EL PANEL DE TECLADO (B) A LA CORREDERA IZQUIERDA (E) Y A LA DERECHA (F) COMO SE MUESTRA. STEP 3 ATTACH BOTTOM BOLTS (G) TO THE BOTTOM OF SIDE LEGS (C), AND THEN ATTACH CONNECTION RACK (D) TO SIDE LEGS (C) USING LARGE BOLTS (I) AS SHOWN.
- Page 5 STEP 4 ATTACHED FINISHED STEP 3 FRAME TO FINISHED STEP 2 USING LARGE BOLTS (I) AS SHOWN. PASO 4 CONECTE PASO TERMINADO 3 AL PASO 2 CON PERNOS GRANDES (I) COMO SE MUESTRA. STEP 5 TIGHTEN ALL BOLTS BEFORE TURNING DESK OVER AND MOVING TO ITS NEW LOCATION.
- Page 6 40 LBS (18.1 KG) 5LBS (2.2 KG) WEIGHT MAXIMUM: 40LBS (18.1KG) PESO MAXIMO: 40LBS (18.1KG) Esta unidad está destinada sólo para su uso con This unit is intended for use with items that los productos y pesos máximos indicados. Si don’t exceed the maximum weights usted utilize esta mesa con otros productos o de indicated.
