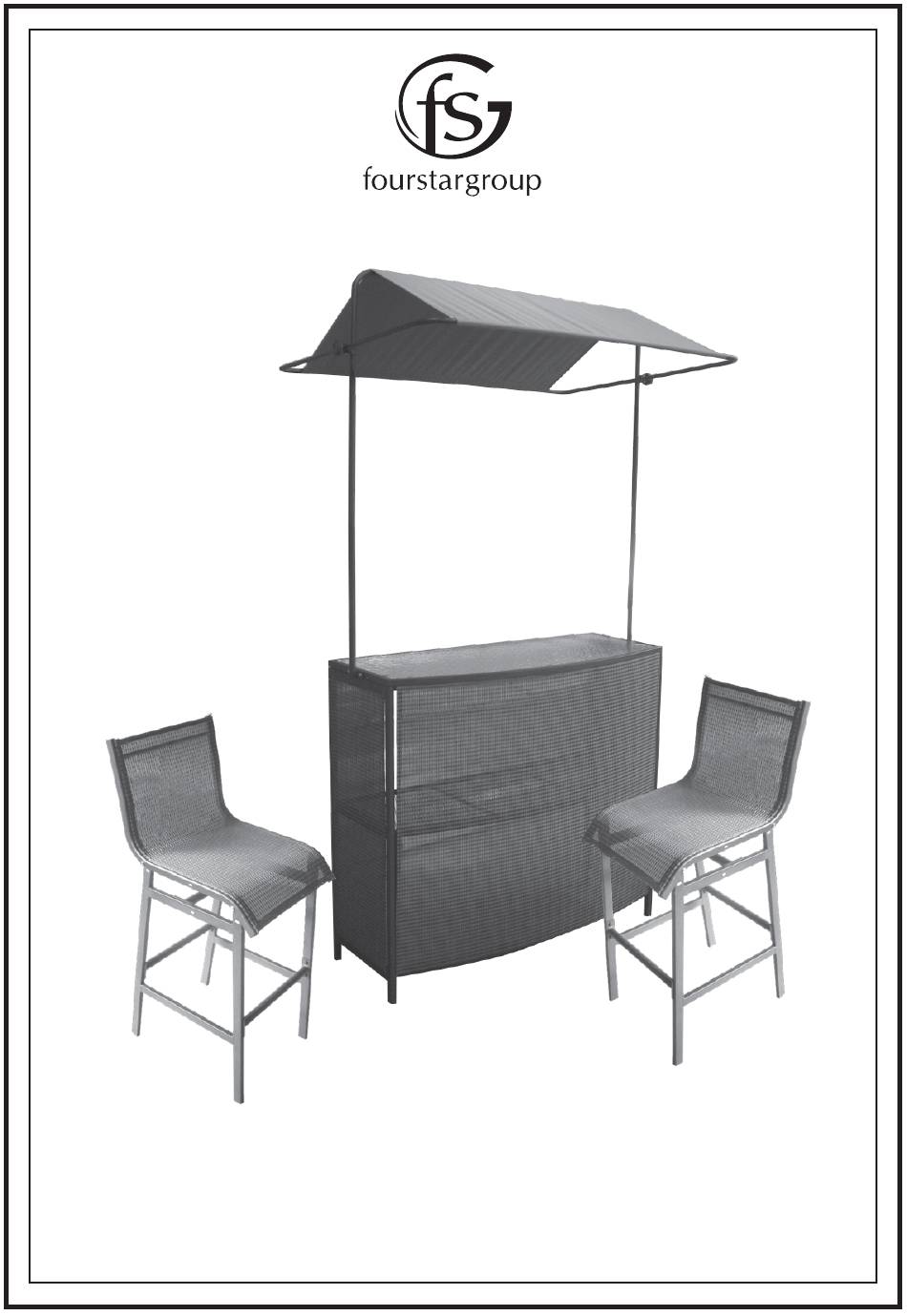

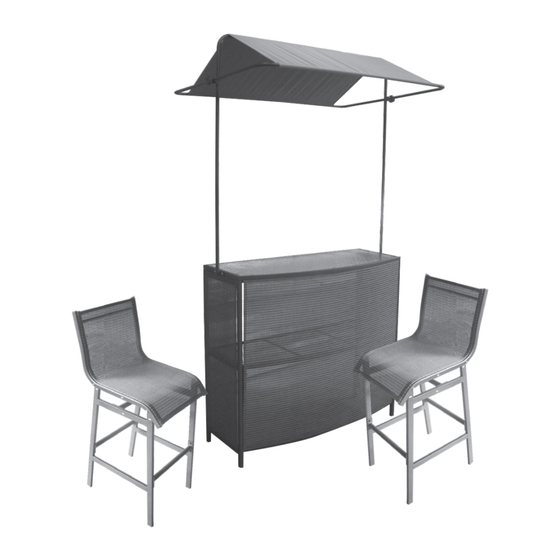

- Page 1 MODEL: 12504050 3 PIECE BAR SET...
- Page 2 PARTS LIST AND HARDWARE HARDWARE LIST TABLE FRAME 1 PC SIDE PANEL 2 PCS WEB SHELF 1 PC FRONT PANEL 1 PC CANOPY POLE 2 PCS CANOPY SIDE FRAME 2 PCS CANOPY MAIN FRAME 2 PCS CANOPY ROOF FRAME 1 PC GLASS TABLE TOP 1 PC CANOPY...
- Page 3 ASSEMBLY INSTRUCTIONS PRECAUTIONS: 1. THE CARTON CONTAINS GLASS TABLE TOP. PLEASE UNPACK THE CARTON CAREFULLY. 2. IT IS RECOMMENDED TO HAVE 2 PEOPLE FOR ASSEMBLY. 3. PLEASE CHECK THE PARTS AND HARDWARE CAREFULLY TO MAKE SURE THERE ARE NO MISSING PARTS. ASSEMBLY FOR BAR TABLE STEP 1 CONNECT THE TABLE...
- Page 4 STEP 3 POSITION THE FRONT PANEL (D) TO BOTH SIDE PANELS (B) WITH MEDIUM BOLT (Q) GET THE MEDIUM BOLT (Q) THROUGHT THE STEEL BAR, THEN CONNECT THE STEEL BAR TO THE TABLE FRAME (A). SEE FIG. 3 FIG. 3...
- Page 5 STEP 4 PLACE THE GLASS TABLE TOP (I) INTO THE TABLE FRAME (A). THEN CONNECT THE CANOPY POLE (E) TO TABLE FRAME (A) WITH SHORT BOLT (R). JOIN CANOPY ROOF FRAME (H) TO CANOPY POLE (E). SEE FIG. 4 FIG. 4...
- Page 6 STEP 5 ASSEMBLE THE CANOPY AS SHOWN BELOW. FIG. 5 STEP 6 PLACE THE CANOPY ON TOP OF THE TABLE. TIGHTEN ALL THE BOLTS. PLACE THE PLASTIC CAP (S) ONTO THE BOLTS. TIGHTEN THIS KNOB TO ADJUST THE CANOPY TO THE DESIRED ANGLE.
- Page 7 ASSEMBLY FOR BAR CHAIR STEP 1 CONNECT CHAIR UPPER TUBE (M) AND CHAIR BOTTOM TUBE (N) TO CHAIR LEG (L) WITH SHORT BOLT (R). FIG. 1...
- Page 8 STEP 2 PLACE CHAIR SEAT (K) INTO POSITION WITH MEDIUM BOLT (Q). MAKE SURE TO ATTACH IT AS PER THE FRONT AND REAR MARKING, SHOWN ON THE CHAIR LEG (L). PLACE ALL PLASTIC CAP (S) ONTO ALL BOLTS. THE ASSEMBLY OF THE BAR CHAIR IS FINISHED.
