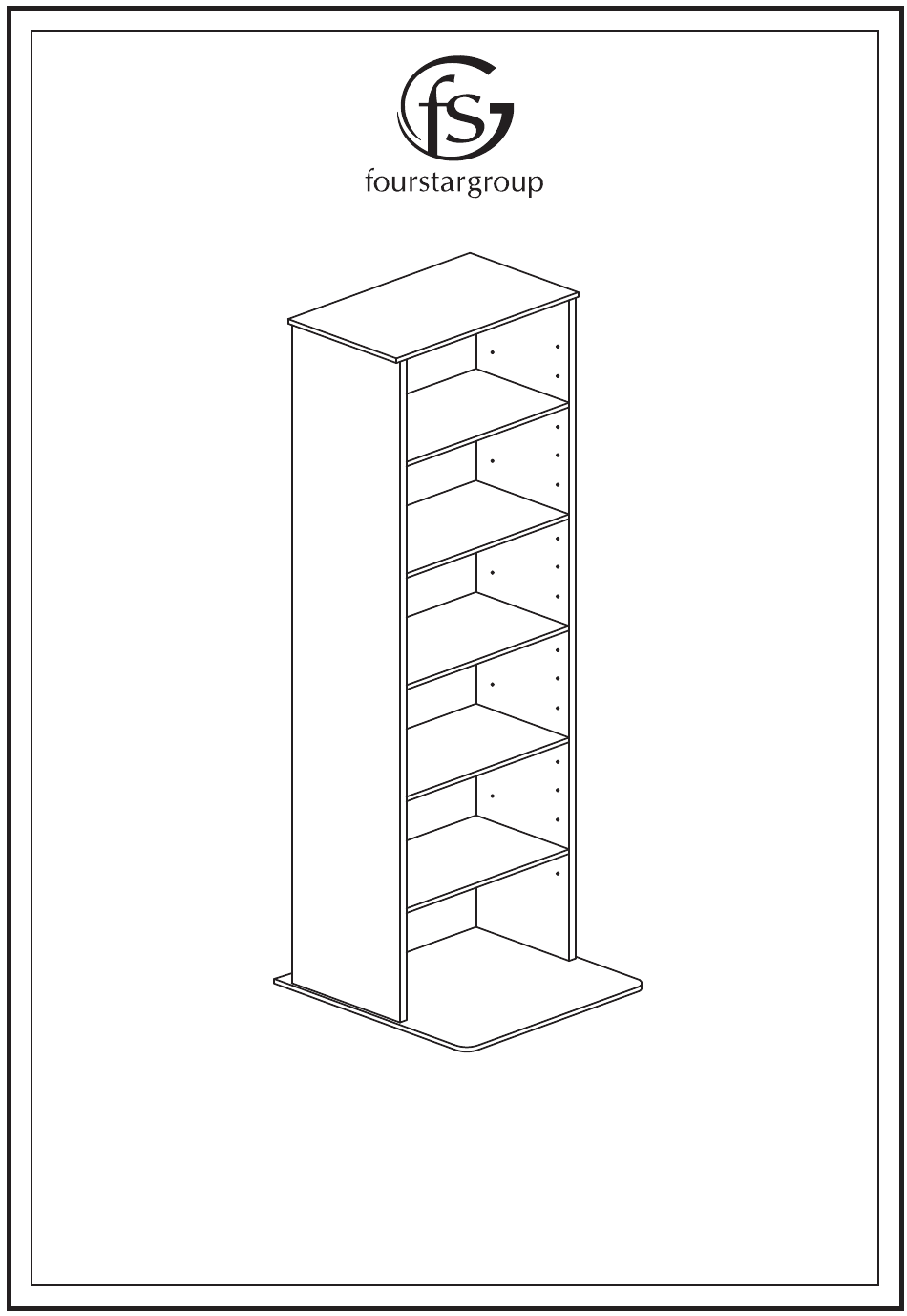

- Page 1 MODEL: 11209738V 6 TIER STORAGE TOWER...
- Page 2 PARTS AND HARDWARE LONG SCREW (4 PCS) LEG WITH PLUG (4 PCS) SHELF SUPPORT (20 PCS) WOODEN DOWEL (4 PCS) POWER PIN (15 PCS) WHITE GLUE (1 PC) P1 TOP PANEL (1 PC) P2 L&R SIDE PANEL (2 PCS) P3 BOTTOM PANEL (1 PC) P4 SHELF PANEL (5 PCS) P5 BACK PANEL (1 PC)
- Page 3 BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION : 1. ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 ATTACH BOTH SIDE PANELS (P2) TO BOTTOM PANEL (P3) USING LONG SCREWS (A), AS SHOWN. A LONG SCREW - 4 PCS...
- Page 5 STEP 2 ATTACH TOP PANEL (P1) TO ASSEMBLED STEP 1 USING WOOD DOWEL (D) AND GLUE ( F), AS SHOWN. INSERT SHELF SUPPORT (C) INTO BOTH SIDE PANELS (P2) HOLES, AS SHOWN. C SHELF SUPPORT - 20 PCS D WOODEN DOWEL - 4 PCS F WHITE GLUE - 1 PC...
- Page 6 STEP 3 ATTACH BACK PANEL (P5) AND LEGS WITH PLUG (B) TO ASSEMBLED STEP 2 USING POWER PINS (E), AS SHOWN BELOW. B LEG WITH PLUG - 4 PCS E POWER PIN - 15 PCS...
- Page 7 STEP 4 SLIDE SHELF PANELS (P4) TO ASSEMBLED STEP 3 ONTO INSERTED SHELF SUPPORTS (C), AS SHOWN.
- Page 8 Shelf weight limit 21 lbs. This unit is intended for use only with the products and maximum weights indicated. Use Shelf weight with other products or products heavier than the limit 21 lbs. maximum weights indicated may result in instability causing possible injury. Furniture can tip over or break if improperly moved.
