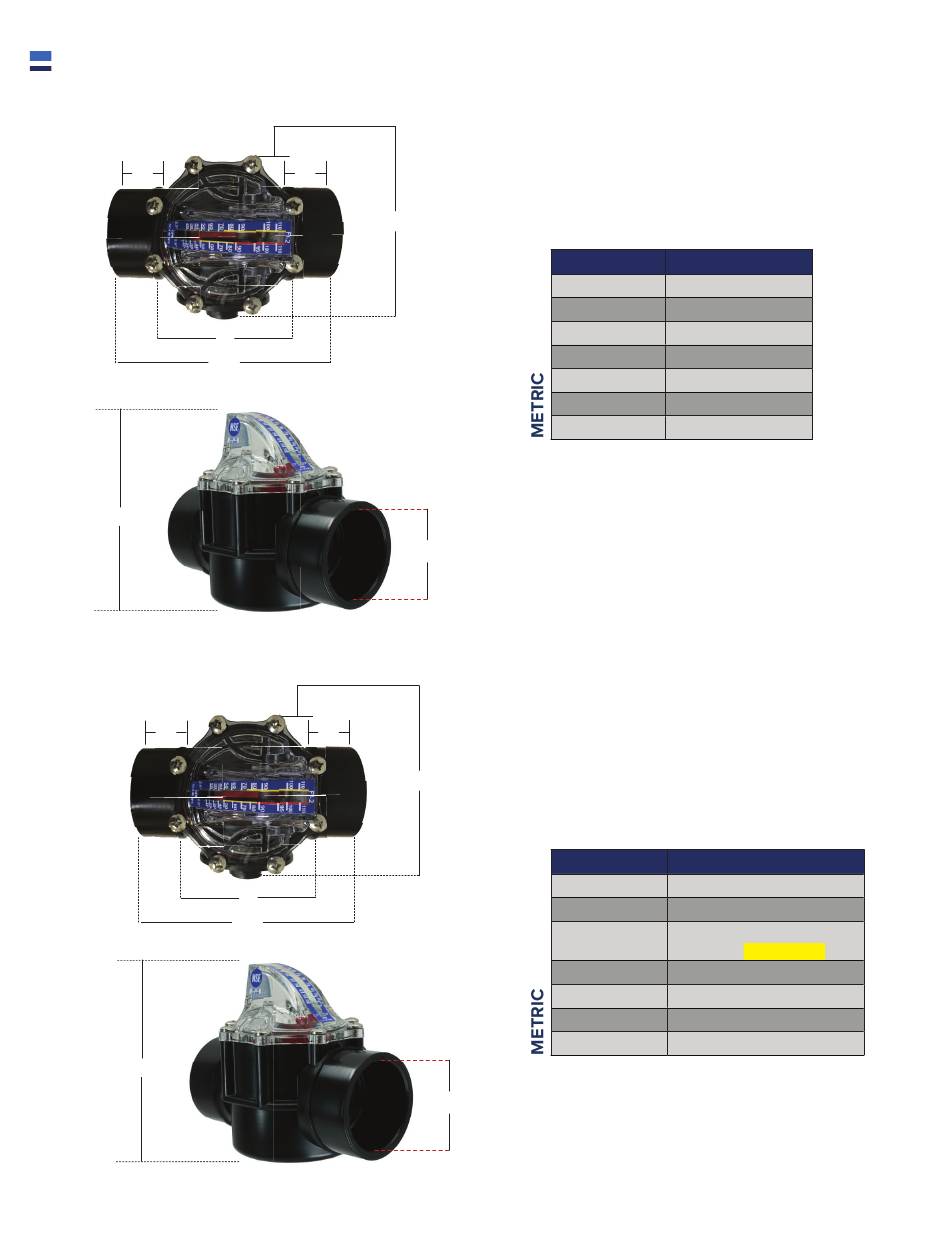

DIMENSIONS

D
F
A
B
D
F
A
B
D
E
C
D
E
C
www.h2fl oweurope.com � Tel: (+34) 609 31 52 82
Models: AF-DN40
Refence
Dimension
A
165.1 mm
B
149.23 mm
C
Schedule 40 - DN40
D
34.93 mm
E
117.6 mm
F
92.25 mm
WEIGHT
0.544 kg
Models: AF-DN50/65
Reference
A
B
Schedule 40 - DN50 (Slip) /
C
DN65 (with coupling)
D
E
F
WEIGHT
Dimension
165.1 mm
149.23 mm
34.93 mm
117.6 mm
92.25 mm
0.544 kg
