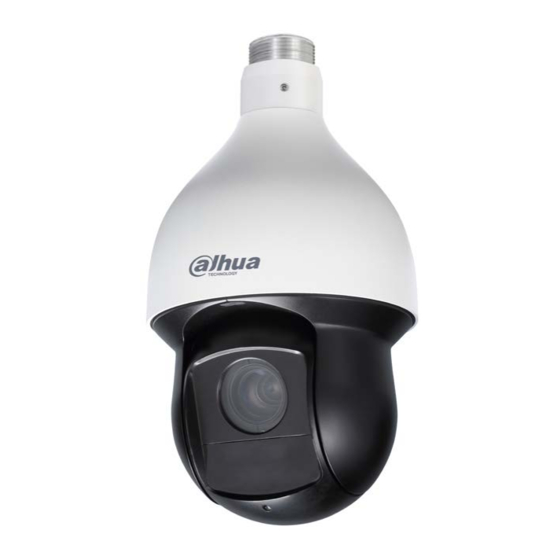

2 MP Network PTZ Camera
59230UNI
Quick Start Guide
Version 001.002
Dahua Technology USA Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 59230UNI and is the answer not in the manual?

Questions and answers

Related Manuals for Dahua 59230UNI

Summary of Contents for Dahua 59230UNI

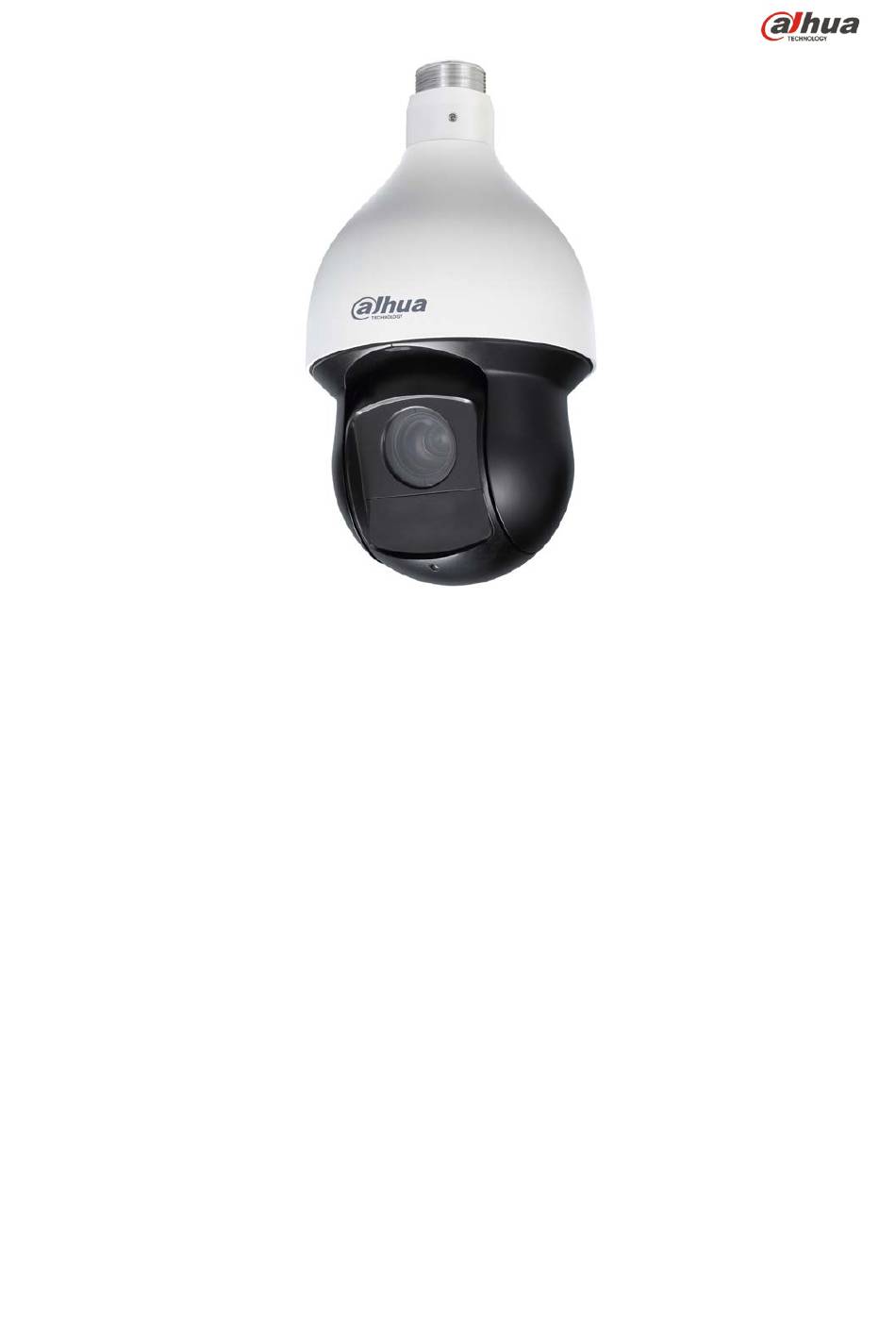

  • Page 1 2 MP Network PTZ Camera 59230UNI Quick Start Guide Version 001.002 Dahua Technology USA Inc.

  • Page 2: Table Of Contents

    Table of Contents Welcome........................1 Important Safeguards and Warnings ..............1 Electrical safety ....................1 Environmental Precautions ................2 Operation and Daily Maintenance ..............3 Lifting Appliance Requirement ................3 Warnings ......................3 FCC Information ....................4 FCC compliance： .................... 4 Legal Notices ....................

  • Page 3: Welcome

    This manual offers reference material and general information about the basic operation, maintenance, and troubleshooting of the Dahua Network PTZ Camera. Read, follow, and retain the following safety instructions. Heed all warning on the unit and in the operating instructions before operating the unit.

  • Page 4: Environmental Precautions

    Ensure a service technician uses replacement parts specified by the manufacturer, or that have the same characteristics as the original parts. Unauthorized parts may cause fire, electrical shock, or other hazards. Dahua is not liable for any damage or harm caused by unauthorized modifications or repairs.

  • Page 5: Operation And Daily Maintenance

    • Dahua recommends the use of a thunder-proof device in concert with the unit. • Do not touch the CCD or the CMOS optic sensor. Use a blower to clean dust or dirt on the lens surface.

  • Page 6: Fcc Information

    1.3 Legal Notices Copyright This user guide is ©2017, Dahua Technology Company, LTD. This user guide is the intellectual property of Dahua Technology Company, LTD and is protected by copyright. All rights reserved. Trademarks All hardware and software product names used in this document are likely to be registered...

  • Page 7: Disclaimer

    • Video loss is inherent to all digital surveillance and recording devices; therefore Dahua cannot be held liable for any damage that results from missing video information. To minimize the occurrence of lost digital information, Dahua recommends multiple, redundant recording systems, and adoption of backup procedure for all data.

  • Page 8: Unpacking

    2 Unpacking This equipment should be unpacked and handled with care. If an item appears to have sustained damage during shipping, notify the shipper immediately. Verify that all the parts listed below are included. If an item is missing, contact customer support or your local representative.

  • Page 9: Installation And Configuration

    3 Installation and Configuration 3.1 Framework and Dimensions The following figures show the dimensions of the device in mm (in.). These images are intended as a reference only. Figure 3-1: Dimensions for 59230IC 3.2 Wiring The dome camera includes the following wiring bundles: Wire Color Connection Power...

  • Page 10: Alarm Setup

    3.3 Alarm Setup Certain devices support alarm inputs and outputs, check your specific device for alarm capability. Alarm Input Refer to Figure 3-3 for alarm input configuration. The device collects that status of the alarm input port when the input signal is idle or grounded. If the input signal is connected to the 3.3 V or it is idle then the device receives the alarm input signal.

  • Page 11: Alarm Output - Switch Application

    Certain cameras include a SDHC card slot for onboard storage that support a 128 GB Micro SD card. Dahua recommends using a SanDisk Extreme Micro SD card (or an equivalent substitute) as these cards have been fully tested without issue and the SanDisk Extreme line is better suited for constant recording.

  • Page 12: Device Installation

    A readily accessible 2-pole disconnect device with a contact separation of at least 3 mm must be incorporated. Note: Dahua recommends attaching a “drip loop” (flex or hard conduit) during installation to ensure condensation does not form in the mount or the conduit.

  • Page 13: Preparing The Camera

    4.1 Preparing the Camera The Network PTZ camera comes with the PFB300S Wall Mount and the PFA110 Mount Adapter, the installer must supply the following hardware: • Four (4) bolts, washers or other fastening hardware to secure the wall mount to the installation medium.

  • Page 14: Insert A Micro Sd Card

    4.2 Insert a Micro SD Card The Micro SD card slot is located on the actual camera module. Figure 4-2 1. Loosen the four (4) screws from the rear panel on the back of the dome. Remove the panel. 2. Unscrew the three (3) screws from the top of the camera module housing. 3.
  • Page 15 6. Screw the PFA110 Mount Adapter block into the internal thread of the wall mount bracket until secure. Tighten the set screw on the wall mount to secure the mount adapter. Figure 4-3 7. Use the four (4) hex screws and flat washers to secure the wall mount bracket to the wall. Figure 4-4 8.
  • Page 16 9. Line up the hook at the top of the dome enclosure with the inside hole of the adapter block and then push it to the end. Then, tighten the three M6 screws on the adapter block firmly. Note: Ensure the M6 screws are tightly fixed to secure the dome to the wall mount. Figure 4-5 10.

  • Page 17: Network Configuration

    5 Network Configuration Dahua IP cameras feature a built-in Web interface to control all aspects of camera operation. This section includes details about the supported network protocols, configuring IP addresses, and configuring alarms and local recording options. Refer to the camera’s Operations Manual for full details.

  • Page 18: Modifying The Ip Address

    Port – A port is an endpoint to a logical connection in an IP network. Dahua supplies the ConfigTool to access and to modify the network settings of a device. Refer to the Operation Manual, available on the CD included with the camera or on Dahuasecurity.com, for complete information.

  • Page 19: Accessing The Web Interface

    5. Click the Net icon at the top of the ConfigTool. 6. Modify the IP Address and any other applicable network parameter. 7. Click Save to finish modification and store the modified network parameters. Figure 5-2 5.4 Accessing the Web Interface Each camera can be accessed directly from the Internet Explorer Web browser.

  • Page 20: Configuring Alarms

    5.5 Configuring Alarms The device’s Web Interface offers a Relay Activation page to configure alarms and to set alarm responses. Figure 5-4 1. Access the Web Interface for the device and click the Setup tab. Expand the Event menu, then choose the Alarm page.
  • Page 21 2. Select the recording medium for each event Recorded and Snapshot event, Scheduled, Motion Detect and Alarm. Select the Local check box to record an event to the Micro SD card. 3. Click the Local tab to view the used capacity and the total capacity of the Micro SD card. Figure 5-6 4.
  • Page 22 8. Check the Send Email box to send an email to a specified user after the device triggers an alarm. 9. Set the capacity limit for the Micro SD Card (available with the Capacity Warning event type). The device triggers an alarm once the amount of data on the card surpasses this limit. Figure 5-8...
  • Page 23 Dahua Technology USA Inc. 23 Hubble, Irvine, CA 92618 Tel: (949) 679-7777 Fax: (949) 679-5760 Email: sales.usa@global.dahuatech.com Rev 001.002 © 2017 Dahua. All rights reserved. Design and specifications are subject to change without notice.
