TABLE OF CONTENTS
Introduction
1. Important Safety Instructions................................................................................
2. Assembling Your Treadmill....................................................................................
Installation Requirements.....................................................................................
List of Parts...........................................................................................................
3. Treadmill Assembly...............................................................................................
Step by Step Instructions......................................................................................
4. Connect To Power.................................................................................................
5. TR21F Electronic Display.....................................................................................
Electronics Display Layout...................................................................................
Display Features..................................................................................................
Display Controls...................................................................................................
Safety Key............................................................................................................
6. How To Use Your TR21F Treadmill.......................................................................
Quick Start and Touch-N-Go QuickStart Programs..............................................
User Selection......................................................................................................
Workout Setup......................................................................................................
Programs..............................................................................................................
User Parameter settings......................................................................................
7. Guideline For Exercise.........................................................................................
8. Adjust The Running Belt.......................................................................................
9. Belt Adjustment Procedure...................................................................................
10. Folding And Unfolding The Treadmill..................................................................
11. Floor Level Adjustment.......................................................................................
12. Trouble Shooting................................................................................................
Error Messages..................................................................................................
Incline Fuse Failure............................................................................................
13. Main Fuse Failure...............................................................................................
14. Wiring Schematic...............................................................................................
1
4
4
4
6
6
10
11
11
12
13
15
16
16
16
17
18
20
21
22
23
25
26
27
27
27
28
29
Advertisement
Table of Contents
Related Manuals for SportsArt Fitness TR21F
Summary of Contents for SportsArt Fitness TR21F
-
Page 1: Table Of Contents
4. Connect To Power....................5. TR21F Electronic Display..................Electronics Display Layout................... Display Features....................Display Controls....................Safety Key......................6. How To Use Your TR21F Treadmill............... Quick Start and Touch-N-Go QuickStart Programs..........User Selection...................... Workout Setup...................... Programs......................User Parameter settings..................7. Guideline For Exercise.................. -
Page 2: Important Safety Instructions
Your SportsArt treadmill was designed and built for optimum safety. However, certain precautions apply whenever you use your treadmill. Please read the entire manual before assembly and operation. Also, please note and save the following safety instructions: IMPORTANT SAFETY INSTRUCTIONS DANGER - To reduce the risk of electric shock: Improper connection of the equipment-grounding connector can result in a risk of... - Page 3 11) The weight limit for this treadmill is 275 Ibs (125 kg). 12) Do not operate where aerosol (spray) products are being used or where oxygen is being administered. 13) To disconnect, turn all controls to the off position, then remove plug from outlet. 14) Assemble and operate the treadmill on a solid, level surface.

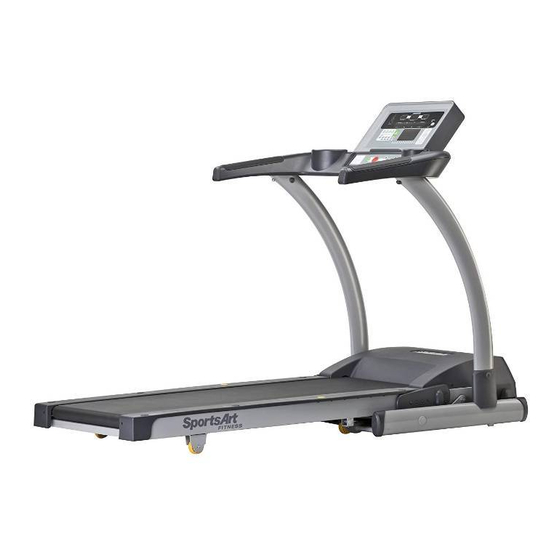

- Page 4 Congratulations on purchasing one of the finest piece of exercise equipment on the market today, the SportsArt TR21F treadmill. The TR21F is designed with the end user in mind and constructed of high quality materials and designed for years of trouble-free use.
-
Page 5: Assembling Your Treadmill
ASSEMBLING YOUR TREADMILL Installation Requirements Thank you for purchasing a SportsArt Fitness product. For proper installation please read and follow the instructions. If the treadmill is not assembled properly, you could void the SportsArt Fitness Limited Warranty. If there are any parts or tools that are missing please contact your dealer immediately. - Page 7 Wire, Display to Drive Board, TR21F TR33-88 Pivot Frame TR21-75 Hub Board, TR21F TR21-06 Screw Hole Cap, Small TR21-76 Wire, Optic Sensor to Drive Board, TR21F 3100-53 Leveler TR21-77 Optic Sensor, TR21F 3007-28 Cap, Clip Style TR21-78 Optic Sensor Bracket, TR21F...
- Page 8 Please see the part illustrations below Display Left Pedestal Handle Right Pedestal...
-
Page 9: Treadmill Assembly
TREADMILL ASSEMBLY Step by Step Instructions The important spare parts are placed into the grid of styrofoam. When you remove the treadmill from its box, first check to make sure all of parts are present before you discard the styrofoam. Thoroughly read the assembly instructions before you begin. 1. - Page 10 3. Release the data cable. Screws are attached to the support bracket. Please remove these screws before you assemble the pedestals. Feed the data cable through the right pedestal, then insert the right pedestal into the support bracket. Also insert the left pedestal into the support bracket on the left side of the treadmill. Fig.3 4.
- Page 11 5. Connect the upper data cable, insert the handle onto both the left and right pedestals. Please be carefully the data cable should be fully into the tubing, can't be pressed by pedestals. Fig.5 6. Use the Allen wrench (M6) to loosely secure the upper fasteners on the pedestals. Do NOT tighten firmly.
- Page 12 7. Tighten the lower fasteners, then the upper fasteners. Finally push down each upright post cover until the screw cap fits onto the screw head. curved cap flat cap Fig.7 8. Please connect two data cables, as shown in figure A, before you assemble the display.
-
Page 13: Connect To Power
9 Carefully place the display onto the handle. Tighten the four screws to secure the display. Fig.9 CONNECT TO POWER Connect the power cable as the figure shows, and secure it in place by tightening the screws. Fig.10... -
Page 14: Tr21F Electronic Display
TR21F ELECTRONIC DISPLAY: A. Electronics Display Layout: Information Window Current HR Window ActivZone Programs Dot Matrix Display Numeric Keypad To Start Instruction... -
Page 15: Display Features
B. Display Features: 1. Personal CardioAdvisor Personal CardioAdvisor is a heart rate training tool that requires your age input to calculate you high and low optimun HR training zone. The center display shows current HR when wearing a chest strap or contact HR. 2. -
Page 16: Display Controls
C. Display Controls: 1. START: Press the START button to begin programming. 2. QUICKSTART: Quickstart will bypass Age, Weight inputs and Program selection. Time and distance will count up. 3. ENTER: To confirm the data inputted. 4. INTERVAL: Select specific work and rest periods as well control time, incline and speed per period. - Page 17 Pressing and holding the stop button will reset the electronics to the banner display of SPORTSART - TR21F. 17. CHANGE / SCAN: Swap the display information during workout by pressing Change button. The upper led lights up for Calories, Speed, Time and Distance.
-
Page 18: Safety Key
D. Safety Key: The safety key feature is required to be in place for the treadmill to operate. This safety device is intented to provide the user a safe mechanism to stop the treadmill should a user stumble and fall. The electonics will prompt with the message - SAFETY KEY, to remind the user to replace the safety key in its proper place. -
Page 19: How To Use Your Tr21F Treadmill
HOW TO USE YOUR TR21F TREADMILL: Your SportsArt Fitness treadmill has many outstanding and beneficial electronic features that can simplify the programming interface. By thoroughly understanding the electronics you can significantly improve your workout experience. 1. QUICK START and Touch-N-Go QuickStart Programs: A. -
Page 20: Workout Setup
2. Press INCLINE and INCLINE or press one of digital keys 1~4 to select ▲ ▼ USER, press ENTER. B. Set your personal ID: This feature allows you to personalize the User ID number. You can enter up to 11 characters. 1. -
Page 21: Programs
B. SELECT PROGRAM: Select PROGRAM, press ENTER. After Pressing ENTER you will select TIME or DISTANCE. Time is represented by number 1 and Distance is represented by number 2. Select 1 or 2 then input the desired time or distance by pressing INCLINE UP/DN or using the numeric keypad. - Page 22 D. RANDOM: Random program has an infinite number of programs. Continue to press the button until you find a course to your liking. E. INTERVAL: This program (depending on which model) offers multiple programs. The default setting for the program 1:1 is 1 minute of Rest with 2% incline and 1 minute of Work with 4% incline.
-
Page 23: User Parameter Settings
5. User Parameter settings: User parameters determine basic operating features. To change these parameters, please follow up the instructions below. A. When the banner SPORTSART TR21F is displayed, hold the CHANGE button for 3 seconds. Press INCLINE to select US standard(UNIT-MPH) or Metric ▲... -
Page 24: Guideline For Exercise
GUIDELINES FOR EXERCISE How hard should I exercise? Studies show that to achieve the benefits of aerobic exercise, it is necessary to work within your training zone. Your training zone depends on your age and level of fitness. The above chart indicates the recommended Heart Rate training zones (darkened area of the chart). -
Page 25: Adjust The Running Belt
ADJUST THE RUNNING BELT The belt is properly aligned at the factory. However, the belt may move off the center during shipping and handling or by use on an uneven surface. Therefore, it is important that you check the belt's alignment before using the treadmill. The correct alignment of the running belt is critical for the smooth operation of the treadmill. -
Page 26: Belt Adjustment Procedure
BELT ADJUSTMENT PROCEDURE 1. Turn on the power switch located at the front of the treadmill. Place the safety key in its position. 2. Press the SPEED button to increase the speed to 2.0mph/3.2kph. Determine ▲ belt placement in relation to landing strips on both sides of the treadmill. Make sure the edge of the walk belt is aligned and parallel to the edge of the landing strip. - Page 27 Periodically monitor the position of the belt to ensure peak performance: When you are using the treadmill, if you feel a pause in the belt with each foot plant, the belt may be too loose. Stop the machine to check the belt tension, pull the running belt up in the middle (see Fig.12-1 &...
-
Page 28: Folding And Unfolding The Treadmill
FOLDING AND UNFOLDING THE TREADMILL Make sure the treadmill has come to a complete stop and the incline display shows "0" before folding. Fig.13 1. Tilt up the walk deck. Tighten the knob by turning it clockwise as shown in figure A. Note: The locking feature is essential to the safety of people and pets. -
Page 29: Floor Level Adjustment
FLOOR LEVEL ADJUSTMENT Fold the treadmill as shown. Turn the floor levelers a1, a2, b1, b2 so that all four adjustments are even and the treadmill stands level on the floor. Fig.14 Unfold the treadmill completely. Apply some pressure to sides A and B as shown in the diagram below. -
Page 30: Trouble Shooting
TROUBLE SHOOTING Caution: Shut off the unit and disconnect power cord before making any repairs or modifications. Error messages: 1. Error Message: A. ERR1: Speed sensor circuit error. Contact your local dealer or service provider. B. ERR3: Actual speed is greater than the setting speed. Re-start the unit. C. -
Page 31: Main Fuse Failure
MAIN FUSE FAILURE If the display remains dark after turning on the treadmill, the fuse may be damaged and need to be replaced. MAKE SURE THE TREADMILL POWER PLUG IS REMOVED FROM CAUTION: THE POWER OUTLET BEFORE REPLACING THE FUSE. The main power fuse is located near the on/off switch (see Fig.16 ). -
Page 32: Wiring Schematic
Wiring Schematic: T R21 F Your Authorized Distributor...
