WAGNER GM 1-350 Original Service Manual

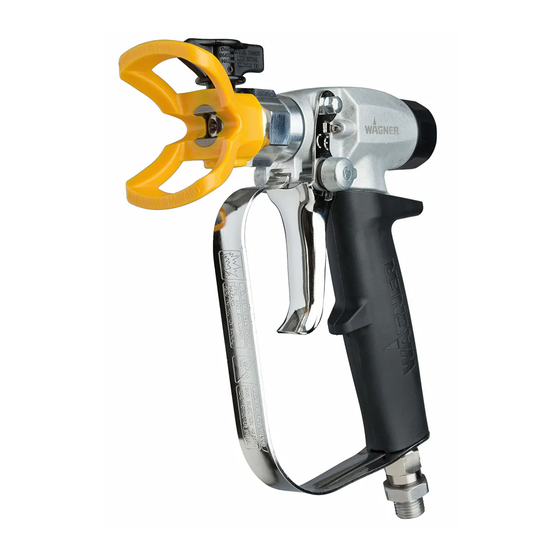

Airless manual gun
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Original Service Manual
Version 02/2015
Airless manual gun
B_5040

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM 1-350 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WAGNER GM 1-350

Summary of Contents for WAGNER GM 1-350

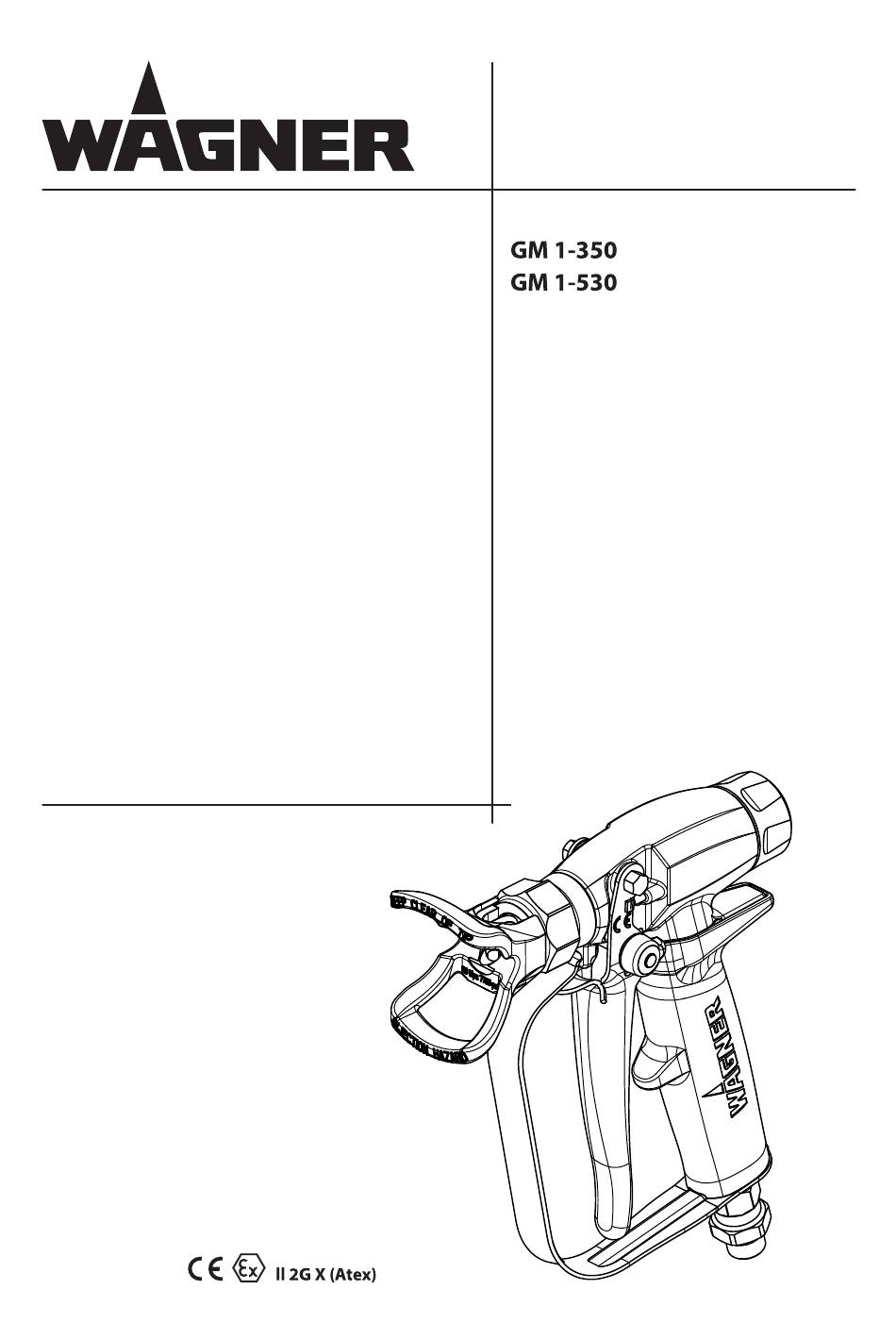

  • Page 1 Original Service Manual Version 02/2015 Airless manual gun B_5040...

  • Page 2: Table Of Contents

    Replacing the Valve Rod 2.4.1 Disassembling 2.4.2 Assembly Replacing the Filter Tube 2.5.1 Required Tools and Aids 2.5.2 Required Spare Parts 2.5.3 Safety Instructions 2.5.4 Disassembly/Assembly FUNCTIONAL CHECK AFTER REPAIR SPARE PARTS How Can Spare Parts Be Ordered? Spare Parts List GM 1-350/530...

  • Page 3: About These Instructions

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL ABOUT THESE INSTRUCTIONS PREFACE This service manual contains information on the maintenance and repair of the devices. This device can be hazardous if it is not operated in accordance with the information provided in this service manual and the relevant operating manual.

  • Page 4: Languages

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL LANGUAGES The service manual is available in the following languages: Language: Order No. Language: Order No. German 2355505 English 2355506 The operating manual is available in the following languages: Language: Order No.

  • Page 5: Repair Work

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL REPAIR WORK GENERAL NOTICES The following points must be noted for every repair carried out on the device: • Observe the safety instructions in Chapter 4 of the associated operating manual (see Chapter 1).

  • Page 6: Safety Instructions

    In accordance with the guideline for liquid ejection devices (ZH  1/406 and BGR  500 Part 2 Chapter 2.29 and Chapter 2.36): - The liquid ejection devices should be checked by an expert (e.g. Wagner service technician) for their safe working conditions as required and at least every 12 months.

  • Page 7: Replacing The Valve Rod

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL REPLACING THE VALVE ROD 2.4.1 DISASSEMBLING 1. Flush and clean the spray gun as described in Chapter 8.1.3. 2. Relieve the pressure on the spray gun and product pressure generator in accordance with Chapter 7.3.2.

  • Page 8: Assembly

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL 2.4.2 ASSEMBLY The valve rod (D) is screwed into the gun housing using the pressure plate (C). Here, ensure that the pressure plate with the recess is pushed completely onto the valve rod's wrench size (drive coupler) in order to transfer the torque (see Detail 1).

  • Page 9: Replacing The Filter Tube

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL REPLACING THE FILTER TUBE 2.5.1 REQUIRED TOOLS AND AIDS The following tools and aids are required for carrying out the repair work on the spray gun described below: Description - Allen wrench SW 6...

  • Page 10: Safety Instructions

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL 2.5.3 SAFETY INSTRUCTIONS WARNING Incompatibility of cleaning agent and working medium! Risk of explosion and danger of poisoning by toxic gases Examine the compatibility of the cleaning agents and working media on the basis of the safety data sheets.
  • Page 11 GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL 16 Nm ; 11.8 lbft Loctite 648 B_5055...

  • Page 12: Functional Check After Repair

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL FUNCTIONAL CHECK AFTER REPAIR After all repairs, the gun must be checked for safe condition before recommissioning. The necessary scope of inspection and testing depends on the repair carried out and must be documented by the repair staff .

  • Page 13: Spare Parts

    DANGER Incorrect maintenance/repair! Danger to life and equipment damage. Only a WAGNER service center or a suitably trained person may carry out repairs and replace parts. Only repair and replace parts that are listed in the Chapter "Spare parts" and that are assigned to the unit.

  • Page 14: Spare Parts List Gm 1-350/530

    GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL SPARE PARTS LIST GM 1-350/530 3 Nm; 2.2 lbft 70 Nm; 51.6 lbft 16 Nm ; 11.8 lbft B_5046...
  • Page 15 GM 1-350/530 VERSION 02/2015 ORDER NUMBER DOC2355506 SERVICE MANUAL Spare parts list GM 1 35 MPa 53 MPa Designation Order No. Order No. 2347536 2346856 2346614 2346614 Handle 2353559 2353559 Filter housing with guard bracket 2353599 Trigger guard 4F, complete...
  • Page 16 Order No. 2355506 Edition 02/2015 Germany Phone Telefax E-mail Switzerland Phone Telefax More contact addresses on the internet at: Company/Locations/WAGNER worldwide Subject to changes without notice...

This manual is also suitable for:

Gm 1-530
