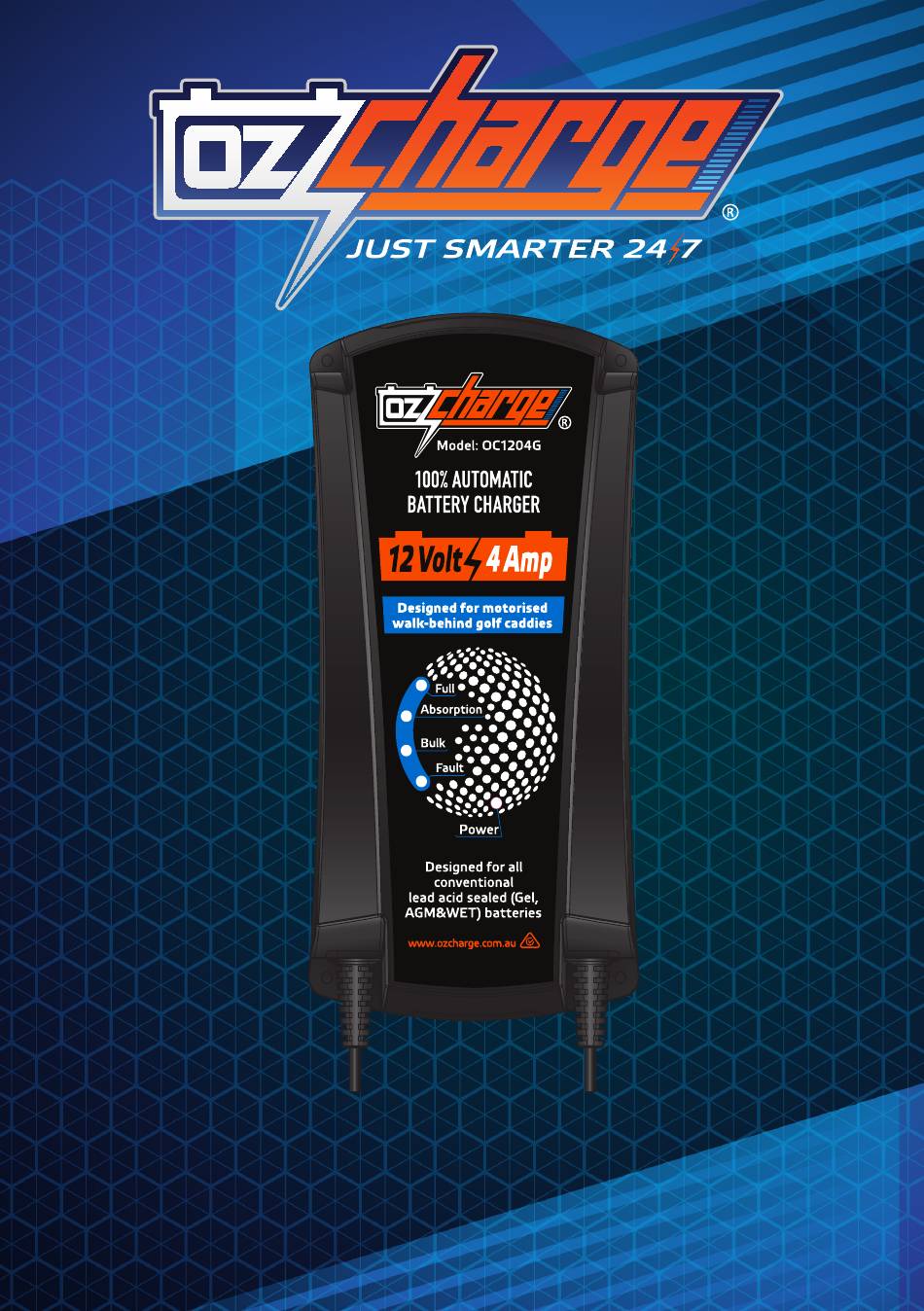

- Page 1 Model: OC1206U / OC1212U Model: OC1204G OWNER’S MANUAL OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
-
Page 2: Important Safety Advice And Warnings
Congratulations on purchasing an Oz Charge fully automatic switched mode 12 Volt battery charger, maintainer and rejuvenator. Please take the time to carefully read and understand this manual before using this product. IMPORTANT SAFETY ADVICE AND WARNINGS The charger is designed to charge and maintain 12V conventional lead-acid batteries only. -
Page 3: Main Features
Short circuit and reverse polarity protection. • • ECO Mode: Ultra low power consumption. 2 • Oz Charge manual www.ozcharge.com.au... -
Page 4: Temperature & Safety Protection
ECO MODE: This Oz Charge battery charger has a built in ultra low power consumption • circuit. If AC power is connected and the battery is disconnected, after 10 seconds the charger will automatically go into an ECO mode. -
Page 5: Electrical Parts & Accessories
Float Voltage 13.6V Start Voltage Operating Temperature -15 to 50° C Storage Temperature -25 to 85°C Operating Humidity 90% RH Max. Size (L*W*H) 182mm x 88mm x 48mm Weight 0.75kg Approvals CE, UL/cUL, AS/NZS, EMC 4 • Oz Charge manual www.ozcharge.com.au... -
Page 6: Charging Instructions
STEP 3 - Connecting the battery charger to Mains Power (100-240VAC) • The Charger will automatically start when AC power is connected and switched ON. (Note: If the Fault Indicator LED illuminates Red, please check your connections.) PP30 Connector 5 • Oz Charge manual www.ozcharge.com.au... -
Page 7: The Charging Process
8) Float Mode - Full Green LED ON This stage allows you to keep the charger connected 24/7 to ensure your battery is well maintained and kept 100% fully charged. Float mode will maintain the battery at a constant 13.6V. 6 • Oz Charge manual www.ozcharge.com.au... - Page 8 LED also flashing fast / Bulk charging timed out if Blue Bulk LED also ON Power LED Green Unit is powered on. Green Flashing Unit is in Eco Mode. Power Saving Mode. (No Battery Connected / Detected) 7 • Oz Charge manual www.ozcharge.com.au...
- Page 9 8 • Oz Charge manual www.ozcharge.com.au...
-
Page 10: Troubleshooting
- Battery is - Battery may need replacement. is Flashing defective - Battery is severely sulphated REPLACEMENT PARTS For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au. / www.ozcharge.co.nz 9 • Oz Charge manual www.ozcharge.com.au... -
Page 11: Year Product Warranty
Outside of Australia: +61 3 9482 2203 Website: www.ozcharge.com.au / www.ozcharge.co.nz If the Authorised Supplier and / or Oz Charge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion. - Page 12 SAA Approval No. GMA-102826-EA-02 OC1204G Owner’s Manual: Rev 1.0 - 07/15 - Specifications subject to change without notice.
