- Page 1 Model: OC2404M OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
-
Page 3: Important Safety Advice And Warnings

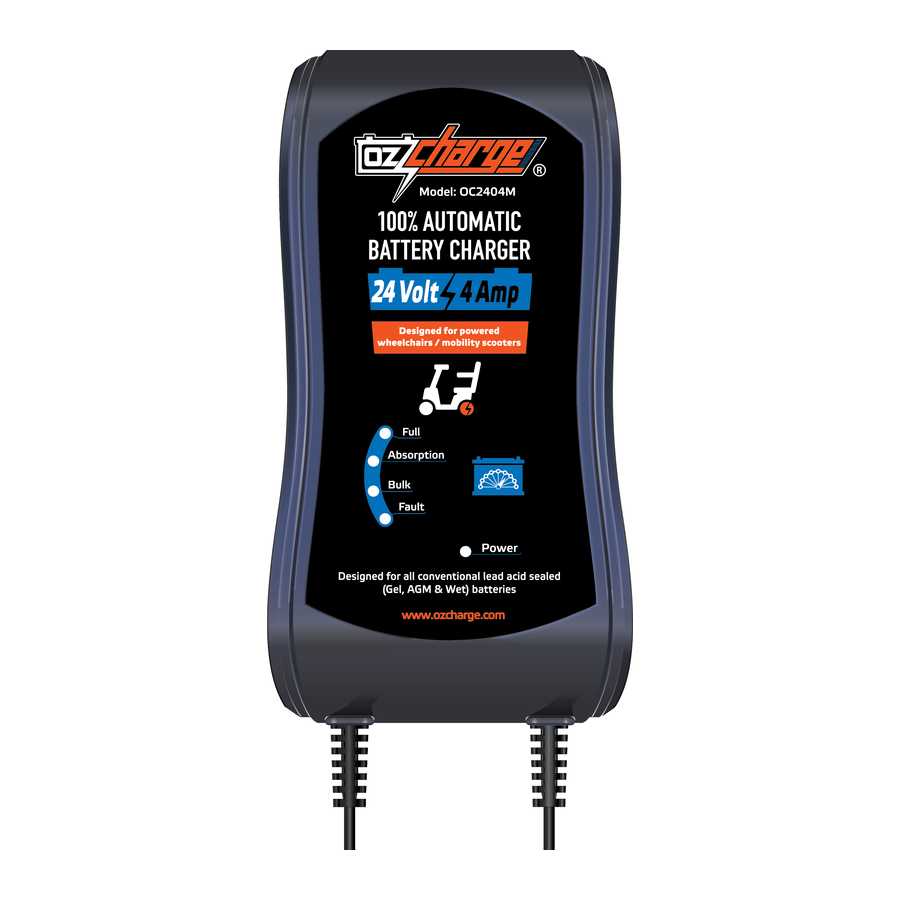

Congratulations on purchasing the Oz Charge Mobility OC2404M fully automatic switched mode 24 Volt / 4 Amp battery charger, maintainer and rejuvenator. Please take the time to carefully read and understand this manual before using this product. IMPORTANT SAFETY ADVICE AND WARNINGS •... - Page 4 The intelligent charger will monitor the battery voltage and will maintain it at peak performance with a special pulse charge during long term maintenance. • Short circuit and reverse polarity protection. • ECO Mode: Ultra low power consumption. 2 • Oz Charge manual www.ozcharge.com.au...
-
Page 5: Temperature & Safety Protection
• ECO MODE: This Oz Charge battery charger has a built in ultra low power consumption circuit. If AC power is connected and the battery is disconnected, after 10 seconds the charger will automatically go into an ECO mode. During this mode the power drawn is less than 0.36W which totals 0.01kWh per day power... -
Page 6: Electrical Parts & Accessories
Check the battery voltage, type and Ah capacity to ensure the charger is compatible. • Ensure the battery is in a well ventilated area and the charger should be as far away from the battery as the cables permit. 4 • Oz Charge manual www.ozcharge.com.au... - Page 7 Short circuit/reverse polarity or Rejuvenation failed if Bulk LED also flashing slow Flashing Over temperature protection mode / Soft start charging timed out if Blue Bulk LED also flashing fast / Bulk charging timed out if Blue Bulk LED also ON 5 • Oz Charge manual www.ozcharge.com.au...
-
Page 8: The Charging Process
8) Float Mode - Full Green LED ON This stage allows you to keep the charger connected 24/7 to ensure your battery is well maintained and kept 100% fully charged. Float mode will maintain the battery at a constant 27.2V. 6 • Oz Charge manual www.ozcharge.com.au... -
Page 9: Troubleshooting
- 24 hours Bulk Charge - Battery cannot be charged timed out and must be replaced. REPLACEMENT PARTS For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au. / www.ozcharge.co.nz 7 • Oz Charge manual www.ozcharge.com.au... - Page 10 8 • Oz Charge manual www.ozcharge.com.au...
-
Page 11: Year Product Warranty
Outside of Australia: +61 3 9482 2203 Website: www.ozcharge.com.au / www.ozcharge.co.nz If the Authorised Supplier and / or Oz Charge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion. - Page 12 SAA Approval No. GMA-102826-EA-002 OC2404M Owner’s Manual: Rev 1.0 - 5/15 - Specifications subject to change without notice.
