- Page 1 Model: PX2408M OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
-
Page 3: Important Safety Advice And Warnings

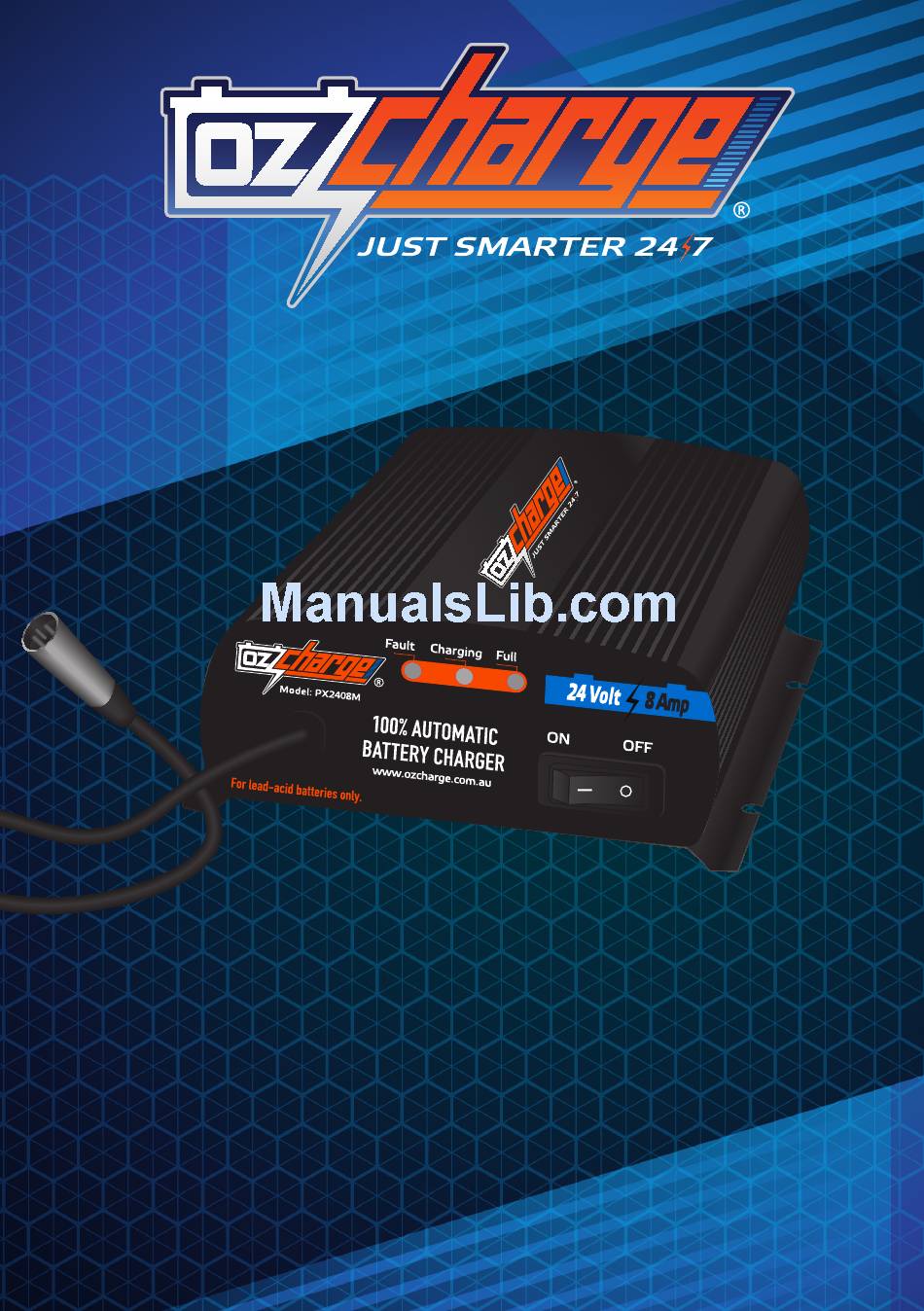

Congratulations on purchasing the Oz Charge PX2408M fully automatic switched mode 24 Volt / 8 Amp battery charger and maintainer. Please take the time to carefully read and understand this manual before using this product. IMPORTANT SAFETY ADVICE AND WARNINGS •... -
Page 4: Main Features
• Short circuit and reverse polarity protection. • The PX2408M will recharge the battery set to 80% of the rated capacity in a period not exceeding 8-hours. • IP51 rated - Drip proof as required by Australian & NZ Standards for use with wheelchairs. -
Page 5: Temperature & Safety Protection
Some batteries may be able to handle a higher charge current. Refer to the battery manufacturers specifications and recommendations for your charging requirements. Battery Capacity: Charging 5 - 85Ah Battery Capacity: Maintaining < 240Ah 3 • Oz Charge manual www.ozcharge.com.au... -
Page 6: Electrical Parts & Accessories
1. Charging status Display LED Fault - RED (refer to LED STATUS indicator TABLE on page 6). Charging Process - Orange Fully Charged - Green 2. ON/OFF Switch Main Power Switch for the Charger. 4 • Oz Charge manual www.ozcharge.com.au... -
Page 7: Charging Instructions
100% fully charged. Float mode will maintain the battery at a constant 27.4V. Note: Check electrolyte levels if possible after charging as they may need topping up with distilled water. (This does not apply to sealed maintenance free batteries) 5 • Oz Charge manual www.ozcharge.com.au... -
Page 8: Charging Curve
100% charge. charge the battery until charge until the battery receives a full charge the battery reaches reaches a set voltage. without overcharging the a set voltage. battery. 6 • Oz Charge manual www.ozcharge.com.au... -
Page 9: Troubleshooting
- 16 hours Bulk Charge - Battery cannot be charged timed out. and must be replaced. REPLACEMENT PARTS For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au. / www.ozcharge.co.nz 7 • Oz Charge manual www.ozcharge.com.au... -
Page 10: Year Product Warranty
Outside of Australia: +61 3 9482 2203 Website: www.ozcharge.com.au / www.ozcharge.co.nz If the Authorised Supplier and / or Oz Charge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion. - Page 12 SAA Approval No. 111981EA-001 PX2408M Owner’s Manual: Rev 1.2 - 12/14 - Specifications subject to change without notice.
