- Page 1 Model: OC1206U / OC1212U Models: OC1225U / OC2412U OWNER’S MANUAL OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED (INCLUDING CLAUSE 21.102 FOR VIBRATION SPECIFICALLY FOR USE IN CARAVANS AND SIMILAR VEHICLES)
-
Page 2: Important Safety Advice And Warnings

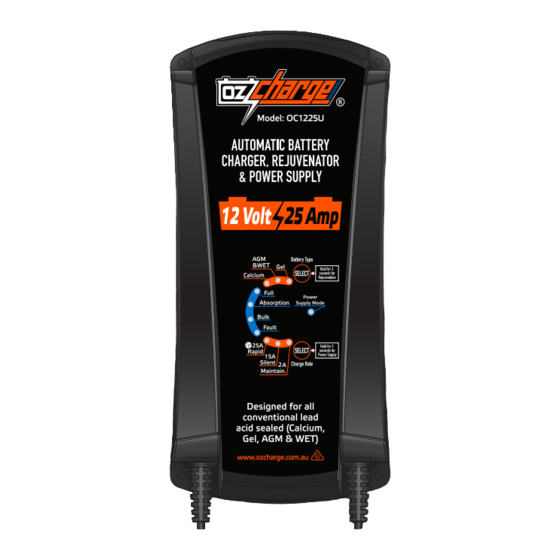

Congratulations on purchasing an Oz Charge fully automatic switched mode battery charger, power supply, maintainer and rejuvenator. Please take the time to carefully read and understand this manual before using this product. Note: This manual covers both the OC1225U and OC2412U models so please refer to the relevant specifications for your model. - Page 3 • Power Supply Mode: Press & Hold the Charge Rate button Note: Image shows OC1225U model. for 3 seconds to activate and deactivate Power Supply Mode. When in Power Supply Mode, the Pwr. Supply LED will be ON.
-
Page 4: Temperature & Safety Protection
• ECO MODE: This Oz Charge battery charger has a built in ultra low power consumption circuit. If AC power is connected and the battery is disconnected, after 10 seconds the charger will automatically go into an ECO mode. Both the selected Charge Rate and Battery Type LED’s will flash GREEN to indicate ECO mode. -
Page 5: Electrical Parts & Accessories
Battery Type and Charge Rate settings you will use. • Ensure the battery is in a well ventilated area and the charger should be as far away from the battery as the cables permit. 4 • Oz Charge manual www.ozcharge.com.au... -
Page 6: Step 2 - Connecting The Battery Charger To Your Battery
For Example do not charge a Gel Battery on the Calcium Battery Type setting as this may damage your battery and / or reduce your battery life. Note: If the Fault Indicator LED illuminates Red, please check your connections as it’s likely that the Positive and Negative Leads are reversed. 5 • Oz Charge manual www.ozcharge.com.au... -
Page 7: The Charging Process
8) Float Mode - Full Green LED ON This stage allows you to keep the charger connected 24/7 to ensure your battery is well maintained and kept 100% fully charged. Float mode will maintain the battery at a constant 13.6V (27.2V). 6 • Oz Charge manual www.ozcharge.com.au... -
Page 8: Status Description
Note: Check electrolyte levels if possible after charging as they may need topping up with distilled water. (This does not apply to sealed maintenance free batteries) LED STATUS INDICATOR TABLE: Note: Image shows OC1225U model. Status Description Battery Type LED’s... - Page 9 8 • Oz Charge manual www.ozcharge.com.au...
-
Page 10: Troubleshooting
- Output has been overloaded OPTIONAL ACCESSORIES / REPLACEMENT PARTS Model: OC-RDP - Oz Charge Remote Display to suit OC1225U/OC2412U For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au. / www.ozcharge.co.nz 9 • Oz Charge manual... -
Page 11: Year Product Warranty
Outside of Australia: +61 3 9482 2203 Website: www.ozcharge.com.au / www.ozcharge.co.nz If the Authorised Supplier and / or Oz Charge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion. - Page 12 Optional Remote Display (Model: OC-RDP) The optional remote display will suit both the OC1225U and OC2412U. For further information, please visit www.ozcharge.com.au / www.ozcharge.co.nz. SAA Approval No. GMA-102826-EA-004 OC1225U / OC2412U Owner’s Manual: Rev 1.0 - 02/16 - Specifications subject to change without notice.
