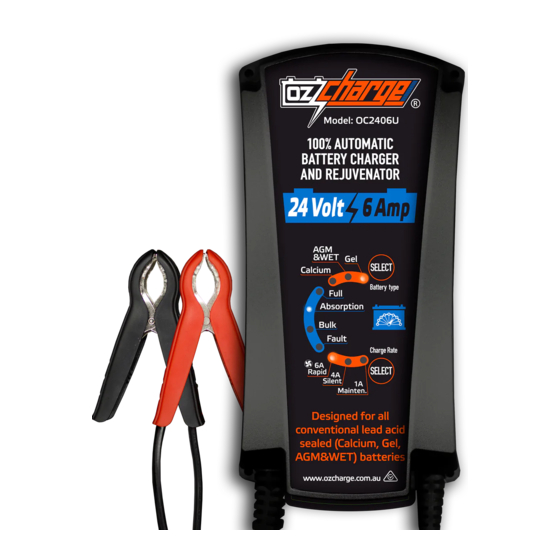

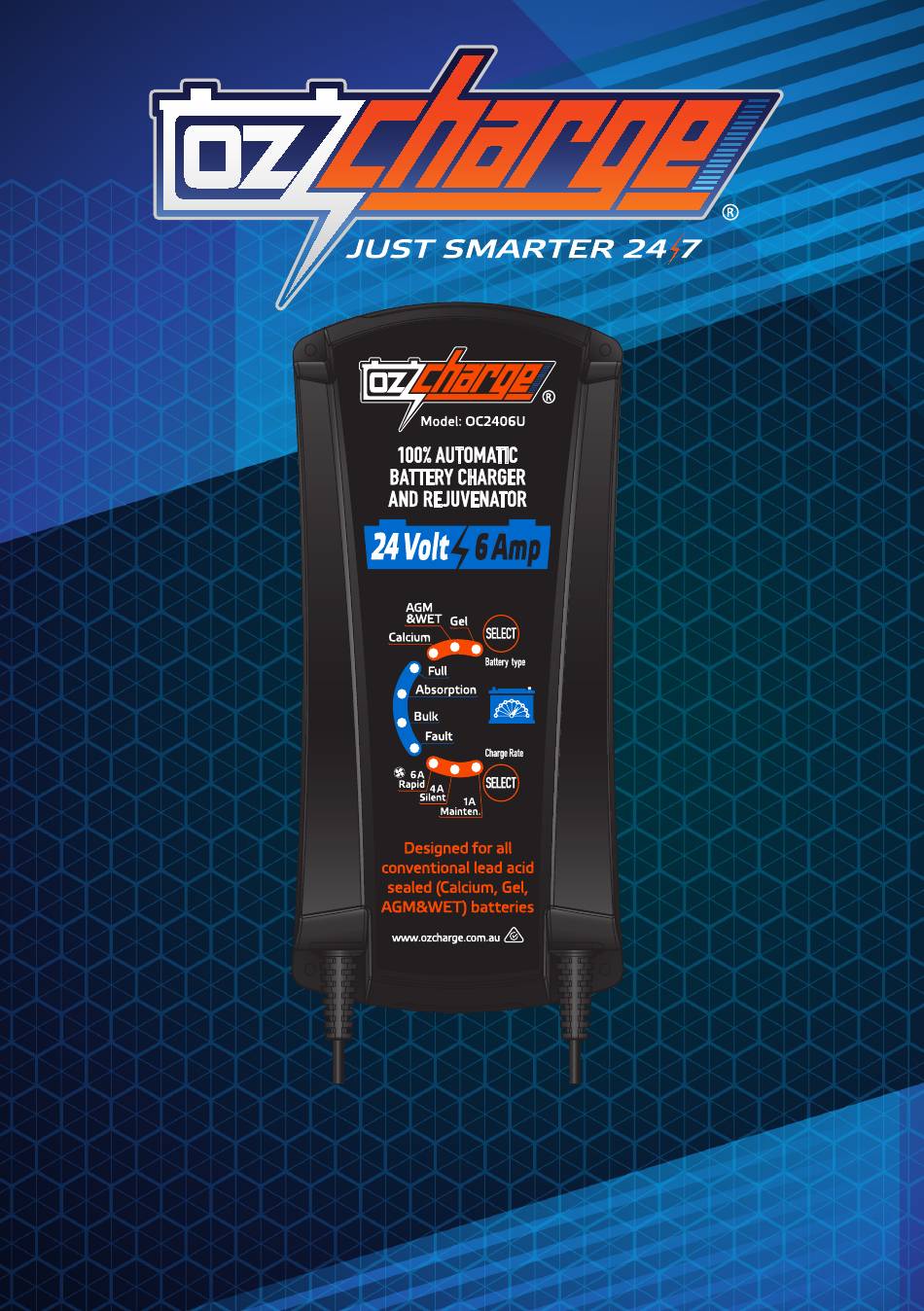

- Page 1 Model: OC2406U OWNER’S MANUAL OWNER’S MANUAL AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED AUSTRALIAN & NEW ZEALAND STANDARD AS/NZS 60335.2.29 APPROVED...
-
Page 2: Important Safety Advice And Warnings
Congratulations on purchasing an Oz Charge fully automatic switched mode 24 Volt battery charger, maintainer and rejuvenator. Please take the time to carefully read and understand this manual before using this product. IMPORTANT SAFETY ADVICE AND WARNINGS • The charger is designed to charge and maintain conventional lead-acid batteries only. - Page 3 • Silent Charge Mode: Charges at a slightly reduced charge rate so the cooling fan is not required. • Maintenance Mode: Ideal and recommended for long term maintenance charging or for charging smaller batteries. 2 • Oz Charge manual www.ozcharge.com.au...
-
Page 4: Temperature & Safety Protection
• ECO MODE: This Oz Charge battery charger has a built in ultra low power consumption circuit. If AC power is connected and the battery is disconnected, after 10 seconds the charger will automatically go into an ECO mode. During this mode the power drawn is less than 0.36W which totals 0.01kWh per day power consumption. -
Page 5: Charging Instructions
Battery Type and Charge Rate settings you will use. • Ensure the battery is in a well ventilated area and the charger should be as far away from the battery as the cables permit. 4 • Oz Charge manual www.ozcharge.com.au... - Page 6 For Example do not charge a Gel Battery on the Calcium Battery Type setting as this may damage your battery and / or reduce your battery life. Note: If the Fault Indicator LED illuminates Red, please check your connections as it’s likely that the Positive and Negative Leads are reversed. 5 • Oz Charge manual www.ozcharge.com.au...
-
Page 7: The Charging Process
8) Float Mode - Full Green LED ON This stage allows you to keep the charger connected 24/7 to ensure your battery is well maintained and kept 100% fully charged. Float mode will maintain the battery at a constant 27.2V. 6 • Oz Charge manual www.ozcharge.com.au... - Page 8 Short circuit/reverse polarity or Rejuvenation failed if Bulk LED also flashing slow Flashing Over temperature protection mode / Soft start charging timed out if Blue Bulk LED also flashing fast / Bulk charging timed out if Blue Bulk LED also ON 7 • Oz Charge manual www.ozcharge.com.au...
- Page 9 8 • Oz Charge manual www.ozcharge.com.au...
-
Page 10: Troubleshooting
REPLACEMENT PARTS For the full range of replacement parts and accessories, please visit our website: www.ozcharge.com.au. / www.ozcharge.co.nz 9 • Oz Charge manual www.ozcharge.com.au... -
Page 11: Year Product Warranty
Outside of Australia: +61 3 9482 2203 Website: www.ozcharge.com.au / www.ozcharge.co.nz If the Authorised Supplier and / or Oz Charge service centre concludes that while under normal use, a product failure or malfunction occurred during the warranty period and was caused by a defect in material or workmanship (see Exclusions), the Customer will be asked to ship to the nearest service point for repair or replacement, at our discretion. - Page 12 SAA Approval No. GMA-102826-EA-003 OC2406U Owner’s Manual: Rev 1.0 - 12/14 - Specifications subject to change without notice.
