All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KDN9172
Summary of Contents for Acnodes KDN9172

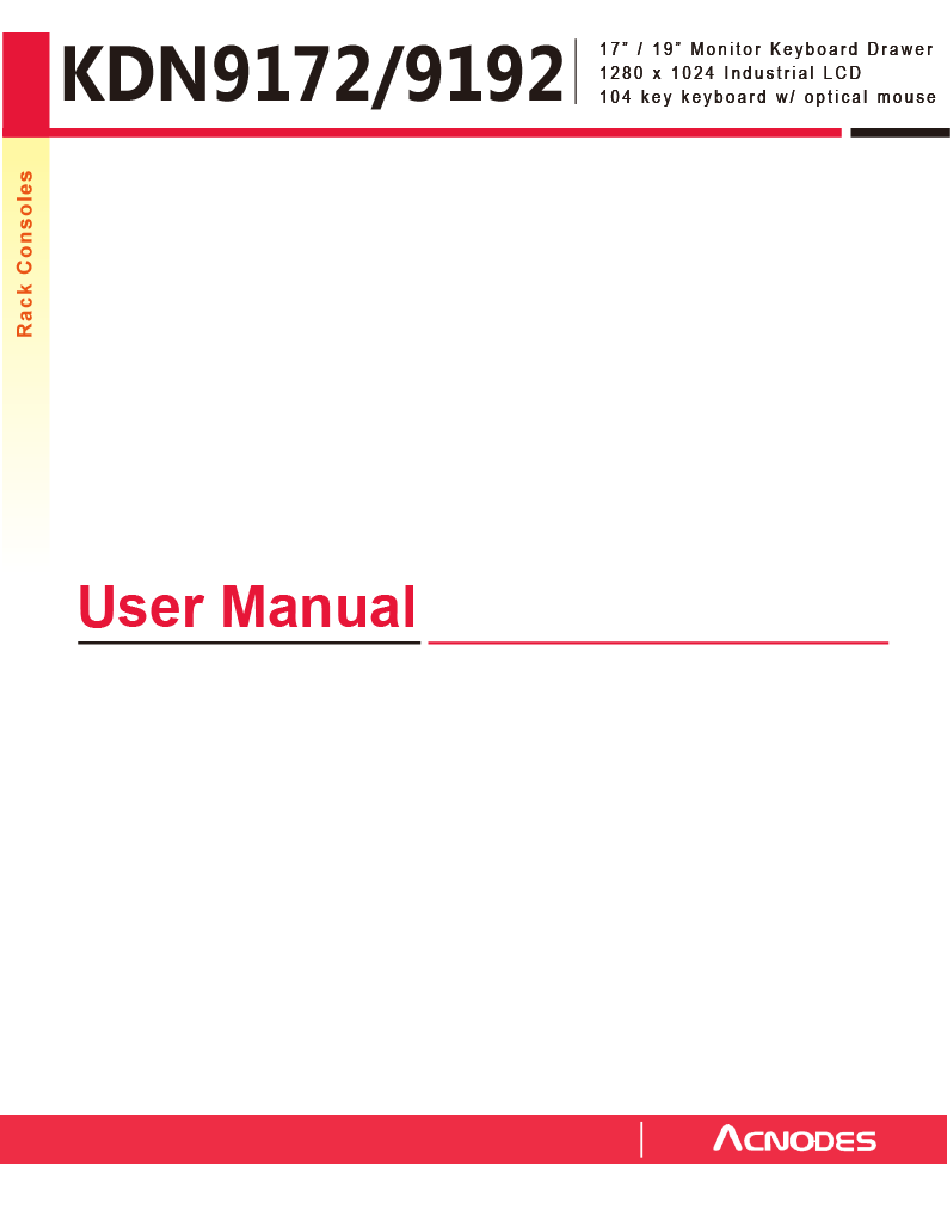

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KDN9172/9192 Package Content Structure Diagram & Dimension P.1 - 2 Installation Connection < Part. 2 > Specifications / OSD Product Specifications P.5 - 6 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.8 - 9 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content KDN 9172 or 9192 unit X 1 - Wired mini USB optical mouse X 1 - 6f t Combo KVM cable X 1 - Pow er c ord X 1 - M6 screw, ca ge nu t & cup washer X 8 The above package content is only for the single console models. - Page 6 Weight Weight 442 x 650 x 44 mm 595 x 860 x 140 mm 15.5 kg 21 kg KDN9172 17.4 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 34 lb 46 lb 442 x 700 x 44 mm 595 x 910 x 140 mm 16.5 kg...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... -
Page 8: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer Combo KVM cab M cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer LCD console drawer Combo Combo KVM cable KVM cable PS/2 console KVM USB console KVM... -
Page 9: Product Specifications
< Part 2 > < 2.1 > Product Specifications KDN9172 KDN9192 Panel Manufactur er Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 10 Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical KDN9192 KDN9172 Specification Product ( W x D x H ) 442 x 650 x 44 mm 442 x 700 x 44 mm 17.4 x 25.6 x 1.73 inch 17.4 x 27.6 x 1.73 inch...
-
Page 11: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard WOM-01 Wired mini USB optical mouse option: WOM -02 Wireless USB optical mouse Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle tim e Software support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac... -
Page 12: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Ente r ke y to select scre en setting options Scroll through menu options and adjust the displayed control Exit the OSD scre en Go back to the pre vious on-screen sub-menu or... - Page 13 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
- Page 14 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, C EA-861-D ) - DVI-D ( DVI-D TMD S s ingle link ) - AV ( S-Vid eo + Compo site, BN C ) - Audio ( 3.5mm audio jack s for au dio in &...
- Page 15 < 3.2 > Options : DC Power Model Input rating Inp ut voltage: 1 2-Volt 24-Volt 48-Volt Inp ut range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Inp ut current - No load 50 mA 50 mA 5 0 mA - Full load 4950 mA 2450 mA...
