Acnodes KDS61 Series User Manual

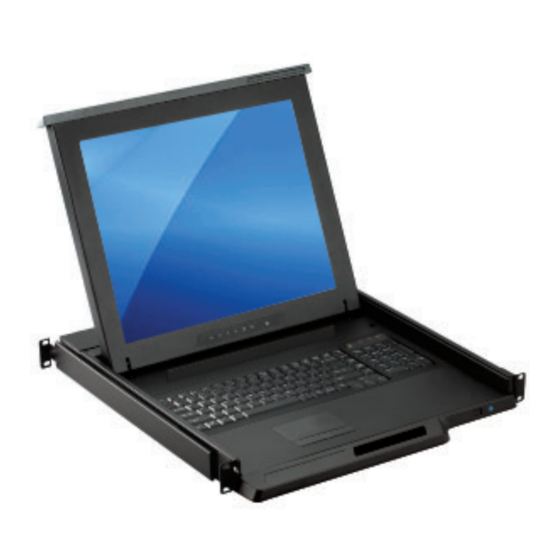

1u 17" / 19" sun lcd console drawer

Hide thumbs

Table Of Contents

Quick Links

Download this manual

KDS61XX

User Manual

For latest product information, please visit Acnodes' website at www.acnodes.com.

14628 Central Ave. Chino, CA 91710

1U 17" / 19" SUN LCD Console Drawer

Supports 1152 x 900 SUN Micro Resolution

VGA + DVI-D Video Input

Tel: 909.597.7588

Fax: 909.597.1939

Table of Contents

Need help?

Do you have a question about the KDS61 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Acnodes KDS61 Series

Page 1 VGA + DVI-D Video Input User Manual All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ website at www.acnodes.com. 14628 Central Ave. Chino, CA 91710 Tel: 909.597.7588 Fax: 909.597.1939...
Page 2 Legal Information First English printing, July 2022 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Page 3: Table Of Contents
Contents KDS6170 / KDS6190 < Part. 1 > Package Content Structure Diagram & Dimension Installation Connection Speciﬁcations / OSD < Part. 2 > Product Speciﬁcations Keyboard / Mouse Speciﬁcations On-screen Display Operation ( OSD ) P.11 < Part. 3 > Options DC Power : 12V / 24V / 48V / 125V / 250V P.13...
Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
Page 5: < 1.1 > Package Content
KDS6170 / KDS6190 < Part 1 > < 1.1 > Package Content KDS6170 or KDS6190 unit X 1 - 6ft DVI-D + USB console cable X 1 ( Alternative : 6ft VGA + USB console cable ) - Power cord X 1 - M6 screw, cage nut &...
Page 6 < 1.2 > Dimension Front View Rear View UNIT : mm DVI-D 1mm = 0.03937 inch AC Input 100~240V Power Side View Top View Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 460 x 44 mm 590 x 808 x 140 mm...
Page 7: Installation
< 1.3 > Installation - Installation Slides Step ■ Insert the left and right rear mounting brackets into the LCD console drawer. Step ■ Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■...
Page 8 < 1.3 > Installation- How to use the drawer ■ Hold the handle and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. After use the drawer Basically, user can push in the drawer back to park position by releasing the left &...
Page 9: Connection
via 6ft DVI-D + USB Console Cable < 1.4 > Connection to USB Server LCD Console Drawer DVI-D AC nput POWER 6ft DVI-D + USB Console Cable USB server DVI-D via 6ft DVI-D + USB Console Cable < 1.4 > Connection to external KVM LCD Console Drawer DVI-D AC Input...
Page 10 via 6ft VGA + USB Console Cable < 1.4 > Connection to USB Server LCD Console Drawer POWER AC nput 6ft VGA + USB console cable USB server via 6ft VGA + USB Console Cable < 1.4 > Connection to external KVM LCD Console Drawer POWER C n ut...
Page 11: Part 2 > Specifications / Osd
< Part 2 > Speciﬁcations / OSD < 2.1 > Product Speciﬁcations KDS6170 KDS6190 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD 1152 x 900 ( Direct ) 1152 x 900 ( Direct ) Display pixel ( dots x lines ) 1280 x 1024 ( Native ) 1280 x 1024 ( Native )
Page 12 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical KDS6170 KDS6190 Speciﬁ...
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Speciﬁ cations S keyboard integrated with touchpad Ca ps Scro ll Comp ose S keyboard integrated with touchpad ■ Incorporates SUN keys, including Stop, Cut, Paste, Compose, Copy and Help ■ 104 key notepad keyboard with full numerical pad and SUN function ■...
Page 14 How to Use "S" Keyboard Num LED in Oﬀ mode Num LED in Green mode Key pad behaves as a SUN Solar Key pad behaves as a normal key system administration command mode pad mode Audio / Display Keys * Please ask your supplier for full details Audio : Mute Display : Degauss Audio : Decrease volume...
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or oﬀ Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
Page 16 Picture Brightness : Adjust the screen brightness Contrast : Adjust the diﬀ erence between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position H-Position : To adjust the horizontal position of the video...
Page 17: Part 3 > Options
< Part 3 > Options < 3.1 > DC Power Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load 50 mA 50 mA...
