All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KDF8170
Summary of Contents for Acnodes KDF8170

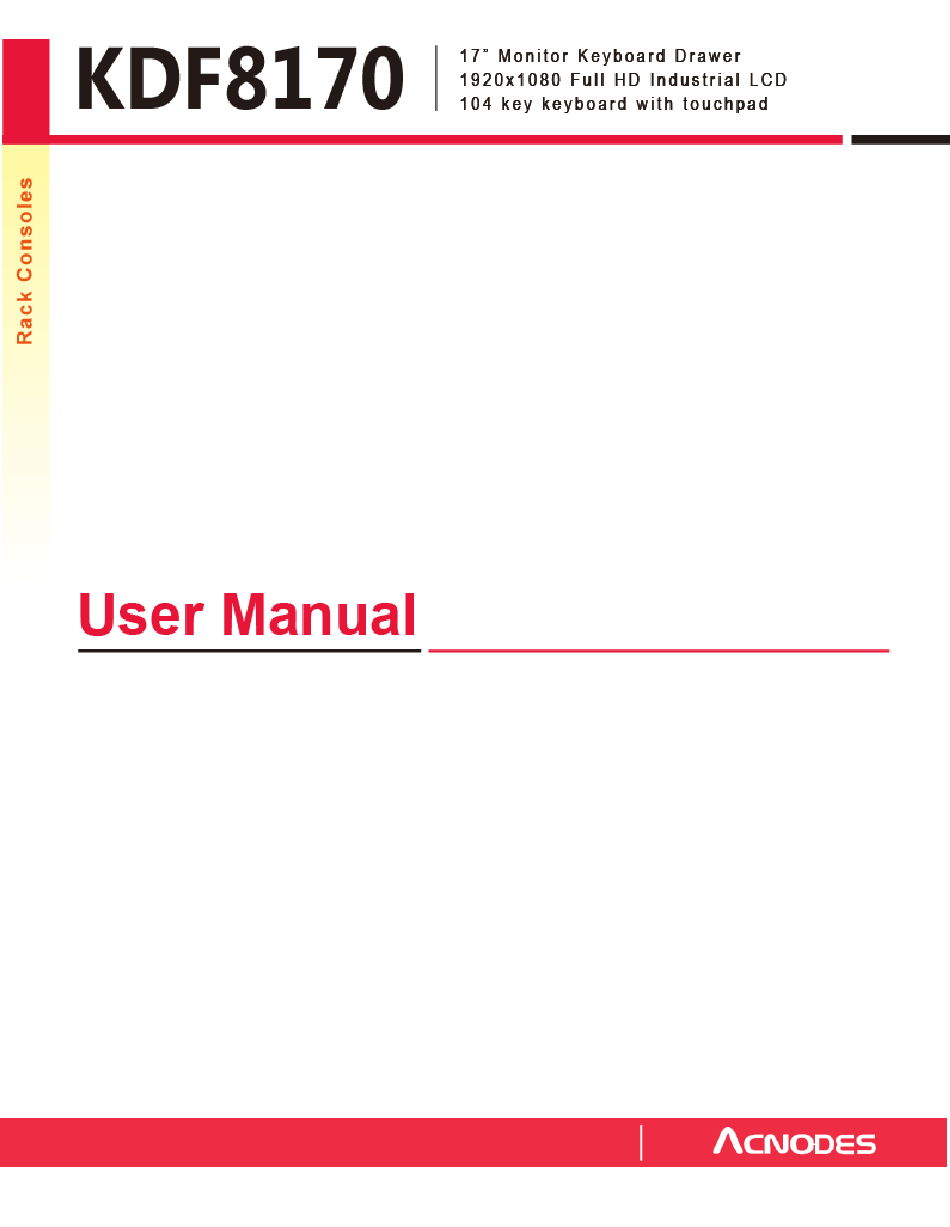

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KDF8170 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection P.6 - 8 < Part. 2 > Specifications / OSD Product Specifications P.9 - 10 Keyboard / Mouse Specifications P.11 - 13 On-screen Display Operation ( OSD ) P.14 - 15... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration.
-
Page 5: Part. 1 > Kdf8170
< Part 1 > < 1.1 > Package Content KDF8170 unit X 1 - 6ft DVI-D console cable X 1 ( Alternative : 6ft VGA console cable ) - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 6 Weight 441.6 x 480 x 44 mm 590 x 823 x 140 mm 15 kg 19 kg KDF8170 23.2 x 32.4 x 5.5” 17.4 x 18.9 x 1.73" 33 lb 42 lb The weight is only for the single console models. It varies with accessories & options...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD console drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post rack brackets. ¦ Insert rear mounting brackets into the LCD console drawer. Option Model : MB-751-12 Step ¦ Align each rear mounting bracket to a suitable length.
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD console drawer.
-
Page 10: Connection
USB Server < 1.4 > Connection to via CX-6 cable LCD Console Drawer Power HDMI DVI-D KVM CX-6 DVI-D console cable VI-D USB server < 1.4 > Connection to via CX-6 cable external KVM LCD Console Drawer Power HDMI DVI-D KVM CX-6 DVI-D console cable DVI-D... - Page 11 USB Server < 1.4 > Connection to via CB-6 cable LCD Console Drawer HDMI DVI-D KVM CB-6 VGA console cable USB server < 1.4 > Connection to external KVM via CB-6 cable LCD Console Drawer HDMI DVI-D KVM CB-6 VGA console cable USB console KVM Caution :...
- Page 12 < 1.4 > Connection to via *HDMI cable (Option) HDMI Device LCD Console Drawer HDMI DVI-D KVM HDMI cable USB server * HDMI cable is not provided. Caution : The LCD console drawer is hot-pluggable, but components of connected devices, such as the servers and KVM switch, may not be hot-pluggable.
-
Page 13: Product Specifications
< Part 2 > < 2.1 > Product Specifications Panel Size ( diagonal ) 17.3-inch Widescreen TFT color LCD Panel Display pixel ( dots x lines ) 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ. ) 600:1 Color 1.07 Billion, 10-bit Viewing Angle ( L/R/U/D ) - Page 14 Regulatory Safety Approval FCC & CE Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 441.6 x 480 x 44 mm Specification 17.4 x 18.9 x 1.73 inch...
-
Page 15: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with trackball Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts America... - Page 16 < 2.2 > MAC Keyboard / Mouse Options MAC keyboard integrated with touchpad MAC keyboard integrated with trackball Supporting layouts America United States How to Use "MAC" Keyboard Keyboa rd Features Decrease display brightness Fast-forward Increase display brightness Mute sound Mission control * Only works with OS X Lion Decrease volume...
- Page 17 < 2.2 > SUN Keyboard / Mouse Options S keyboard integrated with touchpad S keyboard integrated with trackball N um C ap s S cr o l l C om p ose N u m C a ps Sc r o l l C o m p os e S keyboard integrated with touchpad / trackball ¦...
-
Page 18: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu... - Page 19 < 2.3 > On-screen Display Operation ( OSD ) Auto adjust : Automat ically adjust sizes, centers and fine tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
-
Page 20: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 2.4 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 2.4.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu > MISC > PIP Mode > Large / Small / OFF Main screen Sub screen Position... - Page 21 < 2.4.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu > MISC > PIP Mode > PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080 955 x 716...
-
Page 22: Part. 3 > Options
<Part 3> < 3.1 > Options : - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For audio option, casing depth will be changed from 480mm ( 18.9" ) to 530mm ( 20.9" ) Power HDMI DVI-D...
